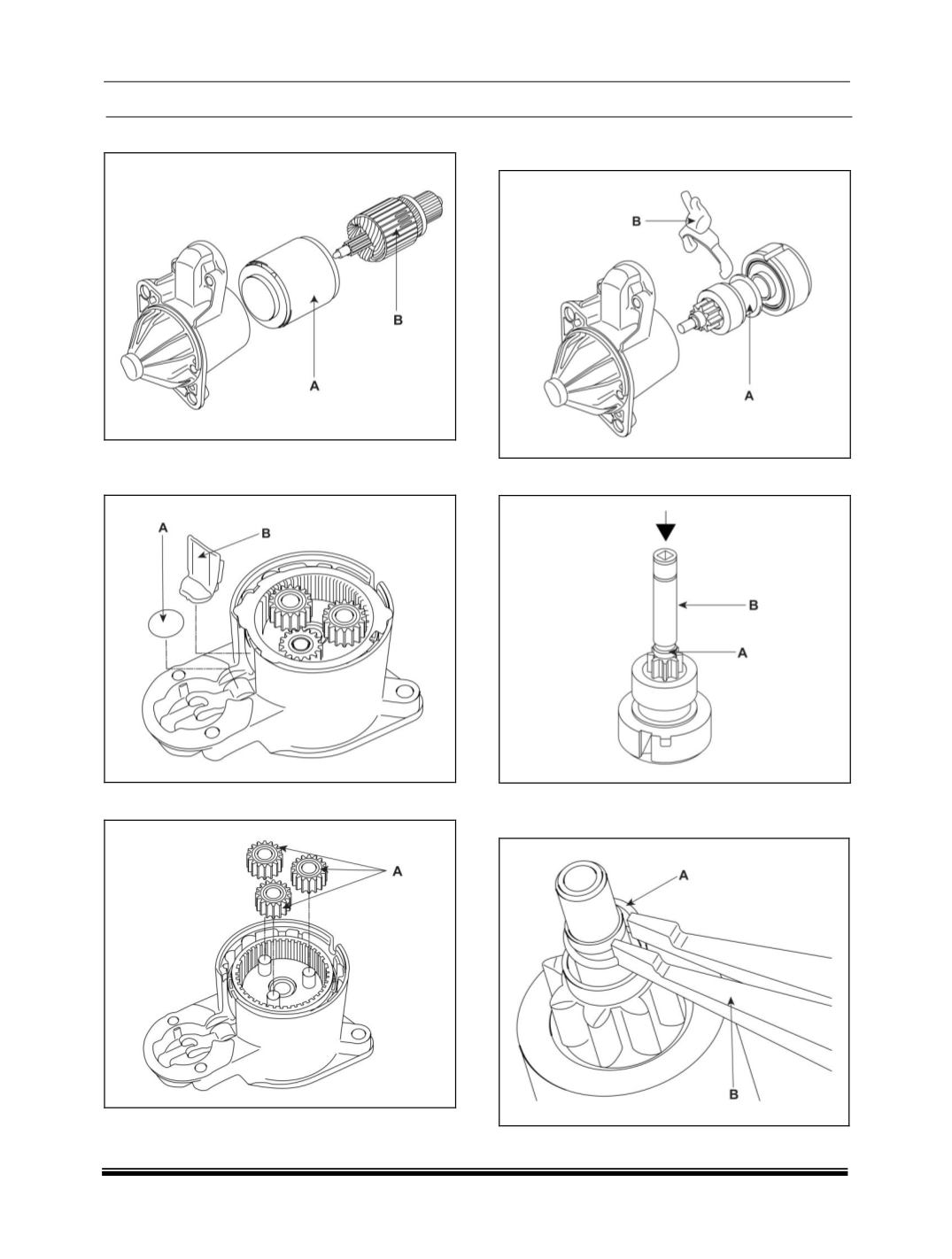

5. Remove the yoke (A) and armature (B).

6. Remove the lever plate (A) and planet shaft

packing (B).

7. Disconnect the planet gear (A).

8. Disconnect the planet shaft assembly (A) and

lever (B).

9. Press the stop ring (A) using a socket (B).

10.After removing the stopper (A) using stopper

pliers (B).
