HEXA

ELECTRICAL

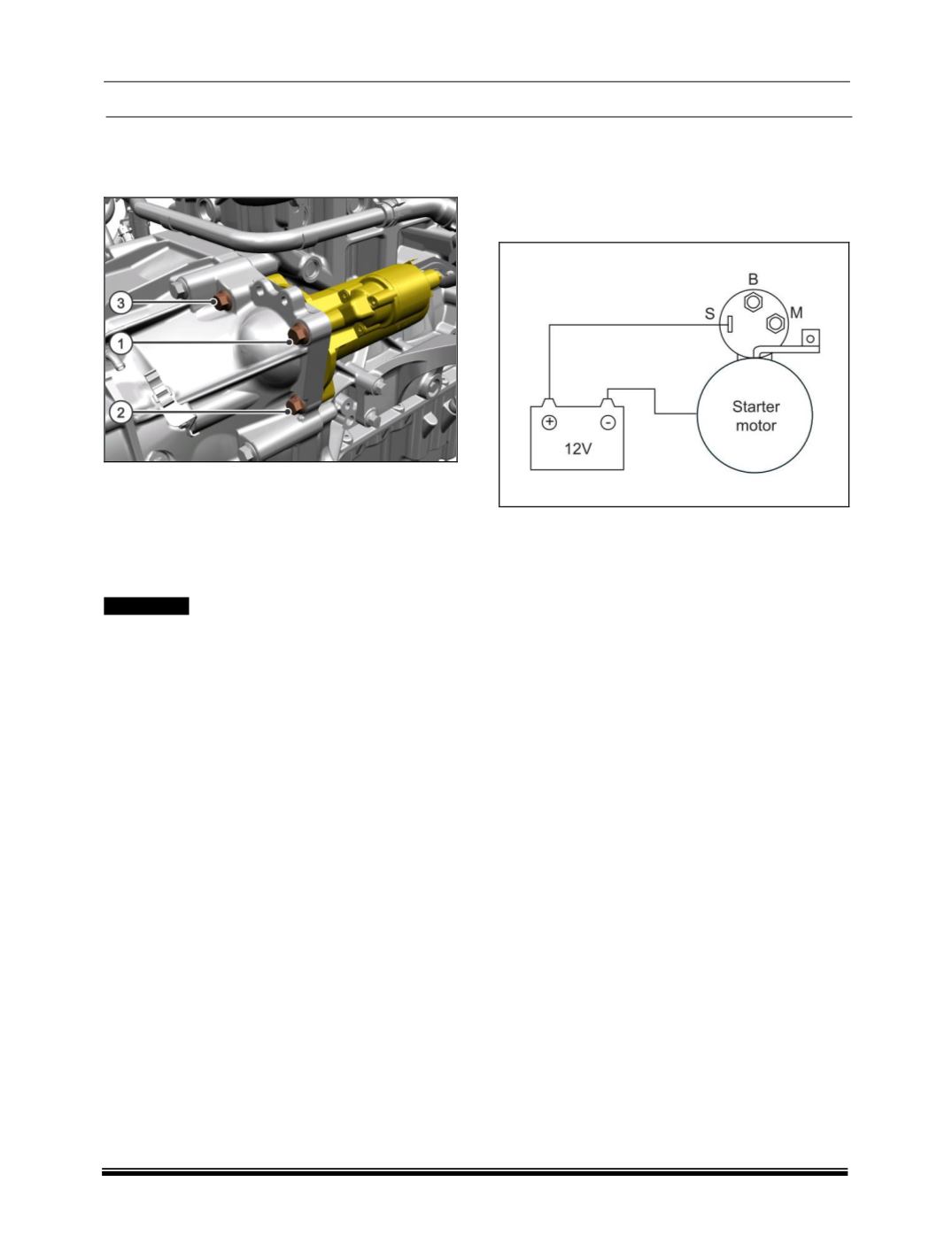

REFITMENT:

1.Match the dowel with corresponding hole on the

clutch housing.

2.Fit the three mounting bolts and tight with

specified torque and sequence/order. (

Refer

above given fitment detail figure for tightening

torque)

3.Connect the electrical connection of the starter

motor.

! CAUTION:

Tighten all the mounting bolts of starter motor in

given order with desired torque. Do not exceed

torque value, it will result in damage.

STARTER SOLENOID TEST

1. Disconnect the field coil wire from the M-

terminal of solenoid switch.

2. Connect a 12V battery between S-terminal and

the starter body.

3. Connect the field coil wire to the M-terminal.

CAUTION

This test must be performed quickly (in less than

10 seconds) to prevent the coil from burning.

4. If the pinion moves out, the pull-in coil of

solenoid is working properly.

If the pinion does not move, replace the solenoid.

5. Disconnect the field coil wire from the M-

terminal.

6. If the pinion has moved out, the hold-in coil of

the solenoid is working properly. If the pinion

moves in, replace the solenoid.
