ELECTRICAL

38

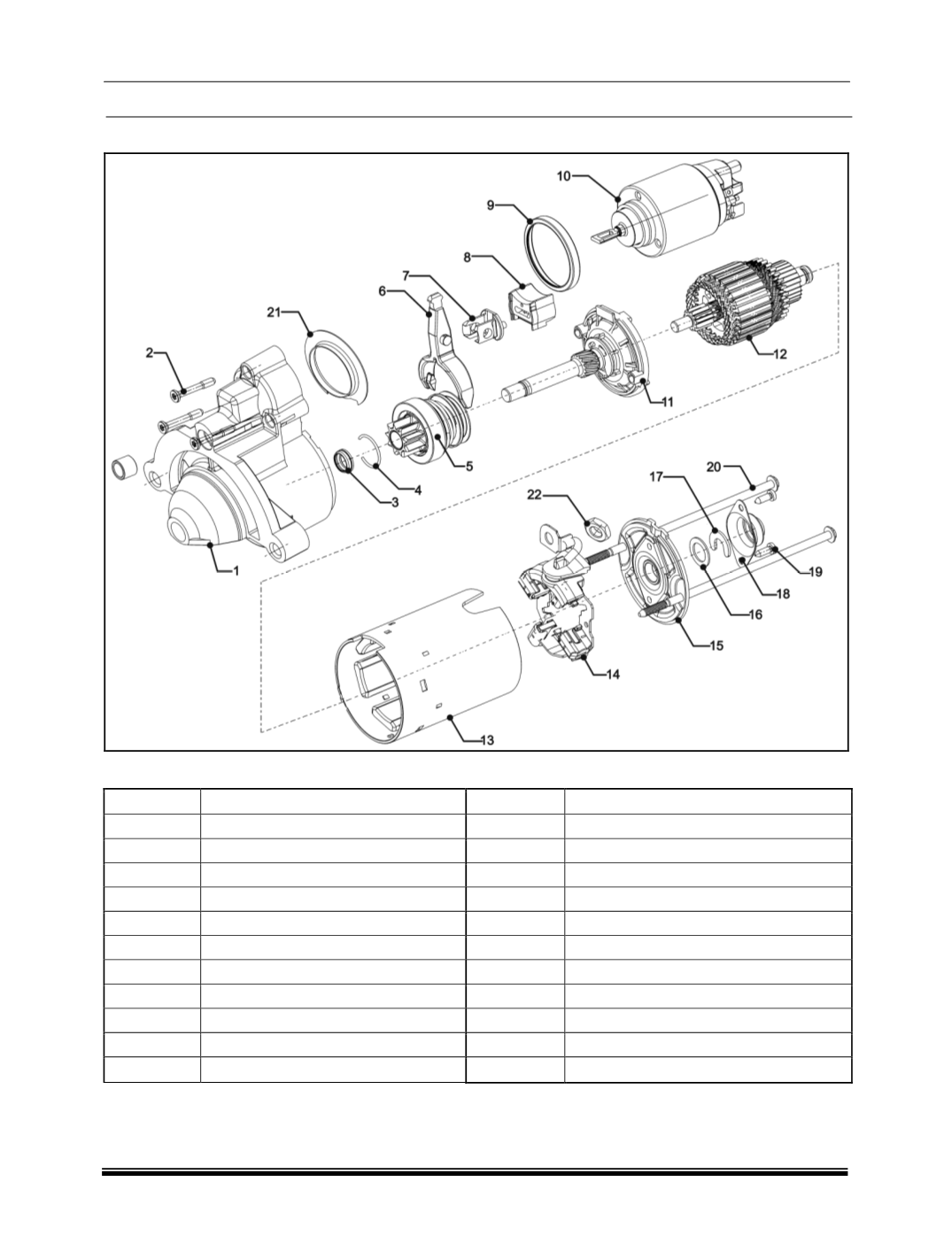

EXPLODED VIEW:

PART LIST:

.

DESCRIPTION

.

DESCRIPTION

1

Drive End Shield

12

Armature

2

Counter Sunk Screws

13

Stator Frame

3

Retainer

14

Brush Holder

4

Stop Ring

15

Commutator End Shield

5

Over Running Clutch Drive

16

Shim

6

Fork Lever

17

Retaining Washer

7

Bearing Pedestal

19

Closure Cap

8

Seal

18

Screw

9

Seal Ring

20

Hexagon Screw

10

Solenoid Switch

21

Cover Disc

11

Epicycloidal Gear Train

22

Hexagon Nut
