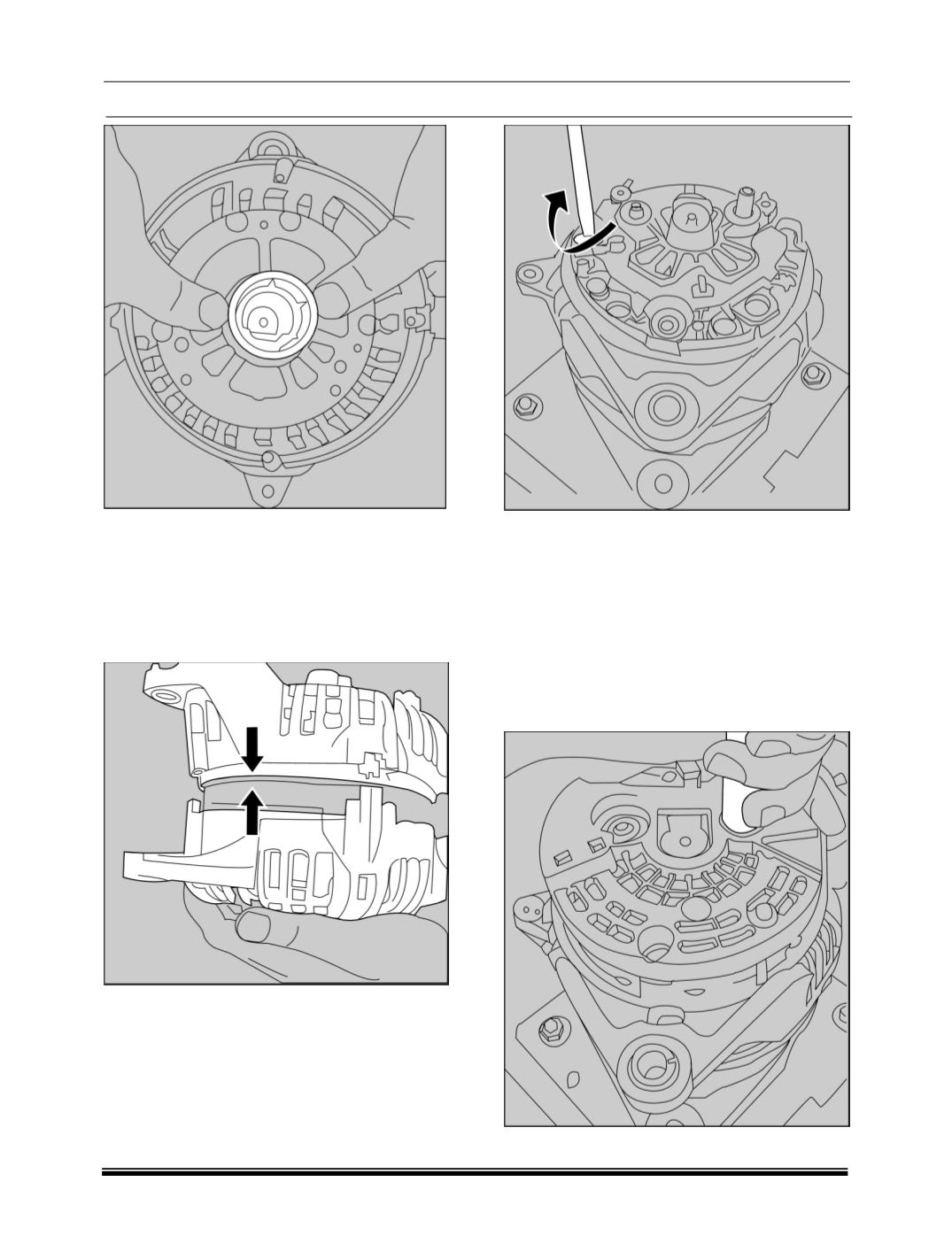

3.4 SREC assembly with DEF:

Align the marks previously made and insert the

stator winding into the drive end flange. Align the

marks and fit the slip ring end cover on the stator

winding in such way that six stator winding leads

pass through appropriate holes on the slip ring

end cover. Tighten the screw.

3.5 Rectifier Assembly:

Fit the rectifier on the slip ring end shield ensuring

that the six ends of the stator winding pass

through the appropriate plating sleeves of the

rectifier. Solder the six stator winding ends on to

the rectifier at the specific points. Fasten the

rectifier on the slip ring end shield with two

screws.

3.6 Regulator assembly:

Install the voltage regulator on the slip ring end

shield by carefully inserting the carbon brushes

through the opening of the fitting ring. Tighten the

screws. Connect the rectifier and the regulator

using the screws.

3.7 Protection Cap Assembly:

Place the protection cap on the rectifier tighten

the hexagonal nuts and the screw.
