HEXA

ELECTRICAL

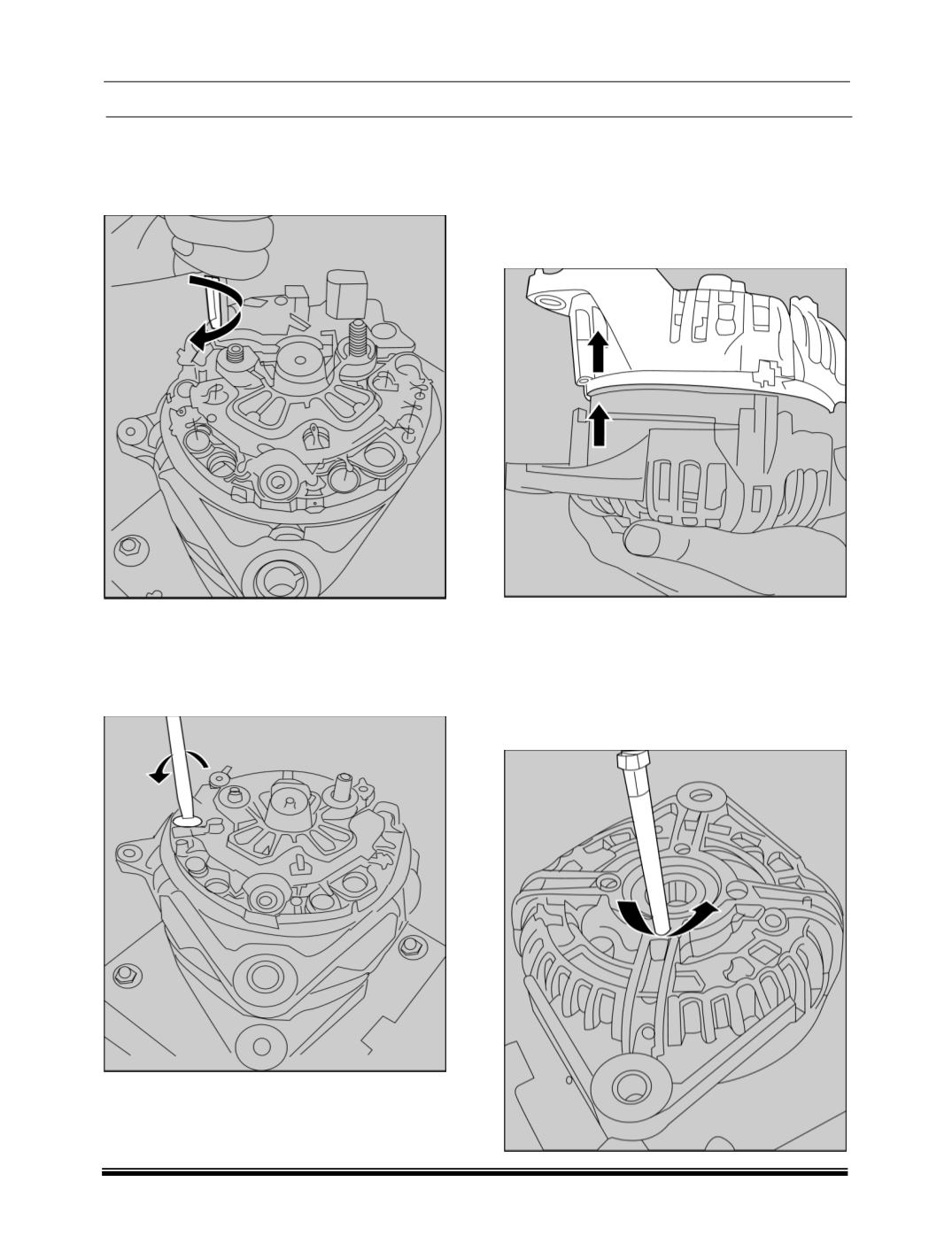

1.4 Dismantling of Regulator

Unscrew the two screws and carefully take out the

voltage regulator, taking care not to damage the

carbon brushes.

1.5 Dismantling of Rectifier:

For removal of rectifier, it is essential to desolder

the six stator winding ends from it. After de-

soldering the winding ends, unscrews to take out

the rectifier.

1.6 Dismantling of DEF, Stator, and SRES:

Mark the relative positions of the drive end flange

(DEF),

the stator and slip ring end shield

(SRES)

with respect to each other using a marker.

Remove the four screws. This will facilitates

dismantling of these three components. Pull off

the fitting ring from the SRES.

1.7 Dismantling of DEF

(Drive end flange

assembly)

Unscrew the four counter sunk screw, remove the

cover plate. Examine the ball bearing for

excessive play. If the play is noticeable press out

the bearing using an Arbor press and a suitable

mandrel.
