HEXA

REAR AXLE

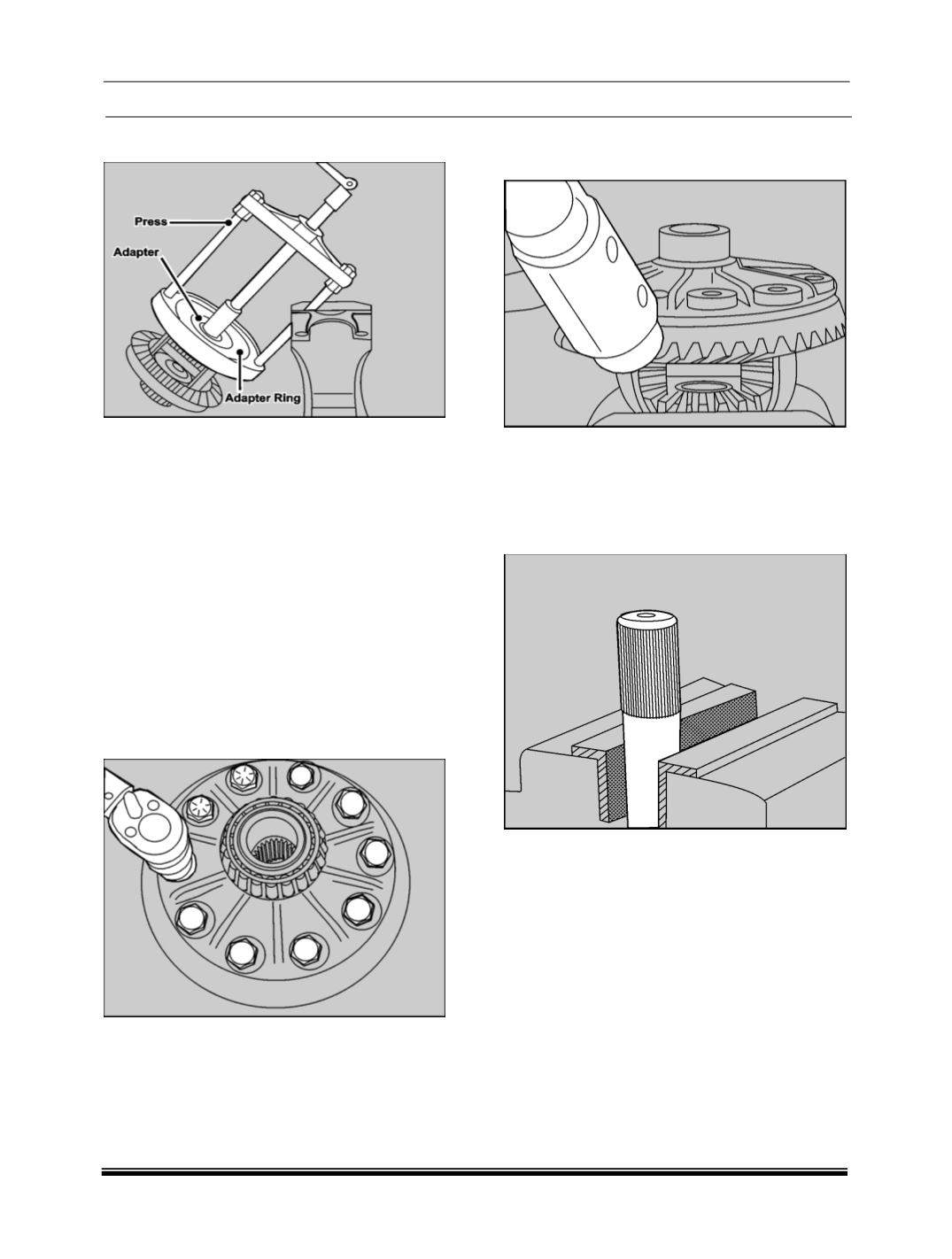

b. Press

(Part No. 289458903519)

5. Identify shims and side bearings on both sides.

The shims are not interchangeable during

assembly.

NOTE

If shims are damaged, replace with new shims

during assembly.

6. Reposition case in press

(Part no.

289458903519)

and remove side bearing cone

on the other side in same manner.

NOTE

It is always preferred to replace side bearings

once pulled out. But one can confirm free rolling of

bearings and reuse it, if they are defect free.

7. Open lock strap strips with help of punch and

remove ring gear screws. Remove ring gear.

8. If required tap ring gear with a mallet to free it

from case.

NOTE

Discard ring gear screws and replace with new

ones.

9. Clamp anyone

(LH/RH)

of axle shafts in vice

firmly.

CAUTION

Vice jaws should not locate on axle splines or any

machined surfaces.

10.Install differential case on axle shaft.
