HEXA

REAR AXLE

NOTE

At the spline end of pinion, there is a collapsible

spacer. Discard the same and use new one during

assembly

17.Collect shims and keep them together.

Replace shims if found damaged.

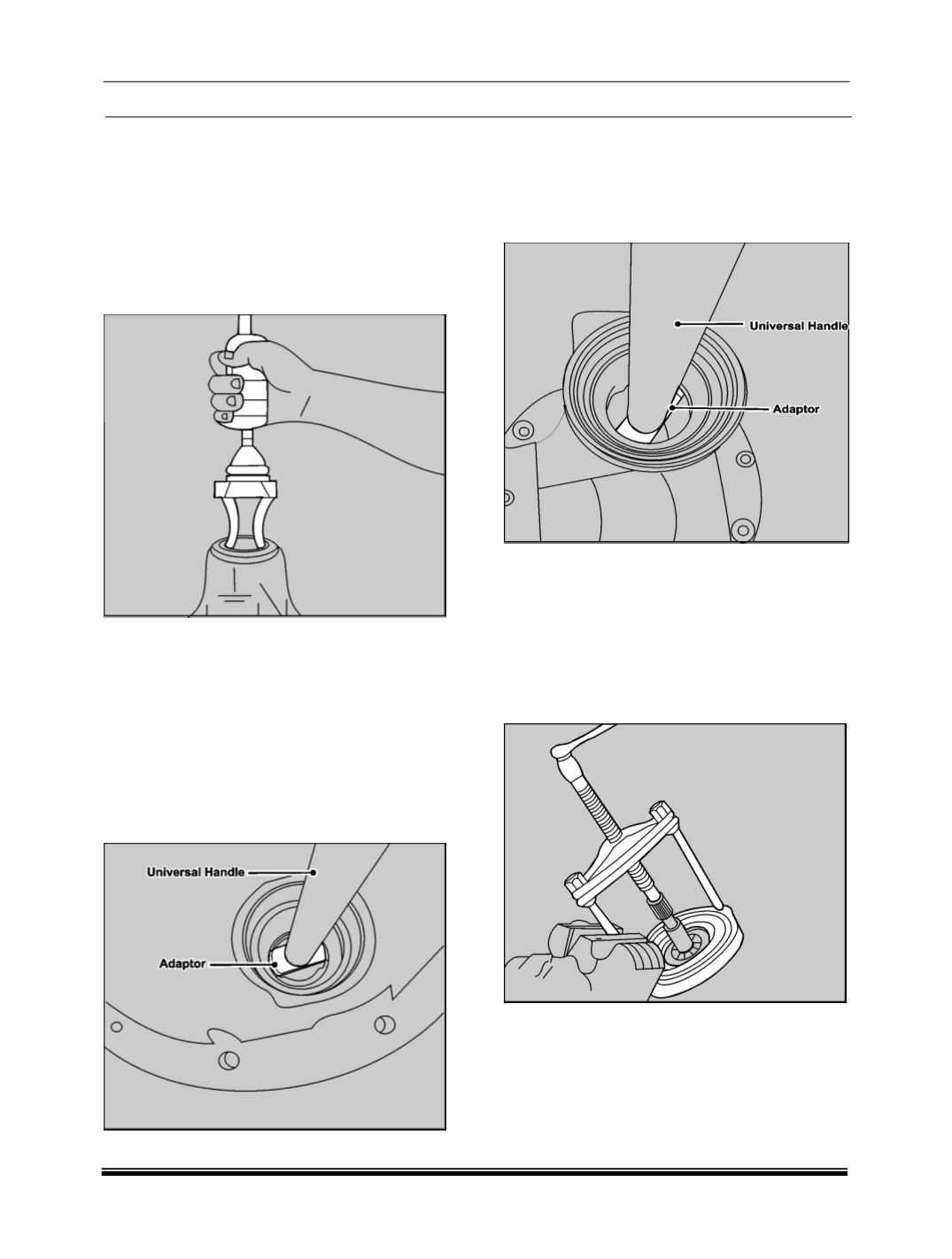

18.Pullout pinion oil seal with puller slide hammer

(Part No. 289458903516)

NOTE

Discard the oil seal and use new one at the time

of assembly.

19.Remove bearing cone and outer thrust washer.

20.Turn nose of carrier down. Remove outer

pinion bearing cup using tools given below:



Adaptor outer pinion bearing cup along with

baffle

(Part No. 289458903512).



Handle

(Part No. 289458903501).

21.Turn nose of carrier up and remove inner

pinion bearing cup using tools given below:



Adaptor rear pinion bearing cup

. (Part No.

289458903513).



Handle

(Part No. 289458903501).

NOTE

Pinion depth shim is located between inner pinion

bearing cone and pinion gear.

22.Remove inner pinion bearing using tools:



Press

(Part No. 289458903519).



Adapter, rear pinion bearing cone.

(Part No.

289458903511).

WARNING



Do not allow gear to fall. It may cause serious

injuries.



Gear teeth may have sharp edges. Handle

with care to avoid any cutting.
