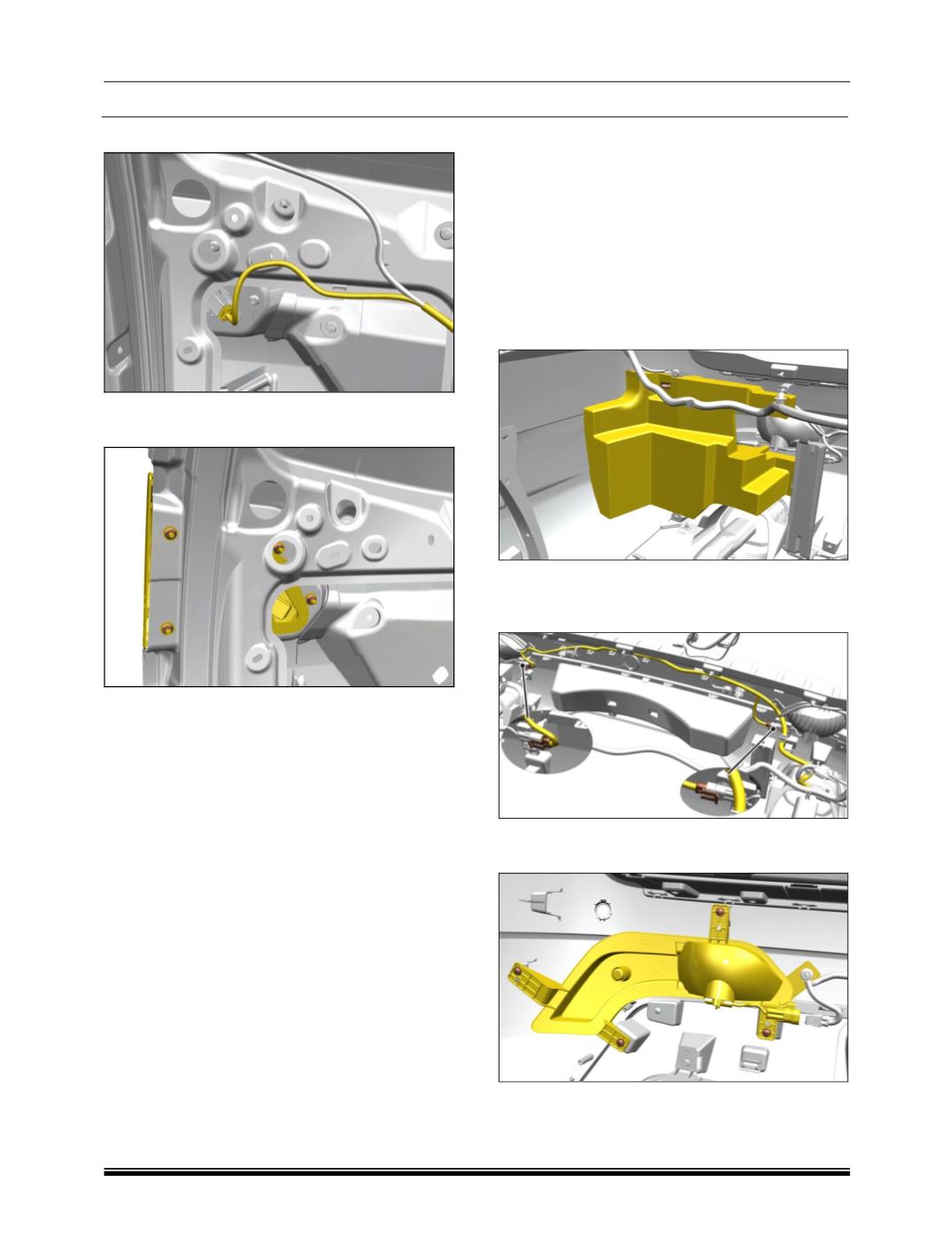

3. Disconnect the Electrical connection.

4. Remove the four mounting nut of lamp from

behind the Tailgate.

5. Pull out the lamps from its location in forward

direction.

6. Take out the lamp.

REFITMENT:

1. Connect the electrical connection.

2. Align the Lamp with its mounting locations on

panel.

3. Tighten its four mounting location with Nuts.

Tightening Torque for the nut is 0.45 – 0.65 kgf-m.

III.Rear Fog/Reverse with Reflex Lamp

The Lamp is mounted in the lower part of the Rear

Bumper. The Bulb used for the Rear Fog lamp

function is PR21W Bulb 12V 21W and Reverse

lamp function is P21W Bulb, 12V 21W.

REMOVAL:

1. Remove the Rear Bumper (Refer Body Section)

2. Remove the energy absorber rear from the

vehicle by removing clip metal of energy

absorber.

3. Disconnect the Electrical connections of Rear

Fog Lamp (RH Side) and Reverse lamp (LH

Side)-For RHD Vehicle.

4. From back side of bumper remove the four

mounting screws of Lamp assembly.
