HEXA

ELECTRICAL

REFITMENT:

1. Tighten the two mounting screws of high

mounted stop lamp.

Tightening torque of screws is 0.45 – 0.65 kgf-m

2. Connect the electrical connection.

3. Fit the upper tailgate trim.

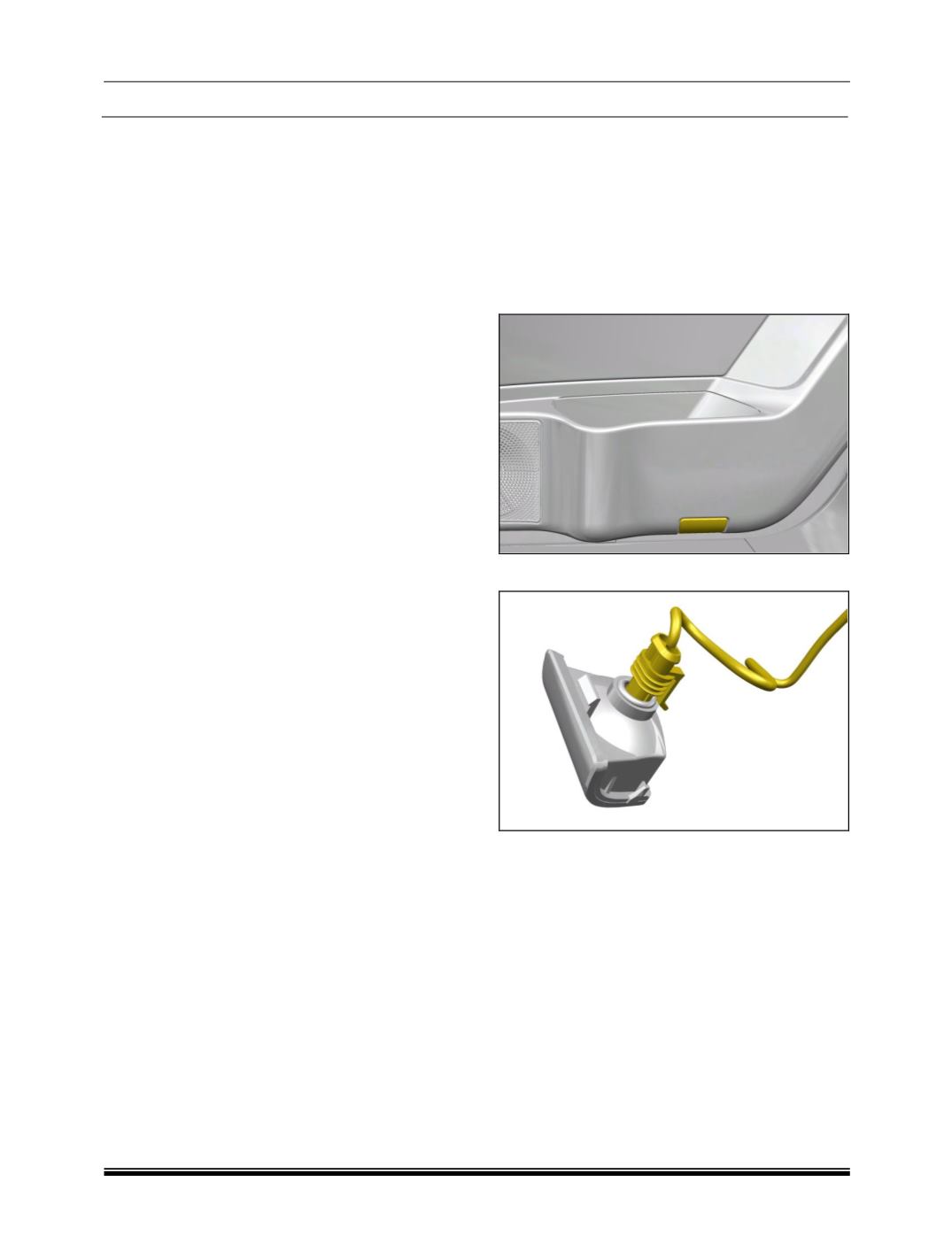

8.4.10 DOOR AJAR CUM PUDDLE LAMP

It consists of bulb of ratting 12V, 5W. The door ajar

lamp is fitted on door trim.

NOTE:

Same procedure is applicable for all door

lamps.

REMOVAL:

1. Pry out the lamp from the cutout provided on

the door trim.

2. Disconnect the electrical connection.

3. Take out the bulb with holder.

REFITMENT:

1. Connect the electrical connection.

2. Fit the lamp into the cutout provided on the door

trim. (

snap fitted

)
