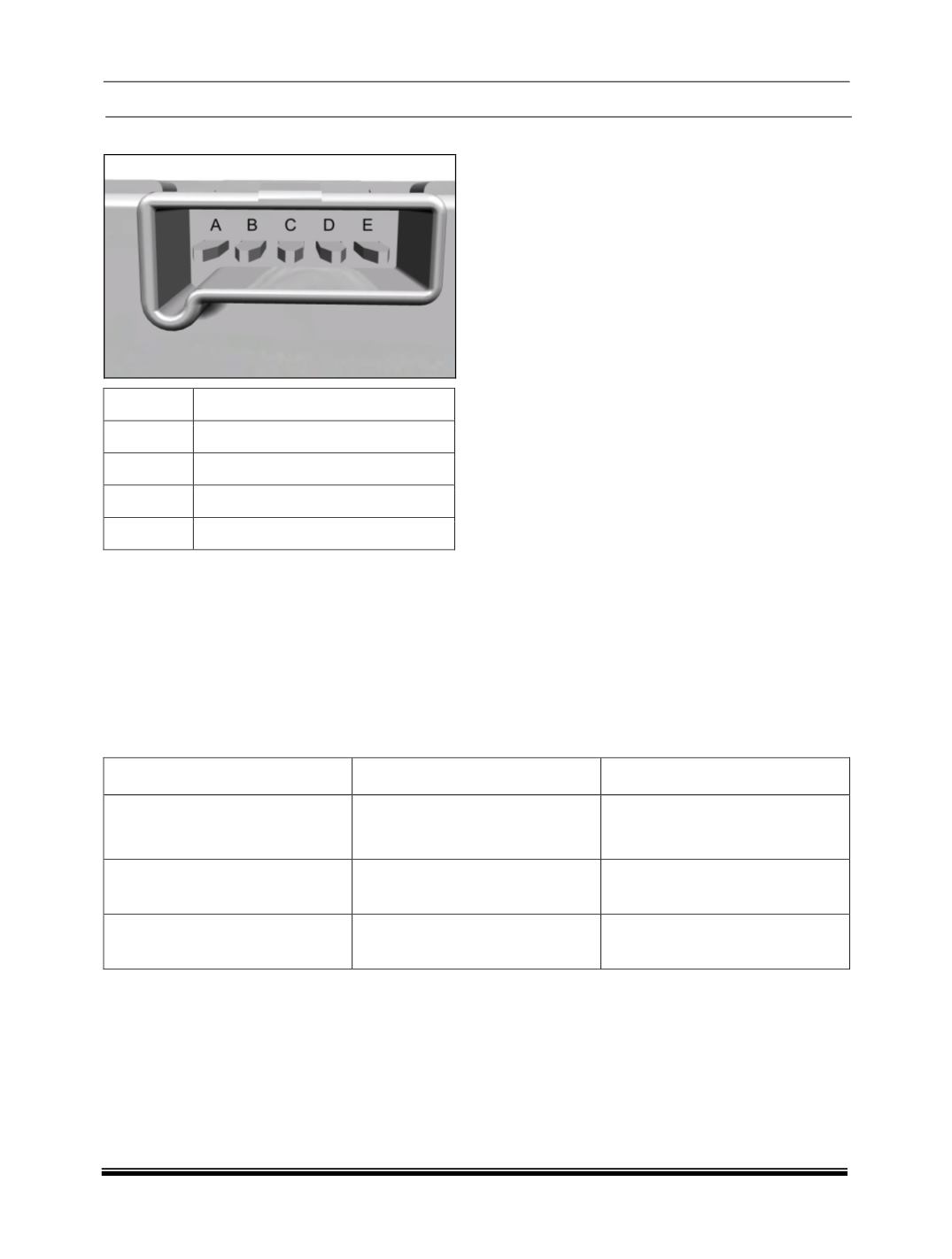

PIN OUT

Ground

Signal

Battery

Motor Negative

Motor Positive

NOTE

For removal refer On vehicle repairs in HVAC sec-

tion.

INSPECTION

Check output from Control panel using Diagnostic

Tool.

TROUBLE SHOOTING

Current drawn by the blower in speed 7 should be between 21 – 25A.

SYMPTOMS

CAUSES

REMEDIES

Blower running only in full speed. LPM faulty or not connected

properly.

Check LPM connector.

Replace LPM if found faulty.

Blower not running.

LPM has shutdown due to over-

heat.

Check for any obstruction for

blower rotation.

Blower not responding.

No output from Control panel.

Check output from Control panel

using Diagnostic Tool.
