8.5 HORN

The vehicle is equipped with a horn system

consisting of a low tone horn and high tone horn.

The horns are operated by pressing the sides of

the steering wheel cover

(around the Air Bag)

with

the horn symbol. The horns are activated through

a relay located in the engine compartment fuse

and relay box. The circuit is protected by a

dedicated fuse. The horns are always enabled for

safety reasons even with the ignition OFF or the

key is extracted.

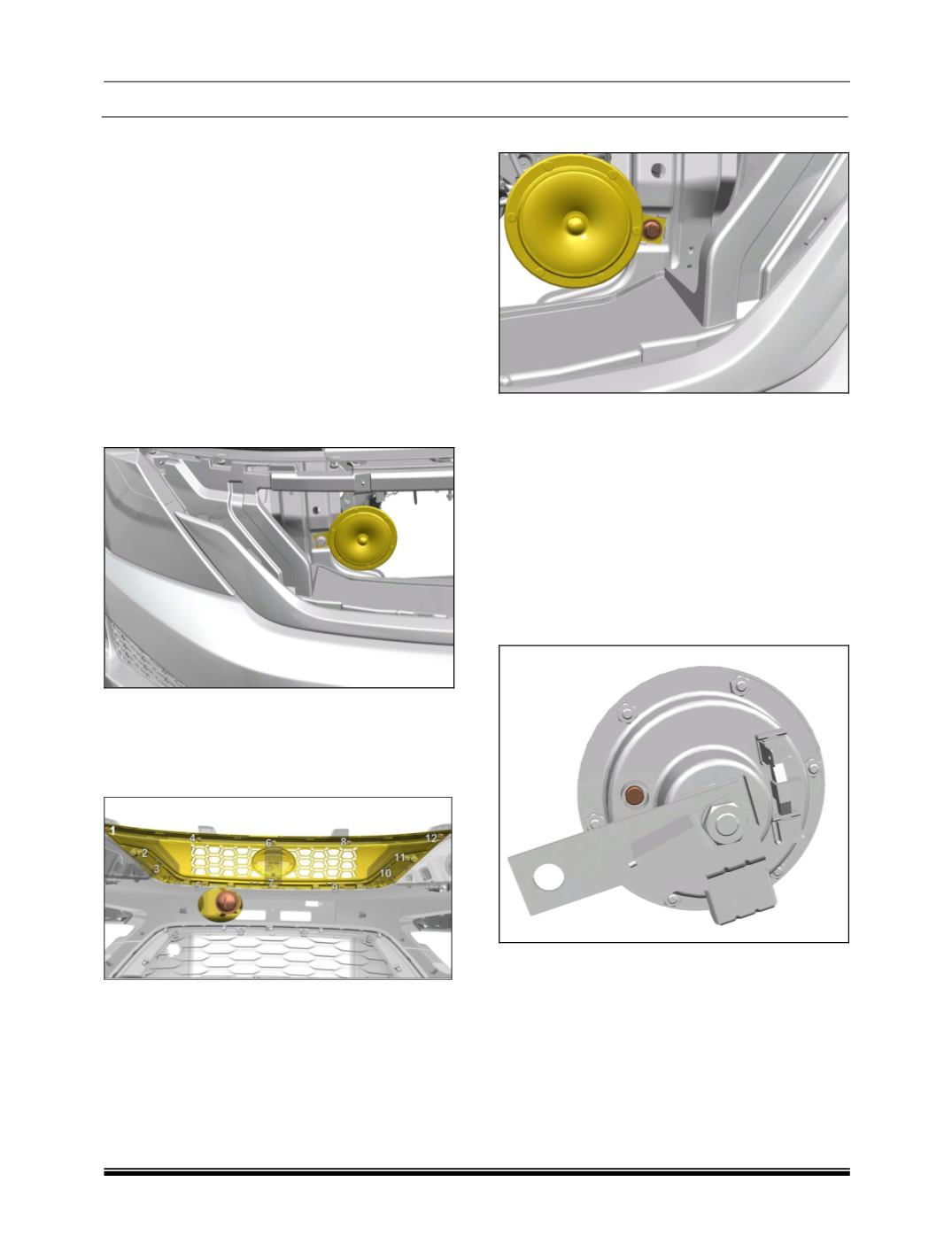

LOCATION:

High tone horn is located on RH side of radiator

member vertical support and low tone horn is

located on LH side of radiator member vertical

support.

REMOVAL:

1. Open the bonnet.

2. Remove Grill from the bumper by removing the

twelve screws on inner side of the bumper.

3. Remove the one mounting bolt of the horn.

4. Disconnect electrical connection.

5. Take out the horn.

INSPECTION:

Connect the positive terminal of the horn to battery

(+) and negative terminal to battery (-). If a clean

and sharp sound is heard, then horn is OK. If no

sound is heard, check continuity of the horn coil

using a multimeter.

If the coil is OK, check the settings of the setting

screw. Adjust the setting screw till clean and sharp

sound is heard.

REFITMENT:

1. Align the horn to match mounting hole on

assembly vertical support radiator member

against weld nut and fit one mounting bolt with

a washer.

Tightening torque for bolt – 0.95 Kgfm

2. Connect the electrical connection.
