ELECTRICAL
63

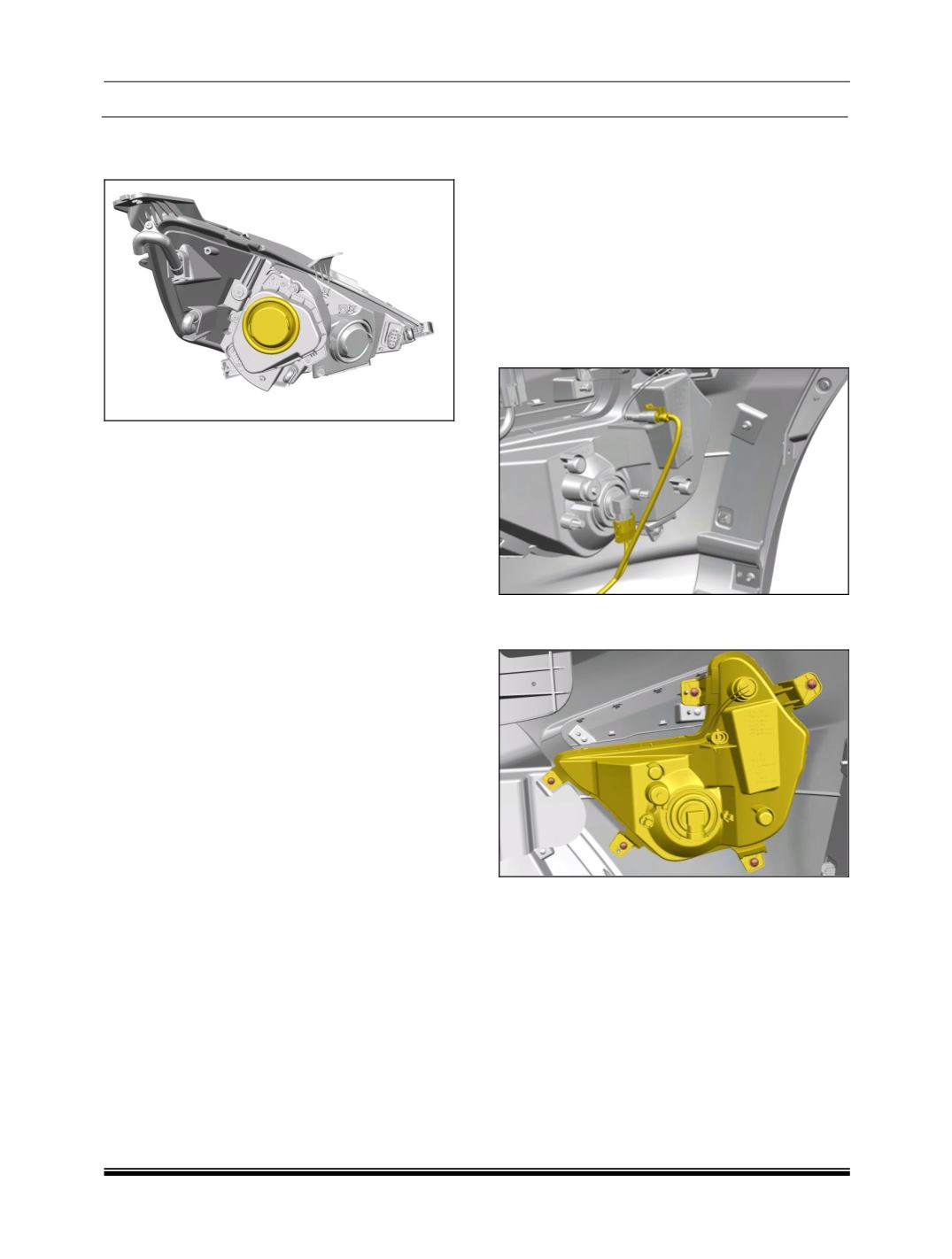

LOW BEAM (
H7,12V , 55W
):
1. Remove the rubber Dust Cap.
2. Disconnect the electrical connection.
3. Release the Retainer-bulb spring.
4. Remove the bulb and replace with new one.
5. Lock the retainer bulb spring to it position.
6. Connect the electrical connection.
7. Fit the rubber dust cover.
8.4.5 FRONT FOG LAMP WITH DRL
The fog Lamp with DRL is mounted in the lower
part of the Front Bumper. The Bulb used for the
Fog lamp function is H8 Bulb, 12V 35W. Fog Lamp
on/off is done by using master light switch. DRL is
LED Type Lamp.
REMOVAL:
1. Remove the Front Bumper (Refer Body
Section)
2. Disconnect the Electrical connection of Fog
Lamp and DRL.
3. From back side of bumper remove the five
mounting screws of Lamp assembly.
4. Take out the lamp.
REFITMENT:
1. Fit the Lamp in the cut out on the Bumper.
2. Tighten the five mounting screws of lamp
assembly.
3. Tightening Torque for screws- 0.45 – 0.65 kgf-
m
4. Connect the Electrical connections.
5. Fit the Front Bumper.
