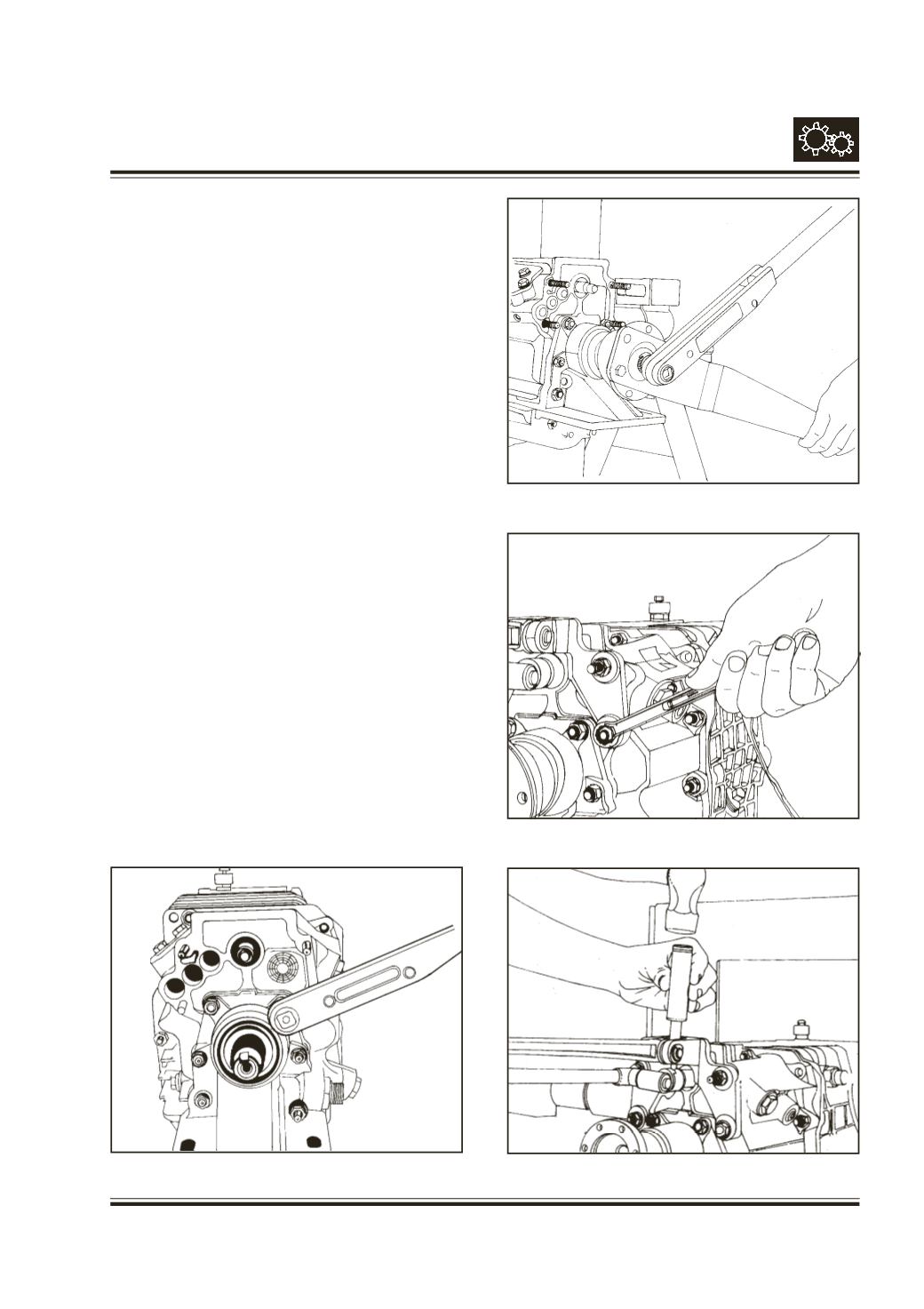

GEAR BOX G-76
Apply adhesive gasket eliminator over rear cover face.
Place measured shims of main shaft and counter
shaft at the seat of rear cover. Fit rear cover to housing
half - rear. Put hex. nuts (65) along with bright washer
(66) and spring washer (67) and tighten them.
Fig.
110
Press coupling flange over main shaft rear end. Fit
collared hex. nut and tighten it to the specified torque
of 24-28 mkg.
Fig. 111
Stake the collar in undercut with suitable chisel to
secure the nut. (For Telco make)
Slide washer (115) over selector shaft in the housing
and then press oil seal (116) with suitable drift.
Fit bracket - extension arm (150) to the housing.
Fig. 112
Apply grease on spherical seat of shifter shaft end.
Check for condition of bush shifting yoke (176).
Slide shifting yoke (169) over spherical seat of shifter
shaft. Align its hole with shaft hole such that projected
end of the bush is towards right hand side.
Fit cylindrical pin (171). Slide spring clip (170) over
the under cut of shifting yoke.
Fig. 113
Fit oil drain plug (78), breather (13) and reverse
indicator switch (129).
Fig. 112
Fig. 111
Fig. 110
Fig. 113
