SAFARI

GEAR BOX G-76

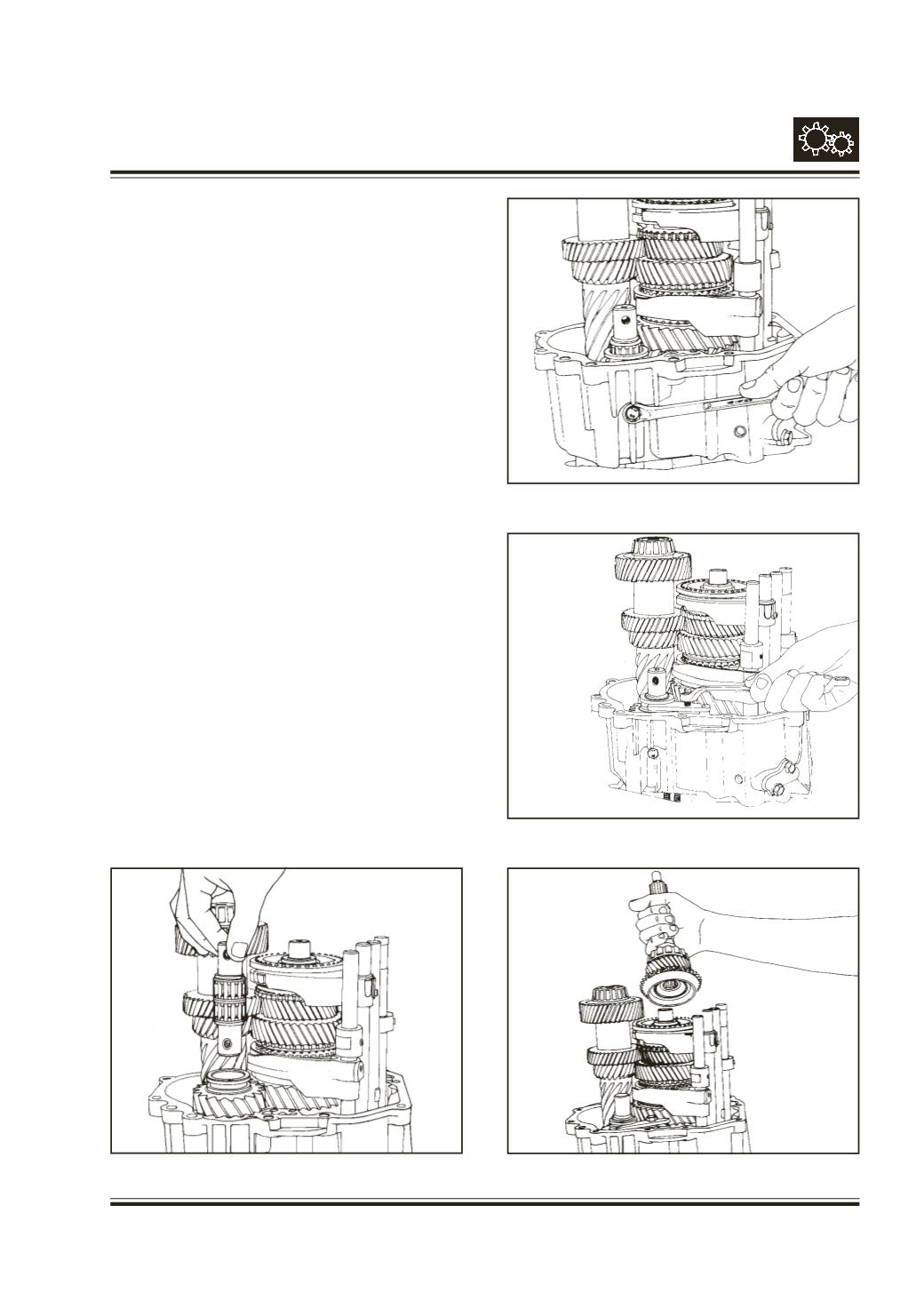

Fit Reverse Idler gear shaft assy. (82) in the housing

such that reverse gear collar is at top.

Fig. 102

Tighten hex. screw (54a) along with bright washer

(55a) and spr. washer (56a) to hold Reverse Idler

shaft in the housing - rear.

Fig. 103

Align retainer plate (86) in Reverse Idler gear collar,

simultaneously locating its pin in housing.Tighten hex.

screw (52) along with spr. washer (53) in the housing.

Fig. 104

Fit linear bearing (28) in the housing - Front, if

removed earlier.

Place drive shaft.

Fig. 105

Fig. 104

Fig. 103

Fig. 102
