SAFARI

GEAR BOX G-76

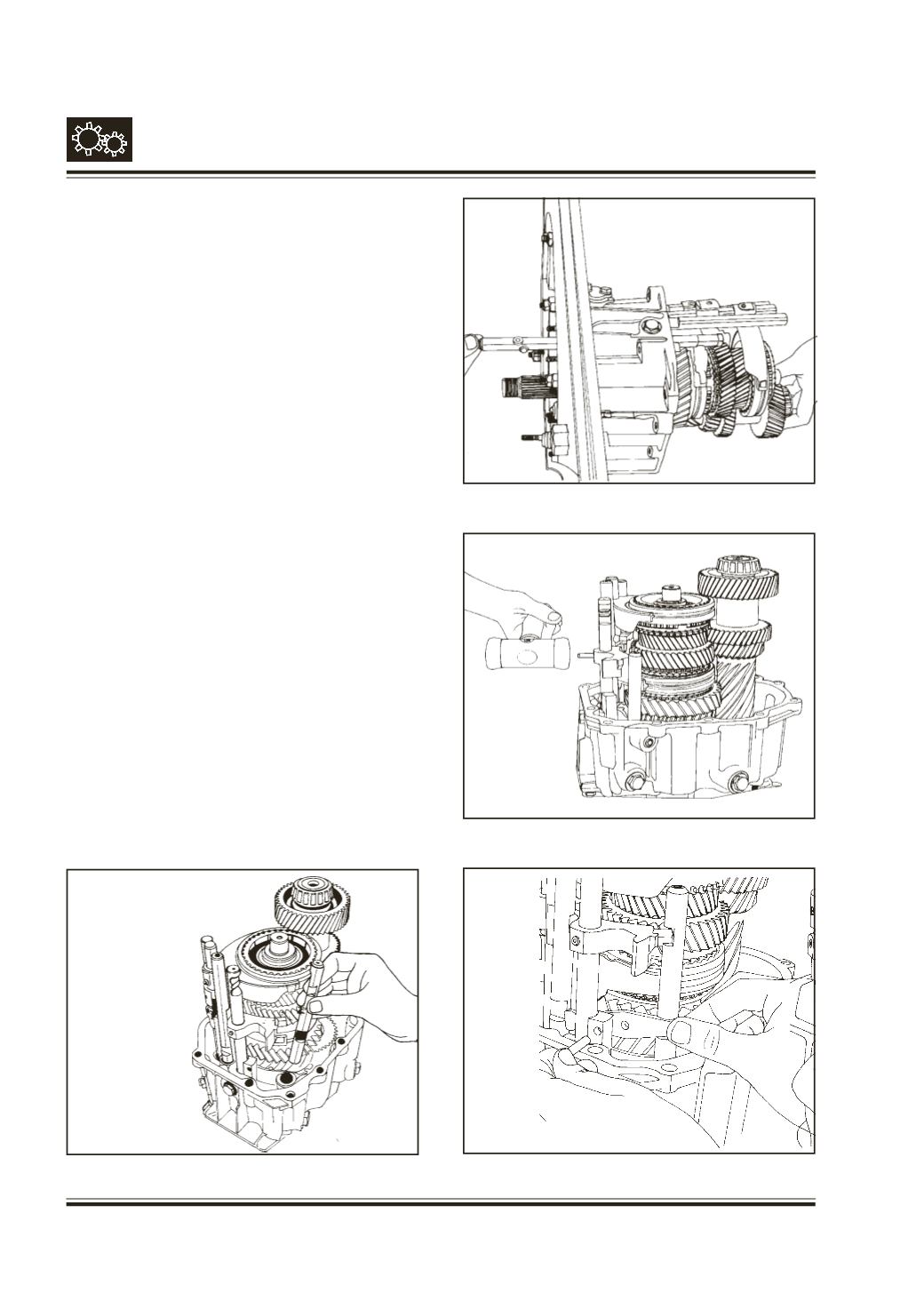

Slide shifter shaft - Rev. speed (94) in the housing

bore.

Fig. 98

Locate selector & shifter finger (93) between shifter

dog - 3rd/4th notch and reverse speed shifter shaft

under cut.

Insert selector shaft from bottom through selector

lever (108) aligning rollers with its splines. Then pass

it through selector & shifter finger and

ensure that

notch at end is facing towards detent (89).

(To be

fitted afterwards).

Fig. 99

Align hole of selector shaft and selector & shifter

finger. Fit spiral pin (124).

Fig. 100

Locating swing lever (95) between under cut of

reverse shifter shaft and shifter shaft Reverse/5th.

Ensure that notch on the lever is at the top and

towards reverse shifter shaft.

Fig. 101

Fit circlip (97) to pin (96), if removed earlier. Insert

pin through bearing block and swing lever.

Fig. 101

Fig. 100

Fig. 99

Fig. 98
