GEAR BOX G-76
Fig. 1

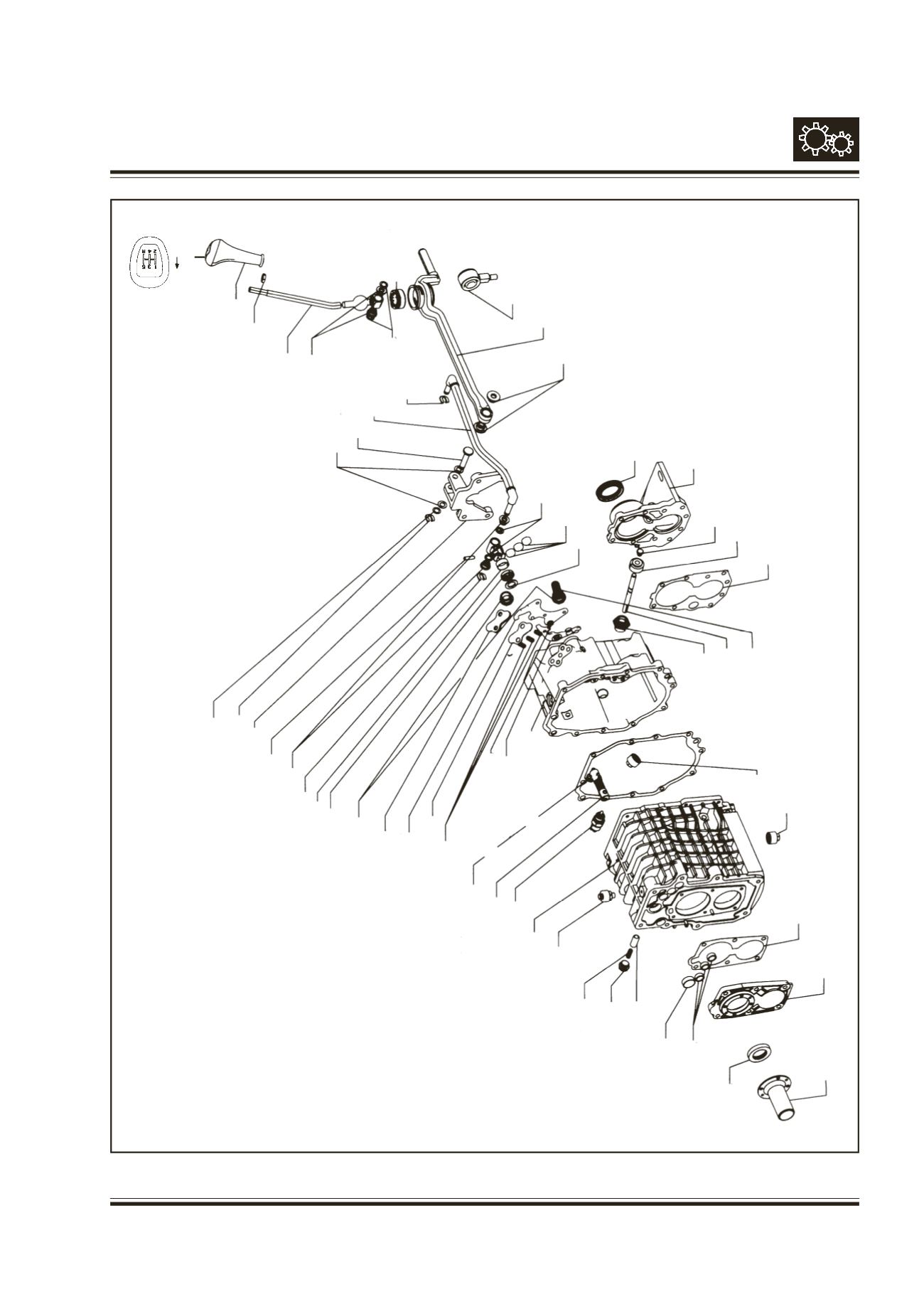

G-76 GEAR BOX WITH INLINE SHIFT EXPLODED VIEW
DIRECTION OF DRIVING
SPRING WASHER A-10
TS :17741
RETAINER PLATE
BRACKET (EXTENSION ARM)
CYLINDRICAL PIN
BUSH (SHIFT LINK )
RETAINER PLATE
SPRING CLIP
OIL SEAL
(SEL. SHIFTER SHAFT)
THREADED PLUG
(O.D. PRESSURE PLATE)
DETENT COVER
(SHIFTER SHAFT DETENT)
PRESSURE PLATE
(REV.GEAR)
GASKET (DETENT COVER)
DETENT SPRING
(1/2,3/4,5/R SHIFTER SHAFT)
HEX SCREW M8 x 25
ASSY INHIBITOR
ROLLER (DETENT PLATE)
PRESSURE PLATE
(O.D.GEAR)
ASSY REV. LIGHT SWITCH
HOUSING REAR HALF
HOUSING FRONT HALF
ASSY BREATHER
SPRING
(CENTRAL DETENT)
THREADED PLUG
(CENTRAL DETENT)
CENTRAL DETENT
(SPHERICAL)
CUP (SEL.SHIFTER
SHAFT)
CUP (SHIFTER SHAFT)
OIL SEAL
BEARING TUBE FRONT COVER
GASKET (FRONT COVER
TO HSG. FRONT HALF)
DRAIN PLUG
FILLER PLUG
SPRING
(O.D.PRESSURE PLATE)
SPEEDO SHAFT
ADAPTOR
GASKET (REAR HALF)
SPEEDO PINION
PLUG (SPEEDO SHAFT)
REAR COVER
OIL SEAL (REAR COVER)
SPACER (OIL SEAL,
SEL SHIFTER SHAFT)
CUP (SHIFTER SHAFT)
SPRING WASHER A-10
TS:17741
BUSH (EXTN.ARM)
EXTENSION ARM
ASSY EXTN. BOX
SUPPORT BRACKET
BUSH (BALL
SEAT,
G.S.LEVER)
WASHER
RETAINER PLATE
ASSY SHIFT LINK
PIN (EXTN.ARM. BKT.)
WASHER
BUSH (SHIFT LINK)
ASSY GEAR SHIFT LEVER
HEX THIN NUT M10X1
ASSY GEAR SHIFT KNOB
