SAFARI

GEAR BOX G-76

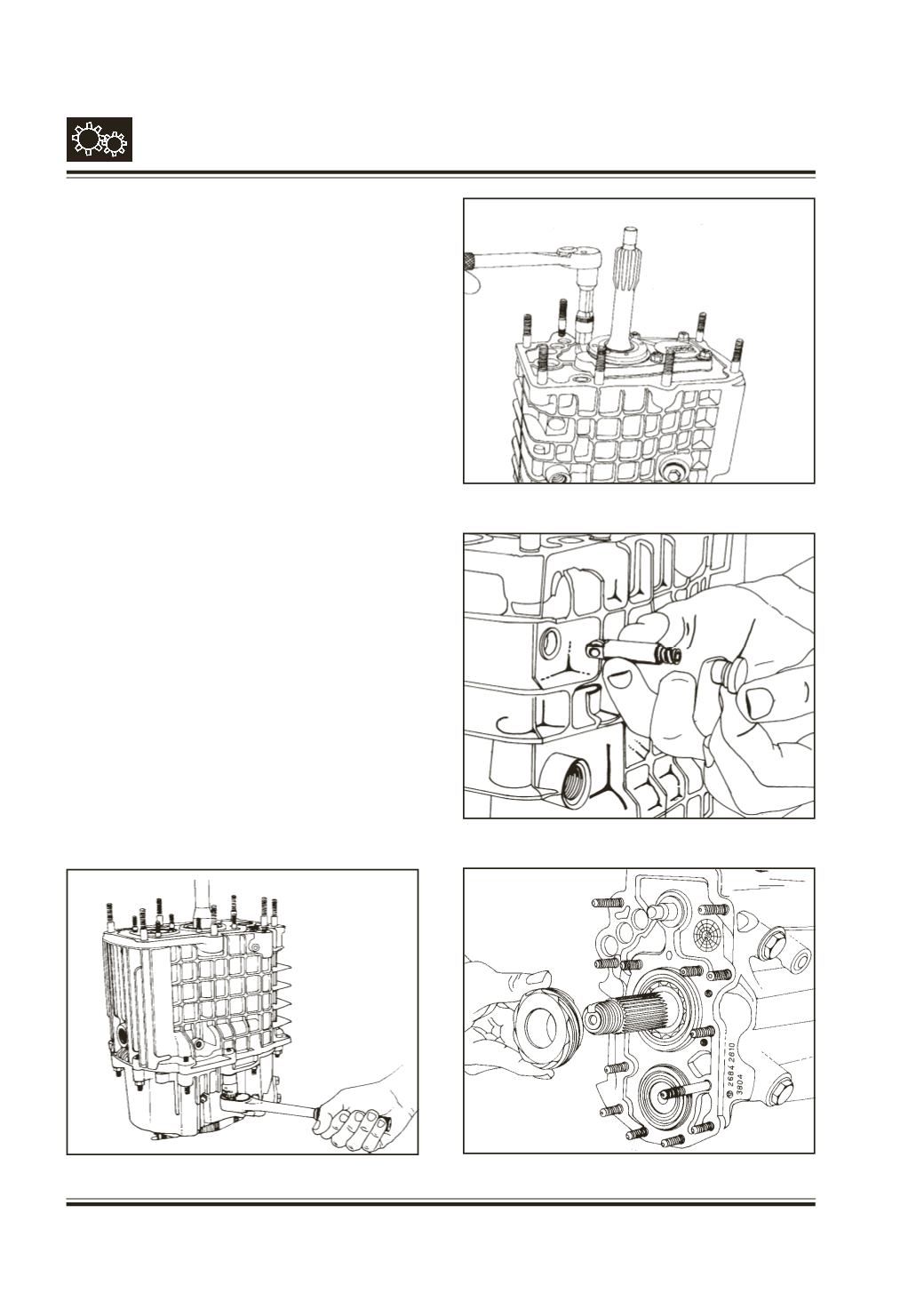

Apply shellac and put gasket (79) over housing

parting surface. Place gear box housing - Front (77)

over the rear half aligning dowel pins and gently tap

it with mallet.

Put hex. nuts along with plain and spring washer.

Tighten all nuts evenly.

Fig. 106

Apply adhesive gasket eliminator over front cover face

and fit it over housing front.

Place measured shims of drive shaft and counter

shaft at the seat of front cover.

Put hex. nuts along with bright washer and spring

washer and tighten them.

Fig. 107

Check free movement of roller of detent (89).

Carefully fit detent in a bore of housing - front, keeping

roller horizontally and

ensure that it is located

properly over selector shaft notch.

Fig. 108

Fit detent spring (90) and then press plug (91)

Slide speedo drive gear over main shaft.

Fig. 109

Fig. 108

Fig. 107

Fig. 106
