SAFARI

287 / 1526

46

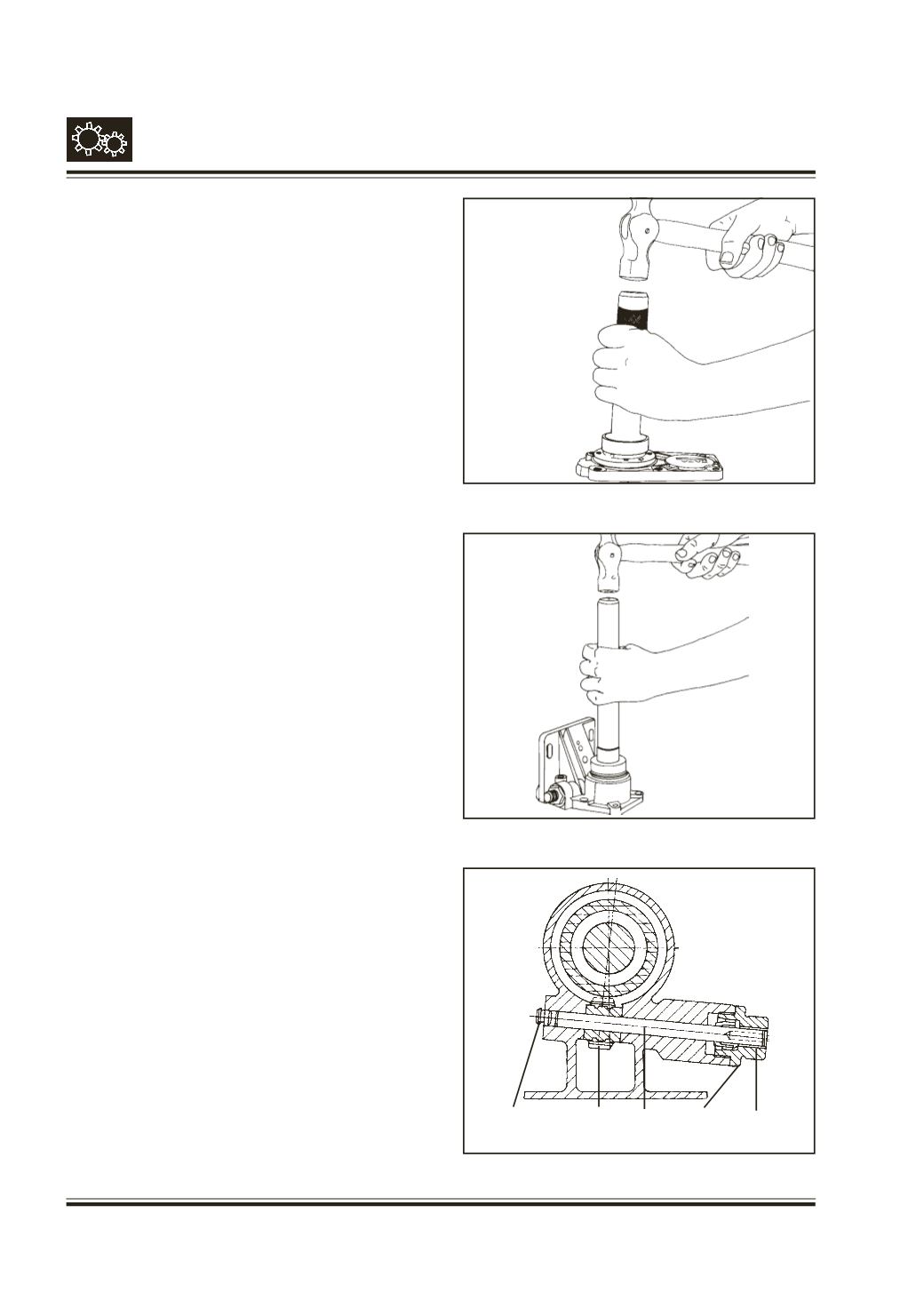

GEAR BOX G-76
SUB ASSEMBLY OF GEAR BOX HOUSING
COVER FRONT
Press dowel pins (12) to bearing tube, if removed
earlier. Fit bearing tube to the cover.
Push in oil seal (3) with help of drift . 2654 5890
26 07 and handle . 2640 5890 35 11. Fig. 85
SUB ASSEMBLY OF GEAR CASE COVER REAR
Refer fig. 86&87
Fit oil seal (43) with the help of drift, . 2654 5890
26 07 and handle 2640 5890 35 11.
Fill 3% grease Mo S2 320 in the pocket between main
lip and dust lip of oil seal.
Keep speedo drive gear (48) inside the cavity then
push in speedo shaft (49) such that cable end goes
towards tapped hole side.
Fit oil seal - speedo shaft (51) in the threaded plug -
speedo shaft (50) keeping lip side outwards. Tighten
plug in the housing.
Press plug - speedo drive (47) in housing from other
side. Ensure gap of 1 mm between plug face to
speedo shaft end.
Fig. 87
Fig. 85
47 48 49 50 51
Fig. 86
