DISASSEMBLY OF GEAR BOX HOUSING - REAR

HALF

Loosen bearing block locking fit bolt (99) and remove

bearing block (98).

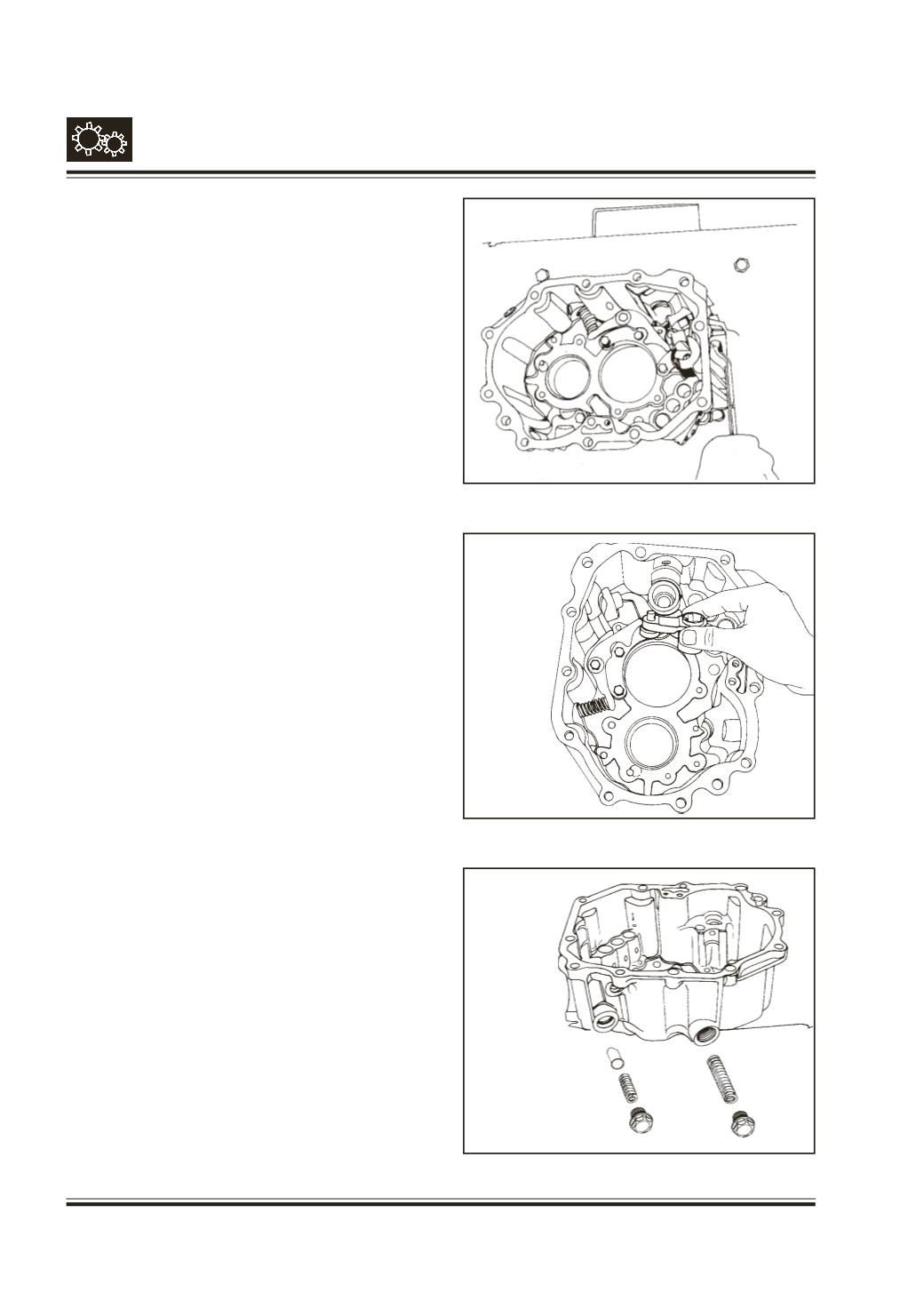

Fig. 43

Remove torsion spring (111) from selector lever pin

(109) and take out torsion spring along with tubular

spacer (110)

Remove selector lever (108) along with roller (107)

from housing.

Fig. 44

Unscrew plug (135) and remove spring - Detent plate

5th gear (134). Unscrew plug (135a) and remove

plunger - Reverse gear detent (137) along with spring

(136).

Fig. 45

Unscrew mounting screws (130) and take out

pressure plate - reverse speed (132) along with

pressure plate 5th gear (133).

Loosen and remove Hex. screw (102) along with nut

(105), spr. washer (104) and bright washer (103).

Remove roller - detent plate (106), if required.

Disconnect pressure plate 5th gear from pressure

plate - Rev. speed.
