SAFARI

GEAR BOX G-76

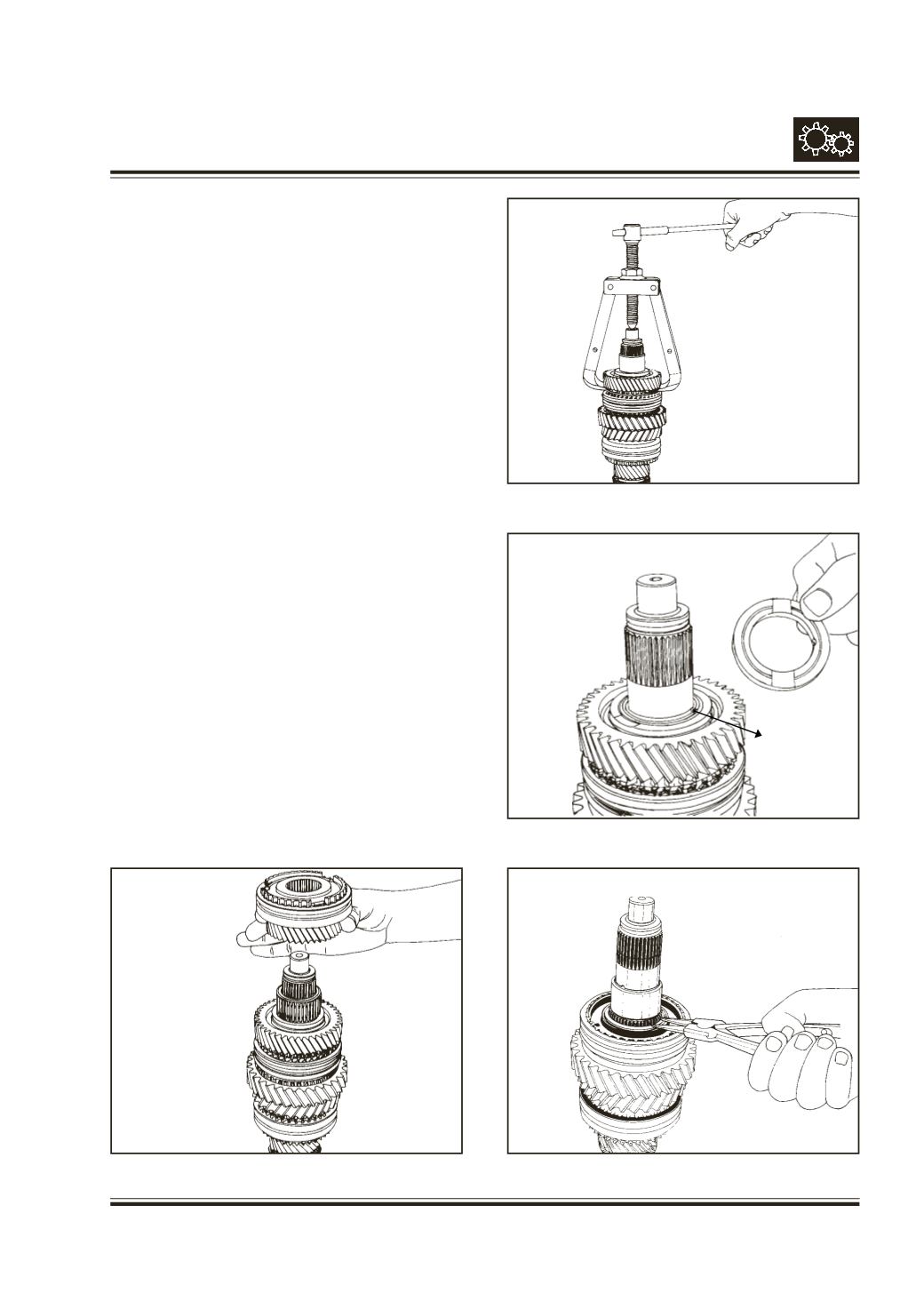

Take out 3rd speed gear (23) along with 3rd/4th shifter

sleeve (18) and engaging gear (22).

Fig. 32

Remove needle roller cage (24).

Gently separate out shifter sleeve from engaging gear

and remove carriers (20), springs (19) and balls

- 5 mm dia. (21).

Separate out synchro cone (17a)

Hold the shaft firmly and pull out bush (25) along

with spacer (27) and 2nd speed gear (29) with the

help of puller.

. 312 589 25 33.

Fig. 33

Remove spacer locking ball - 3 dia. (26).

Fig. 34

Remove snap ring (31).

Fig. 35

Ball

(Spacer

locking)

Fig. 33

Fig. 32

Fig. 34
