SAFARI

1455 / 1526

ELECTRICALS
33
POSITION
Key out Key in
LOCK LOCK ACC. ON START
Key in sensor
Battery
Accessories
Ignition
Start
TERMINALS
Key rotation forward Steering Steering Steering Steering Steering
Locked Locked Free Free Free
Key rotation backward Steering Steering Steering Steering Steering
Locked Free Free Free Free
Terminal Connection/Load
Battery (30) Supply +Ve.
ACC. Aux. Relay
ON (15/54) Relay
START (50) Relay
Key in sensor Chime unit
BATTERY
IGNITION
KEY IN
SENSOR
ACCESSORIES
CRANK
B R
O Y-L Y

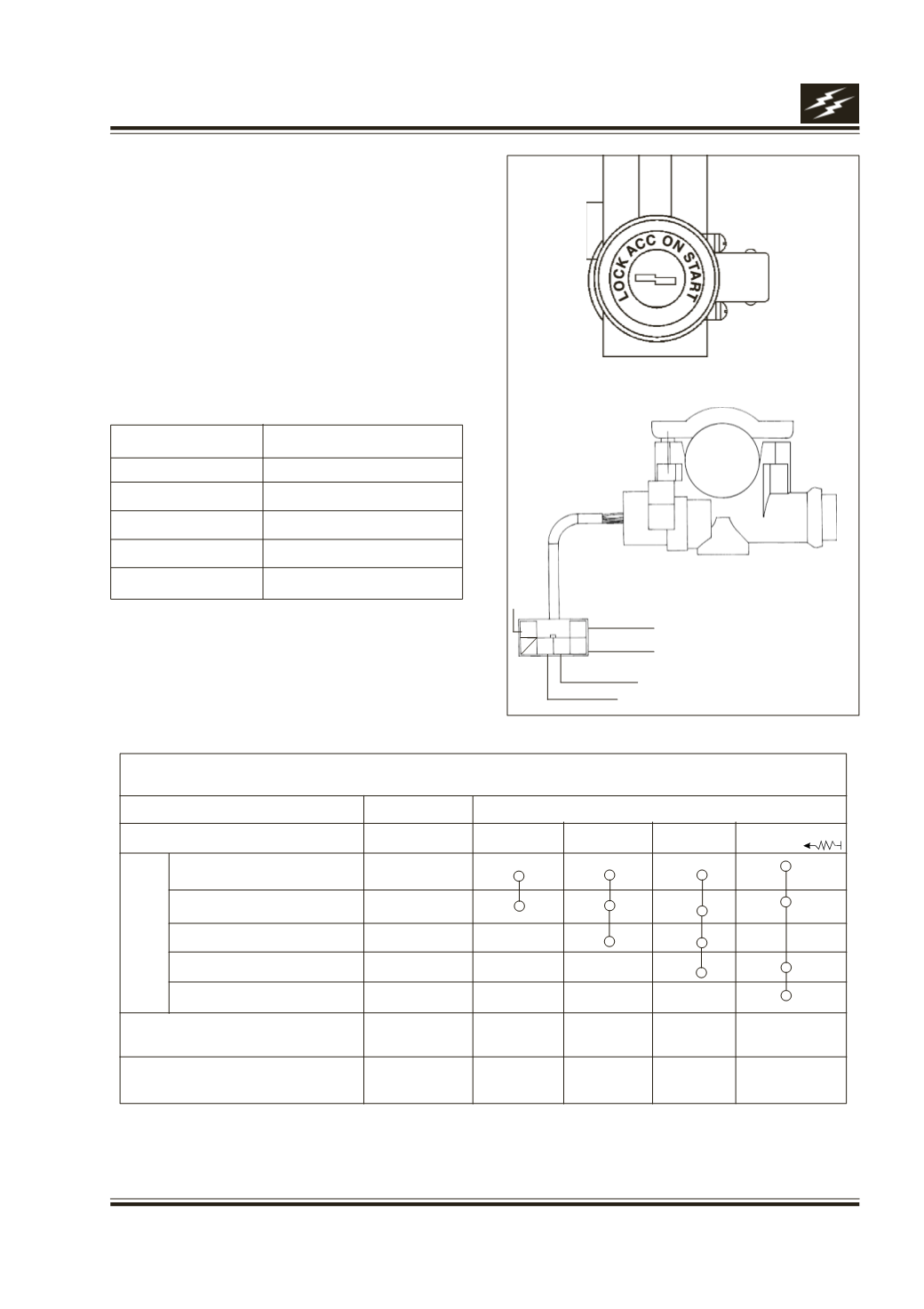

Fig. 40
16. Antitheft device : For Operating Guidelines Refer User Manual Provided long with the Remote Kit
15K. STEERING LOCK CUM IGNITION SWITCH (Fig. 40)
Function
To lock the steering . To start & stop the engine.
To switch on accessaries and other electrical
system.
Location
It is located on the right side of the steering
column behind steering wheel.
