SAFARI

1450 / 1526

ELECTRICALS
28

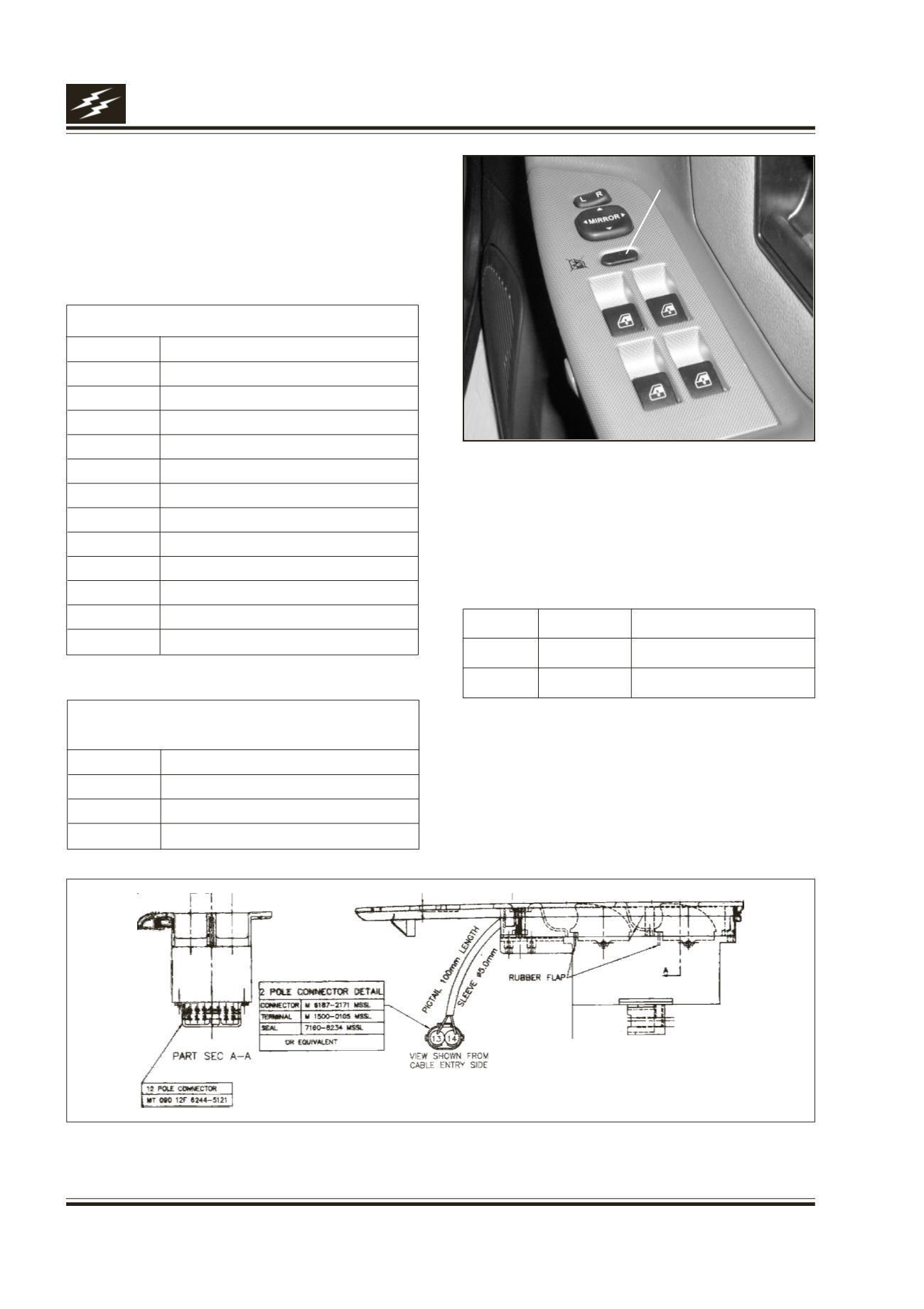

Fig. 31 Power Window Switch on Driver Door
Table for driver door switch pack (Fig. 32)
Terminal Terminal Configuration
1 Driver door down
2 Driver door up
3 Earth
4 +ve Supply
5 Inbuilt Switch Output
6 Co-driver down
7 Co-driver up
8 Passenger RH up
9 Passenger RH down
10 -
11 Passenger LH up
12 Passenger LH down
Table for driver door switch &
rear door switch Fig. 34
Terminal Terminal Configuration
1 Earth
2 Down
3 Up
Fig. 32
Lock / Unlock Button
TABLE - 1- 2 POLE CONNECTOR FOR ILLUMINATION
TERMINAL CONNECTION CABLE COLOUR & SIZE
13 + VE SUPPLY WHITE - 0.5 sq. mm.
14 - VE SUPPLY WHITE
15E. WINDOW WINDING SWITCHES (Fig. 31)
Function : Lowering and raising of window glass.
Location : On all the door trims.
