ELECTRICALS
38

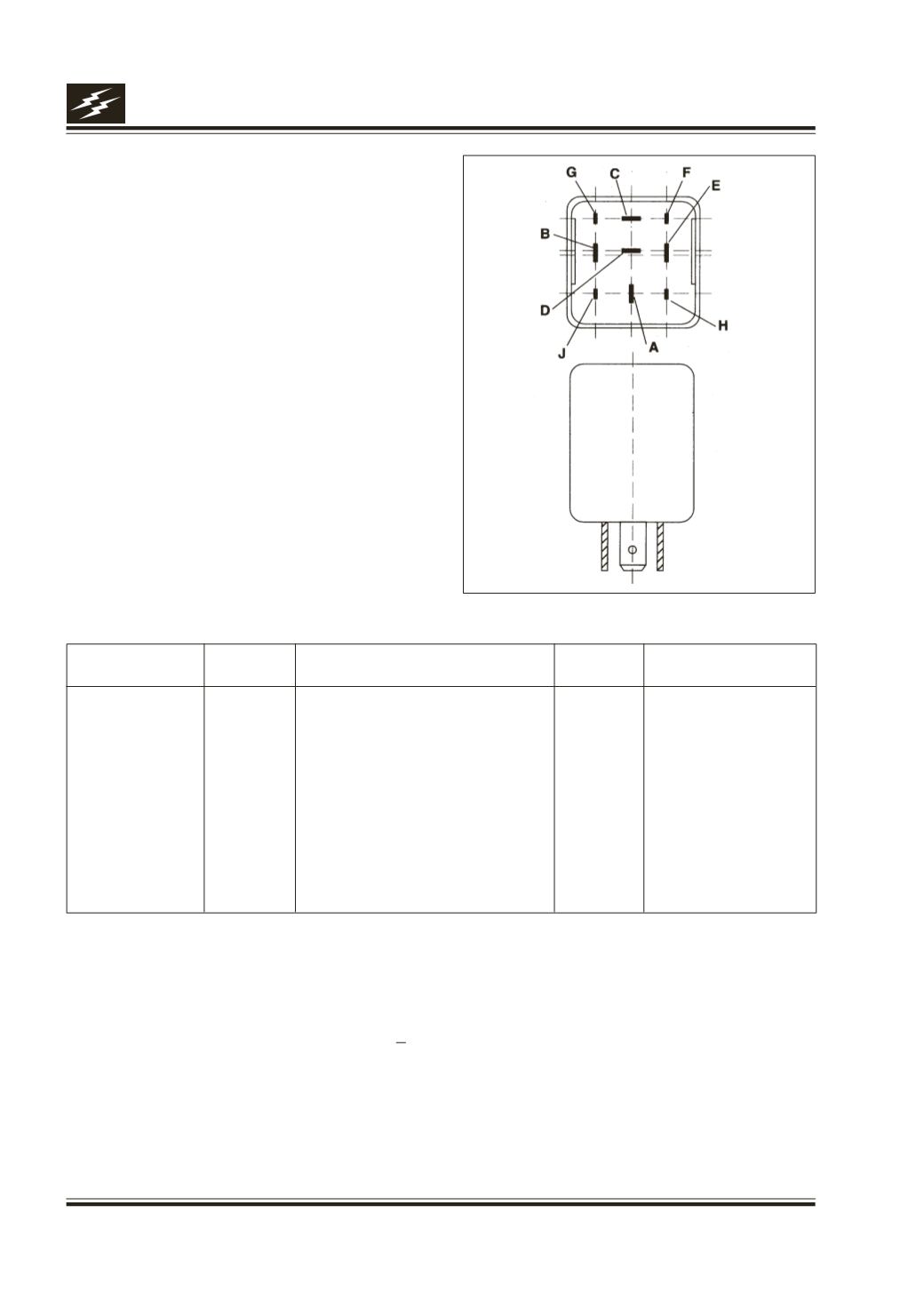

Fig. 45
Connection details
Terminal Name Ter.Type Description
Active
Condition
Level
H
Input
Driver door switch
GND
Door Open
J
Input
Front passenger door switch
GND
Door Open
D
Input
Rear left passenger door switch
GND
Door Open
F
Input
Rear right passenger door switch GND
Door Open
G
Input
Tail gate door switch
GND
Door Open
A
Output
Output to lamps
GND
B
Supply
Supply to unit
VCC
Permanent
E
Ground Ground to unit
GND
Permanent
C
Input
Ignition Switch on
VCC
I/G Position
17E. INTERIOR LIGHT DELAY UNIT
(Fig. 45)
Function
It delays switching off the “Courtesy” lamp within
the passenger area of the vehicle once the doors
are closed, so as to allow some light for inserting
the ignition key.
Location
Behind glove box on fire wall.
Performance check
When any of the door inputs (Ter. H, J, D, F or G) is active
while ignition input (Ter. C) is inactive, output (Ter. A)
is made active remains for a time duration of 11 + 3
sec. after all inputs ( Ter. H,J,D, F and G) becomes
inactive. If during this period ignition input (Ter. C)
becomes active, output ( Ter. A) becomes inactive
within 1 sec.
