INSTALLATION OF CRANKSHAFT PULLEY

1 Fit oil slinger, ensure that woodruff key in position

on crankshaft.

2 Heat pulley hub to approx. 80 deg C. Align key

way of pulley hub with woodruff key and slip it on

the crankshaft.

3 Lubricate threads of pulley mounting bolt and

screw it on.

4 Lock crankshaft at flywheel suitably and tighten

mounting bolt to specified torque.

INSTALLATION OF CRANKSHAFT PULLEY

1 Ensure that woodruff key is inpositionon crankshaft.

2 Heat pulley hub to approx. 80degG. Align keyway of

pulley hub with woodruff key and slip it on the

crankshaft.

3 Lubricate threads of pulleymountingbolt and screw

it on.

4 Lock crankshaft at flywheel suitably and tighten

mounting bolt to specified torque.

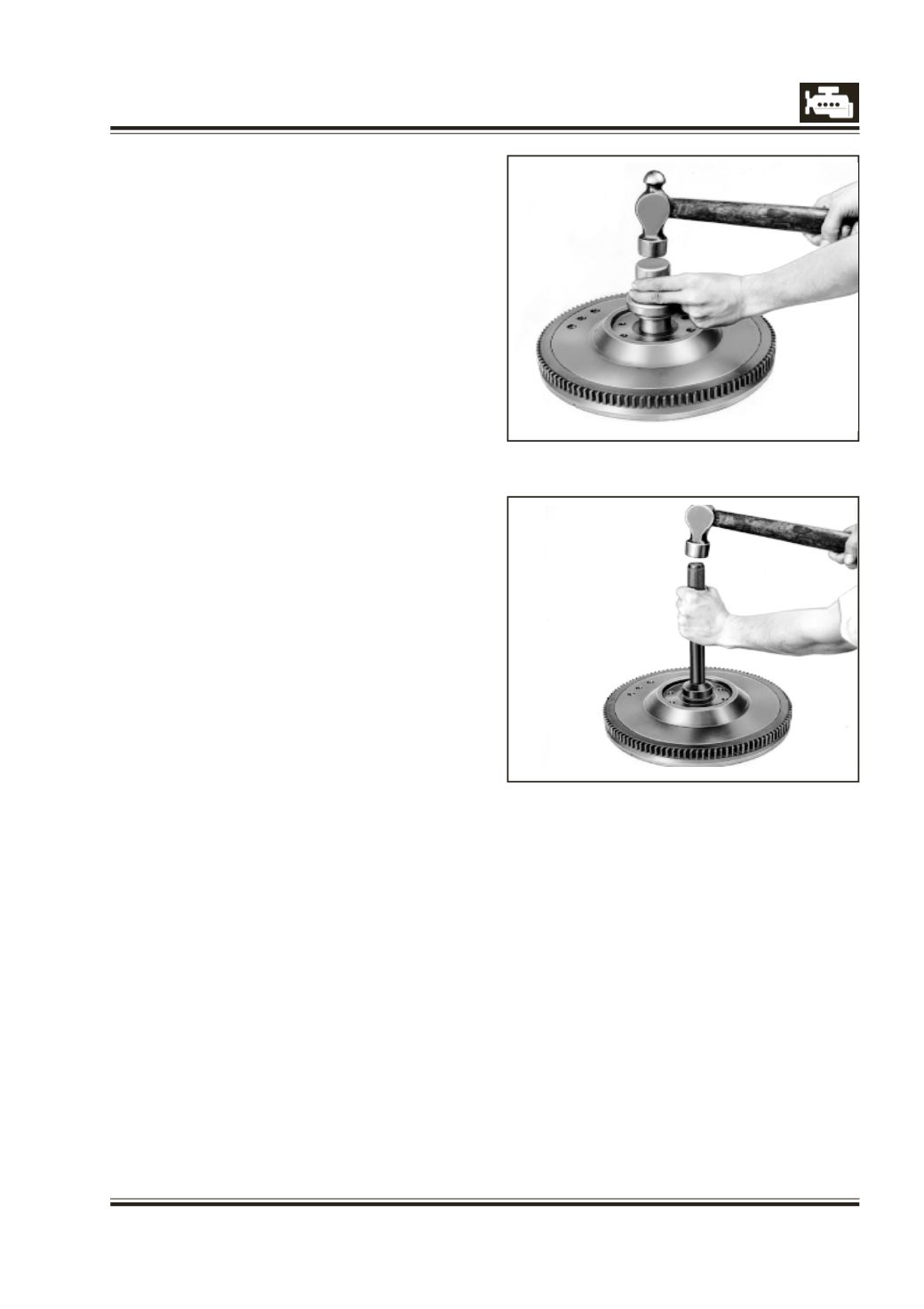

REPLACEMENT OF DRIVE SHAFT SPIGOT BEARING

1 Using drift, 2651 5890 33 05 press out drive shaft

spigot bearing fromflywheel alongwith its cover.Fig.

2 Check bearing for noise, pitting, etc. If necessary,

replace with new one.

3 Install bearing in flywheel with drift, 2506 5890 99 02

till it is flush with back face of flywheel. Fill bearing

with grease and fit retaining cover with drift, 2506

5890 99 02. Fig. 5.
