SAFARI

GEAR BOX G-76

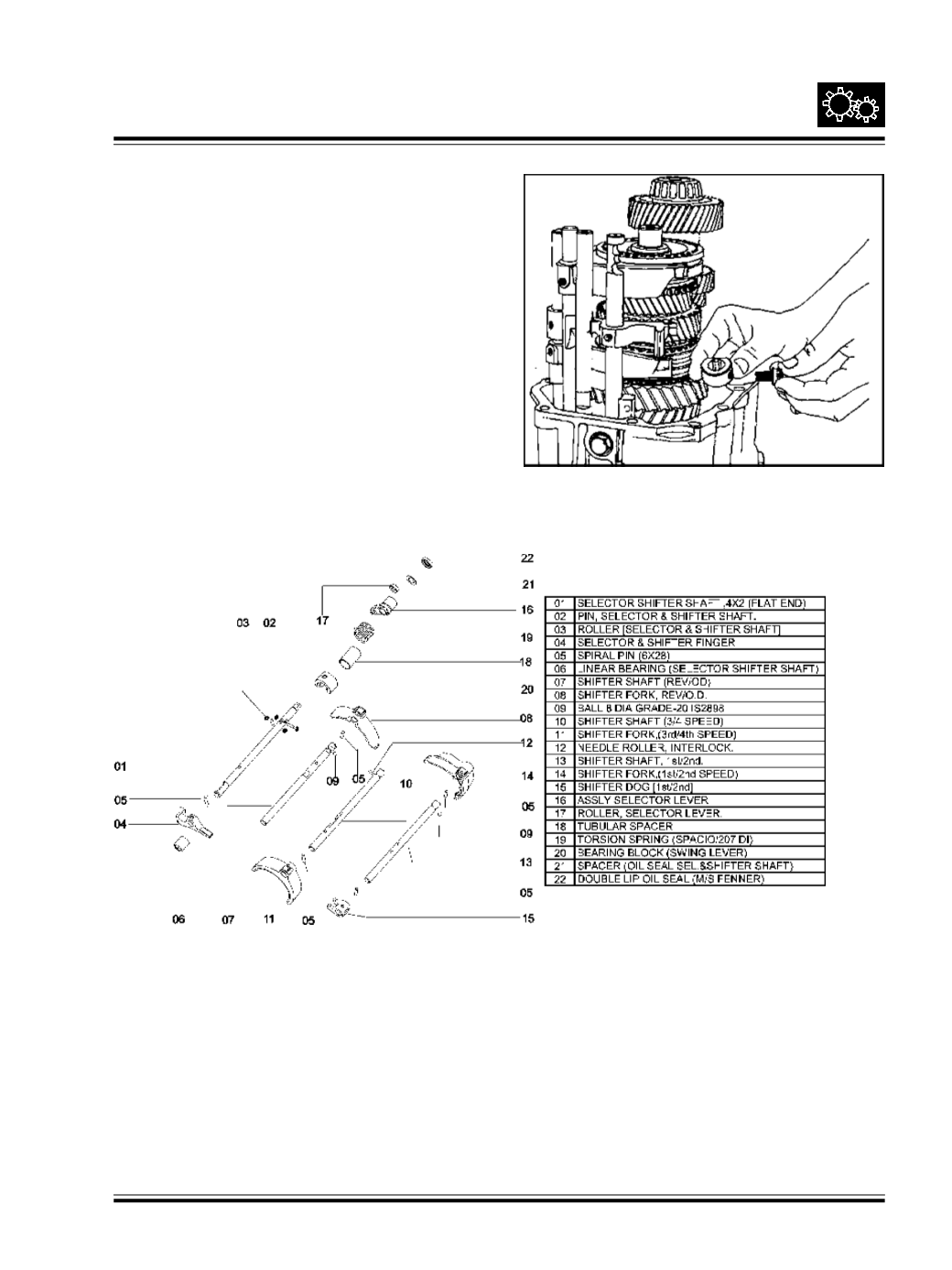

Fit locating piece reverse shifter shaft in the housing

with the help of socket head cap screw and spring

washer such that it sits properly. Fig. 109

Fig. 109

Fit spacer and oil seal in housing before shifter and

selector shaft. Ensure proper direction of oil seal lip.

SHIFTER SHAFTS AND SHIFTER FORKS

22. ASSEMBLY OF SHIFTER AND SELECTOR

SHAFTS

There are three shifter shafts, one selector shaft and

one shifter shaft for reverse speed.

Assembly of 1st/2nd shifter shaft

This shaft is having two Nos. holes for spiral pins

approximately at the centre of the shaft.

Hold shaft horizontally keeping notch upward and

towards yourself.

Slide shifter dog 1st/2nd over shifter shaft from other

end such that shaft relieving radius is at top and towards

right side.

Align shifter dog with outer hole of shaft and press

spiral pin.

Select shifter fork 1st/2ndwhich is having engaging

collar at centre and slide over shaft. Align it with shaft

hole and press spiral pin.

Fig. 110
