SAFARI

GEAR BOX G-76

Apply adhesive gasket eliminator over rear cover face.

Placemeasured shims of main shaft and counter shaft

at the seat of rear cover. Fit rear cover to housing half

- rear. Put hex nuts (65) along with bright washer (66)

and spring washer (67) and tighten them. Ref Fig. 124

Press coupling flange over main shaft rear end. Fit

collared hex nut and tighten it to the specified torque

of 24-28 mkg. Ref Fig. 125

For securing main shaft nut; collar to be staked in the

slot.

Stake the collar in undercut with suitable chisel to

secure the nut. (For Telco make)

Slide washer over selector shaft in the housing and

then press oil seal with suitable drift.

Fit bracket - extension arm to the housing.

Ref Fig. 126

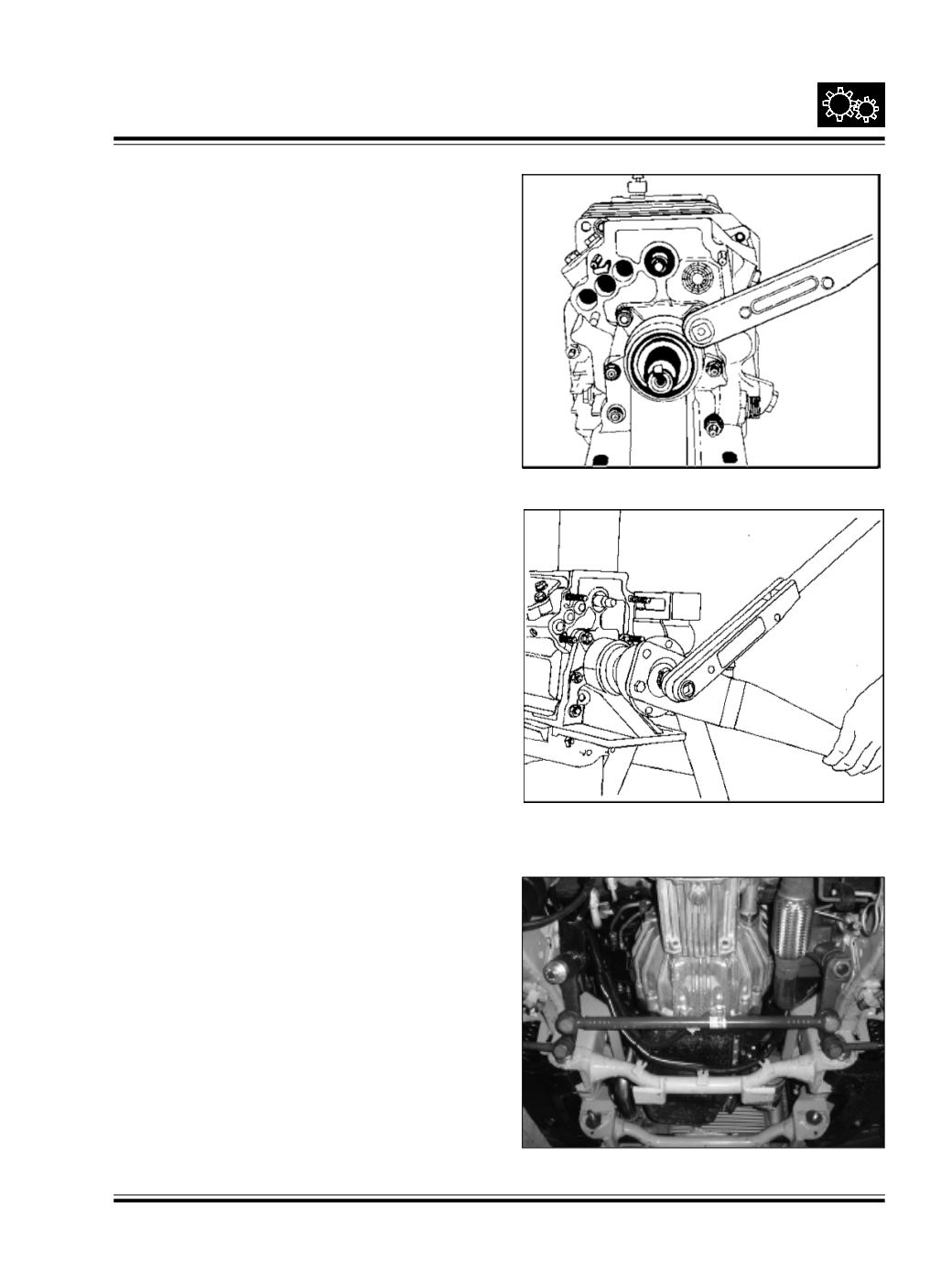

Fig. 124

Fig. 125

Fig 126
