TIAGO

HVAC

10.3.8. HVAC UNIT

REMOVAL

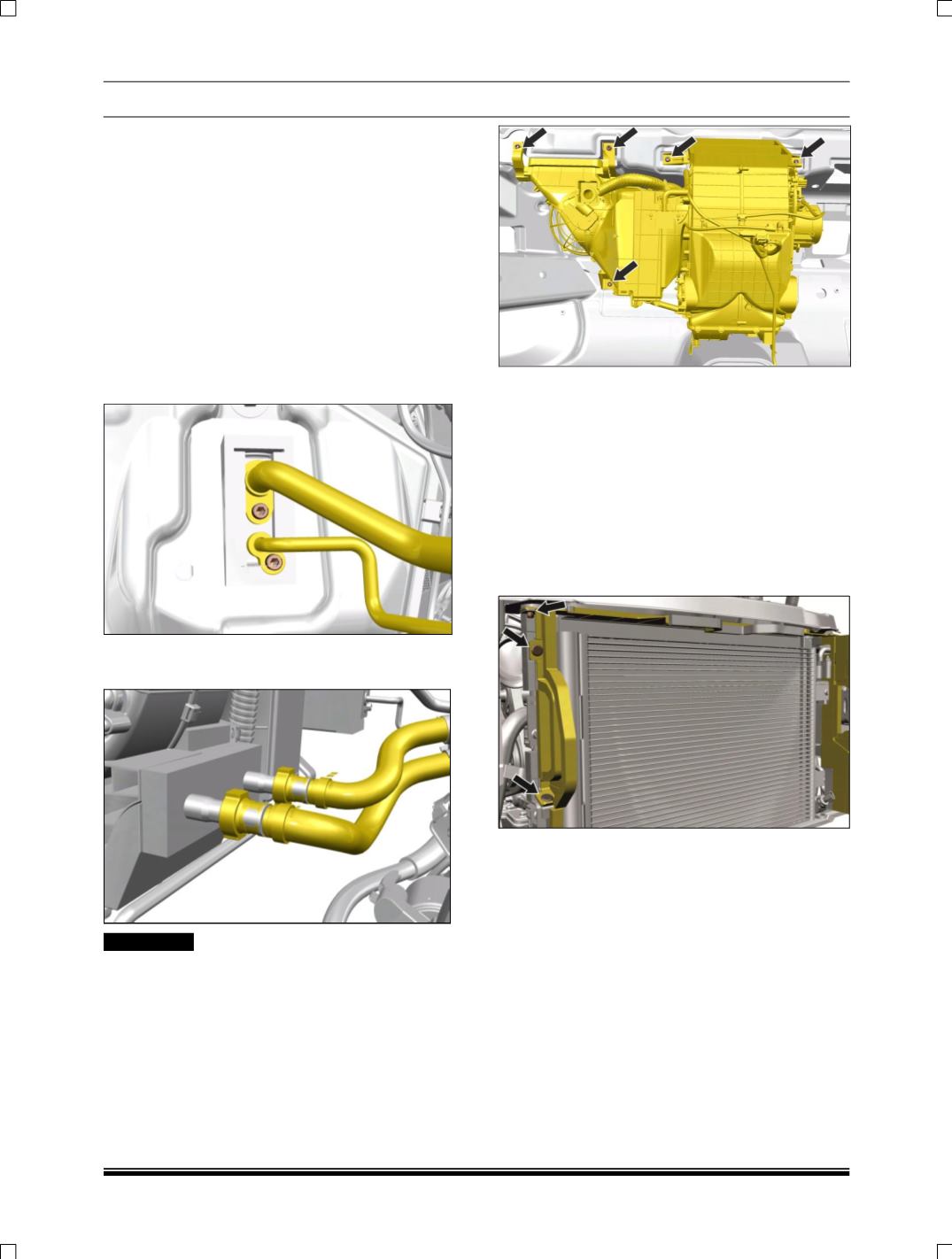

1. Discharge the refrigerant using standard recover-

ing equipment.

2. Remove dash board assembly.

(For procedure

refer dashboard removal.)

3. Disconnect all electrical connections.

4. Remove cross car beam

(For procedure refer

body group).

5. Loosen and remove bolts and disconnect the inlet

and outlet lines i.e. high pressure line and low

pressure line and plug the ports.

6. Disconnect the Heater inlet (1) and heater coil

outlet (2) pipes.

!! WARNING



The heater pipes contain hot coolant which may

spill out when disconnected, even if the coolant is

drained, so be careful while disconnecting them.



Keep a suitable container below it to collect the

coolant that will flow out.

7. Loosen and remove mounting bolts (5 Nos) as

shown in figure below and take out the HVAC

unit.

FITMENT

For fitment follow the reverse procedure of removal.

10.3.9. CONDENSER SEALING DUCT

REMOVAL

1. Remove the bumper (Refer Body section).

2. Open the bonnet.

3. Remove horns from both ends.

4. Loosen and remove mounting screws.

FITMENT

For fitment follow the reverse procedure of removal
