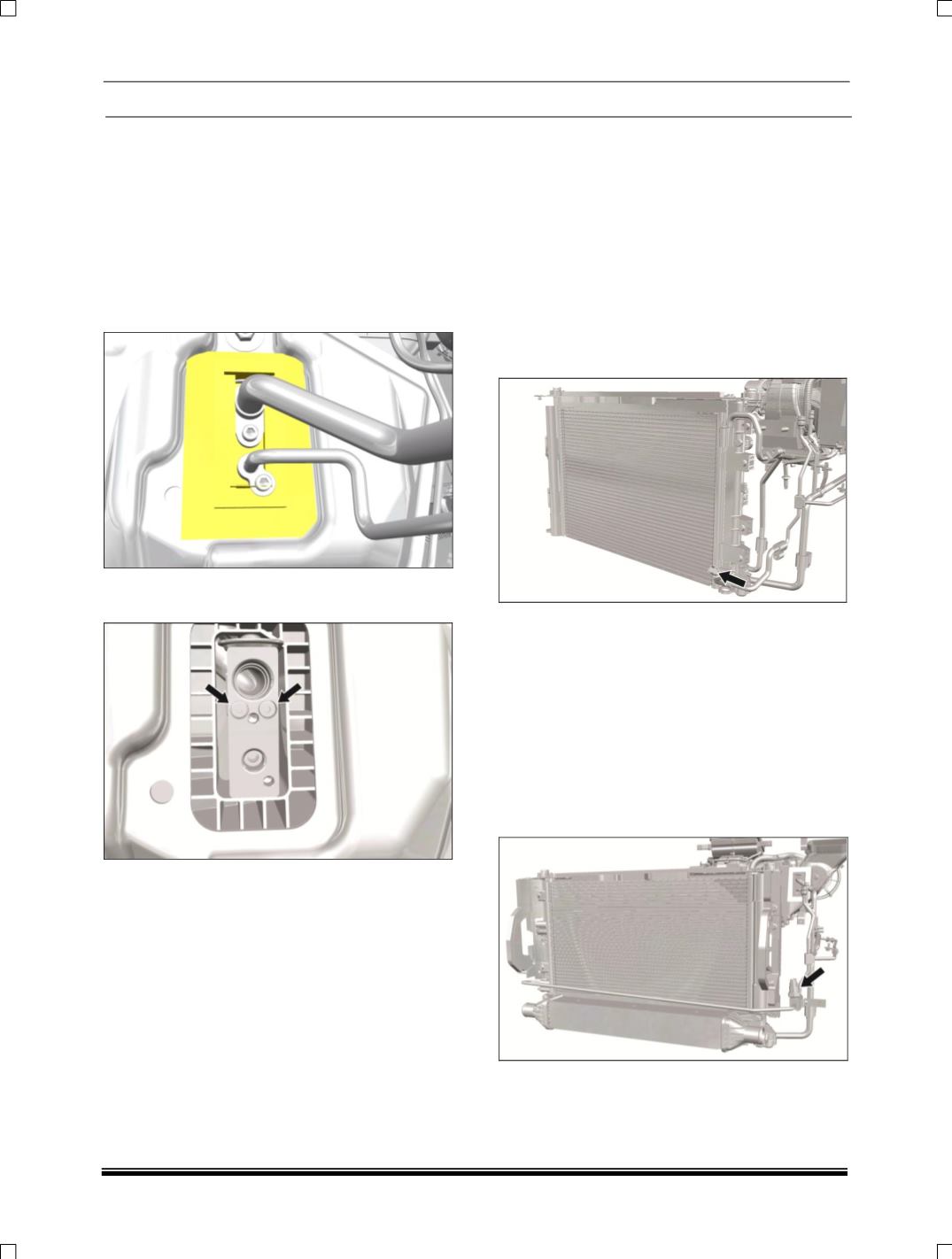

10.3.6. TXV

The TXV for HVAC is located on the firewall in the

engine compartment.

REMOVAL OF TXV

1. Discharge the refrigerant using standard recover-

ing equipment.

2. Loosen and remove bolts and disconnect the inlet

and outlet lines i.e. high pressure line and low

pressure line.

3. Loosen and remove the Allen screws of size-4

and remove the TXV from the HVAC unit.

10.3.7. PRESSURE SENSOR / SWITCH

PETROL

1. Discharge the refrigerant using standard recover-

ing equipment.

2. Remove wiper arms & wiper motor.

(Refer elec-

trical section)

3. Remove leaf screen

(Refer body section)

4. Remove plenum

(Refer body section)

5. Disconnect electrical connector.

6. Loosen & remove pressure switch.

DIESEL

1. Discharge the refrigerant using standard recov-

ering equipment.

2. Remove wiper arms & wiper motor.

(Refer elec-

trical section)

3. Remove leaf screen

(Refer body section)

4. Remove plenum

(Refer body section)

5. Disconnect electrical connector.

6. Loosen & remove pressure switch.

FITMENT

For fitment follow reverse procedure of removal.
