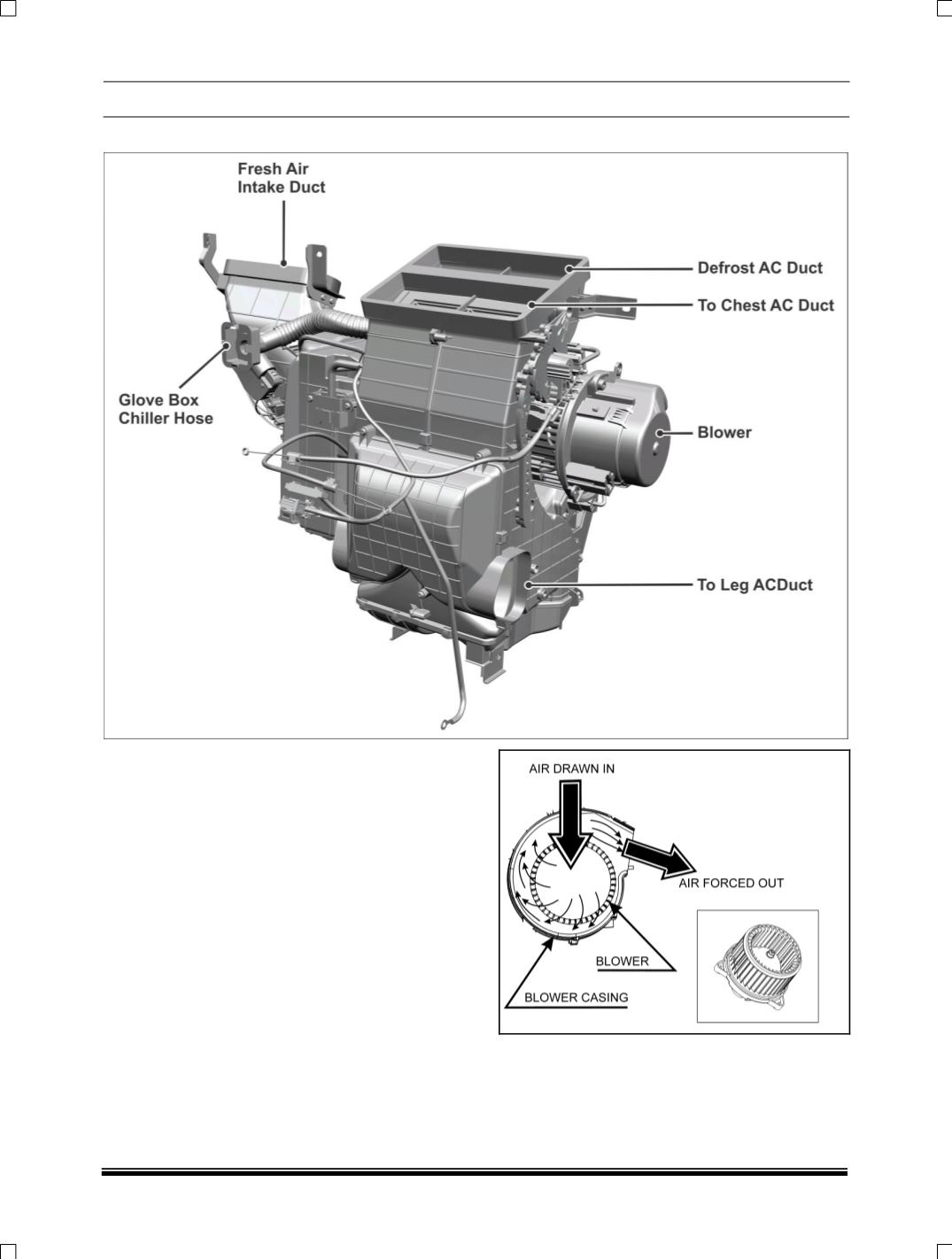

10.1.5.2. HVAC UNIT
The front HVAC unit comprises of the following parts:
i) Blower.
ii) Blower Resister
iii) Evaporator Coil and TXV
iv) Heater Coil
v) Air circulation ducts.
i) BLOWER
The Blower is located at the left bottom side of the
HVAC unit when viewed from inside the car. It acts
as a centrifugal pump drawing in air from the center
and pushing it out diagonally. The air flows through
the evaporator and the heater coil and then to the
cabin.
The Blower speed is controlled using a blower re-
sister.
