10.1.5. COMPONENTS OF HVAC

10.1.5.1. CONTROL PANEL

NOTE

The removal and installation of all components are covered in “On Vehicle Repairs” in this section.

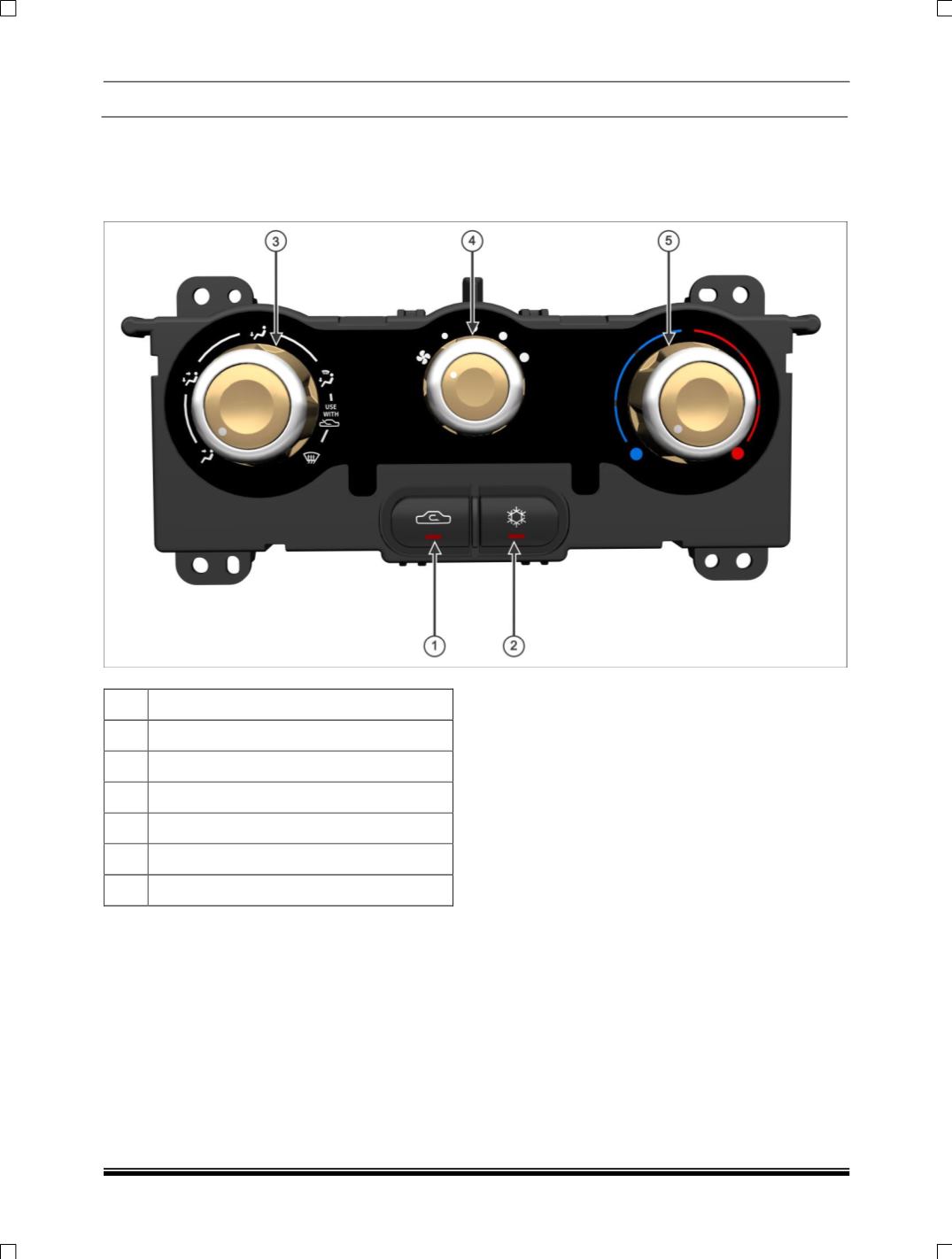

A PUSH BUTTON

01 Recirculation / Fresh Air Control

02 On / Off

B ROTARY KNOBS

03 Mode Selection

04 Blower Speed

05 Temperature Selection

The HVAC control panel consists of 2 Push buttons

and 3 rotary knobs that can be used to set the re-

quired temperature inside the cabin. In addition to

this the control panel also acts as a control unit for

the HVAC system in which all the software calibra-

tions are embedded.

A. PUSH BUTTONS

1. RECIRCULATION / FRESH AIR

(AMBER LED)

This is a push button that can be used to position the

Air inlet door, either to allow fresh air to come inside

the cabin or to recirculate the air within the cabin.

2. AC ON / OFF

The air conditioning ON / OFF switch is located on

the control panel. Press the switch to decrease the

air temperature inside the cabin. The indicator lamp

on the switch glows when the switch is in “ON” posi-

tion. The blower motor must be running for the

indicator lamp to glow.

When it is pressed once AC ON

(Amber LED glows)

is selected and if pressed again AC switches OFF.

This is also helpful to defrost / defog the windshield

in case of high air humidity.
