TIAGO

HVAC

B. ROTARY KNOBS

3. MODE SELECTION

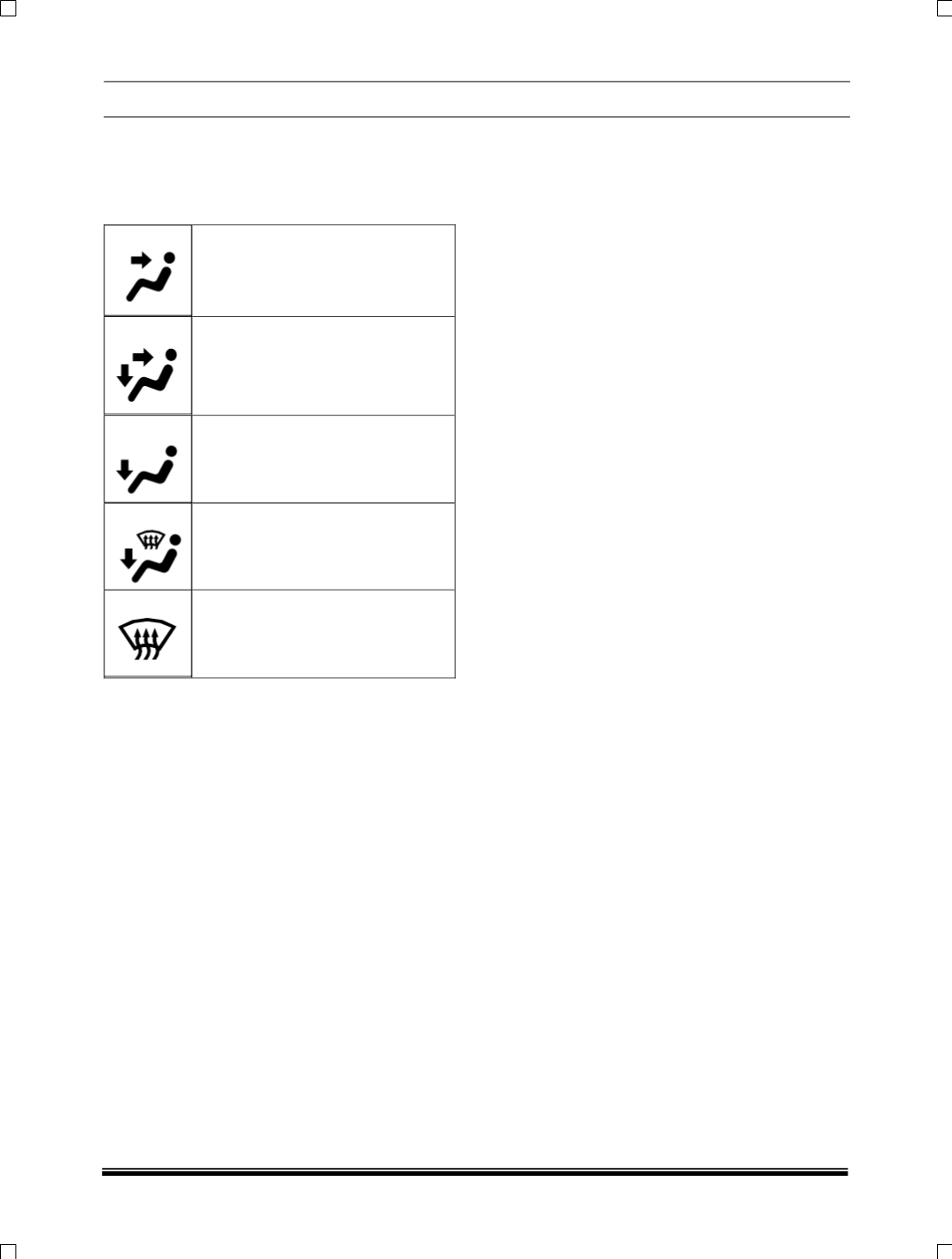

The mode knob is used to select the air delivery

mode. There are 5 different modes as given below.

Chest Mode

Chest – Leg Mode

Leg Mode

Leg – Defrost Mode*

Defrost Mode*

* See note below.

NOTE

When the Leg- defrosts or defrost mode is selected,

the HVAC control unit will select the recommended

settings for best performance of the selected func-

tion. These settings can be overridden by manual

intervention.

(For details refer HVAC layout and

working).

4. BLOWER SPEED SELECTION

The Fan speed selector allows the user to select four

blower speeds – LO, M1, M2 and HI. An OFF posi-

tion is also provided to shut the system off.

5. TEMPERATURE SELECTION

The temperature selector knob can be used to select

the required temperature varying from full cold

(on

the extreme anti-clockwise)

and full hot

(on the ex-

treme clockwise)
