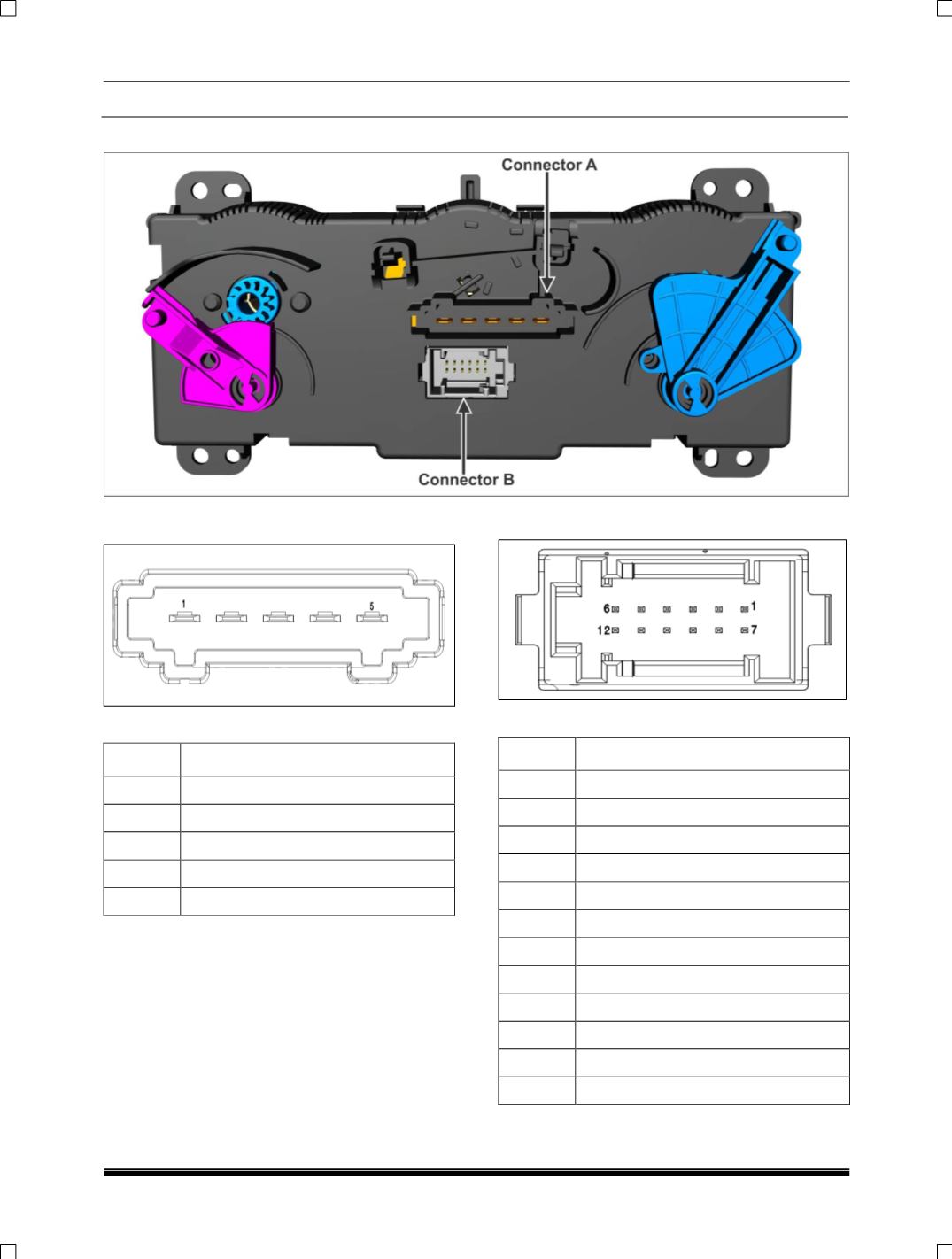

CONNECTOR DETAILS
CONNECTOR “A” DETAILS
PINOUT DETAILS
PIN NO
DESCRIPTION
1
Speed 3
2
Speed 2
3
Speed 1
4
Speed 4
5
Common
CONNECTOR “B” DETAILS
PINOUT DETAILS
PIN NO
DESCRIPTION
01
Sensor Gnd
02
Recirculation Motor 2
03
Recirculation Motor 1
04
Battery
05
Battery Switch
06
Not Used
07
Evaporator Temperature Sensor
08
Ac Relay Output
09
Ground
10
Itc Test
11
Illumination
12
Illumination Ground
