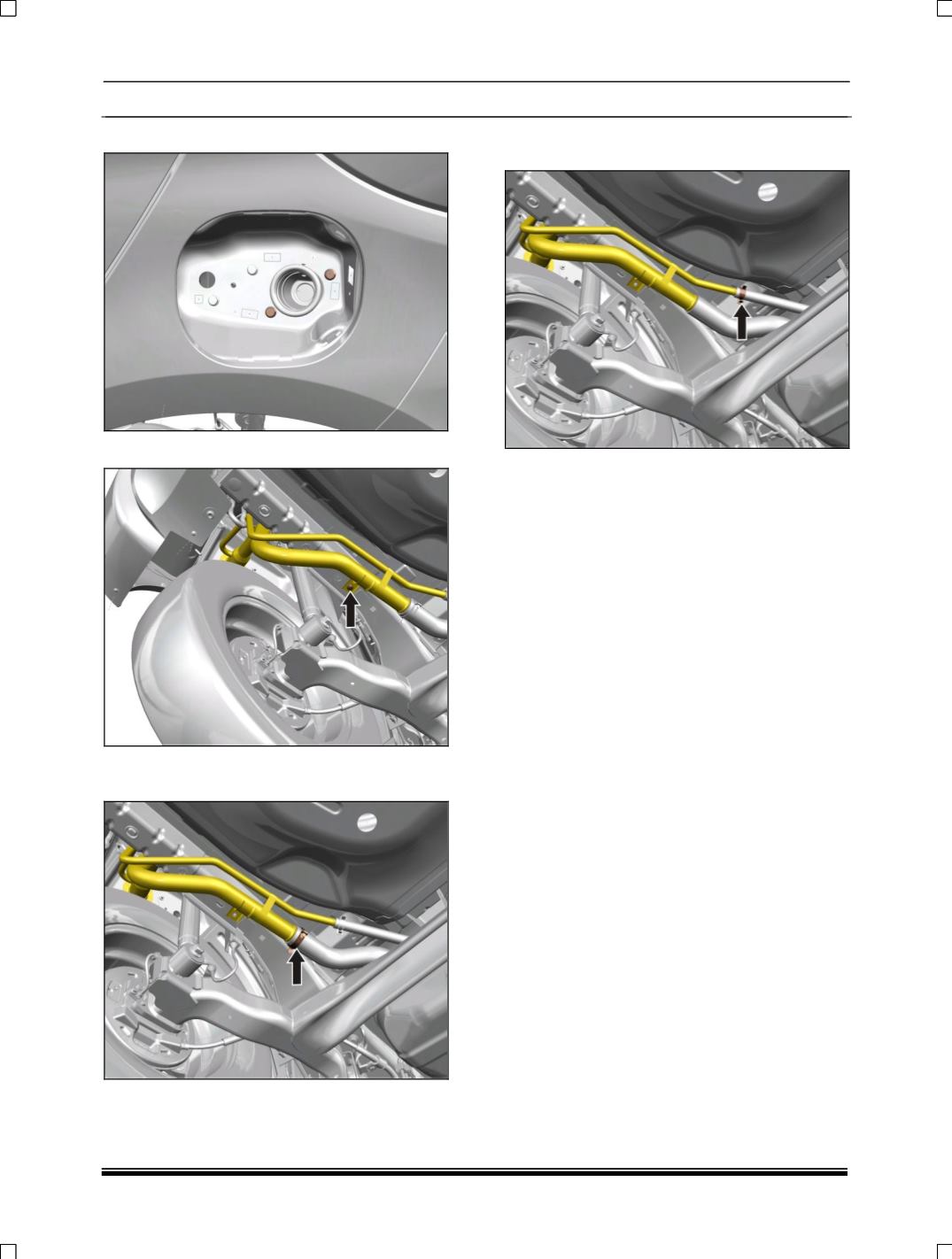

8. Remove two mounting bolts of clamping plate.

9. Remove Filler Pipe Mounting Bracket screw.

10.Remove Spring Band Clamp from Fuel Filler

Pipe and separate it from Fuel Filler Hose.

11.Remove Spring Band Clamp from Breather

Pipe and separate it from Breather Hose.

12.Pull out the fuel filler pipe assembly behind the

fuel filler housing and take it out.

FITMENT

For fitment follow reverse procedure of removal.
