54

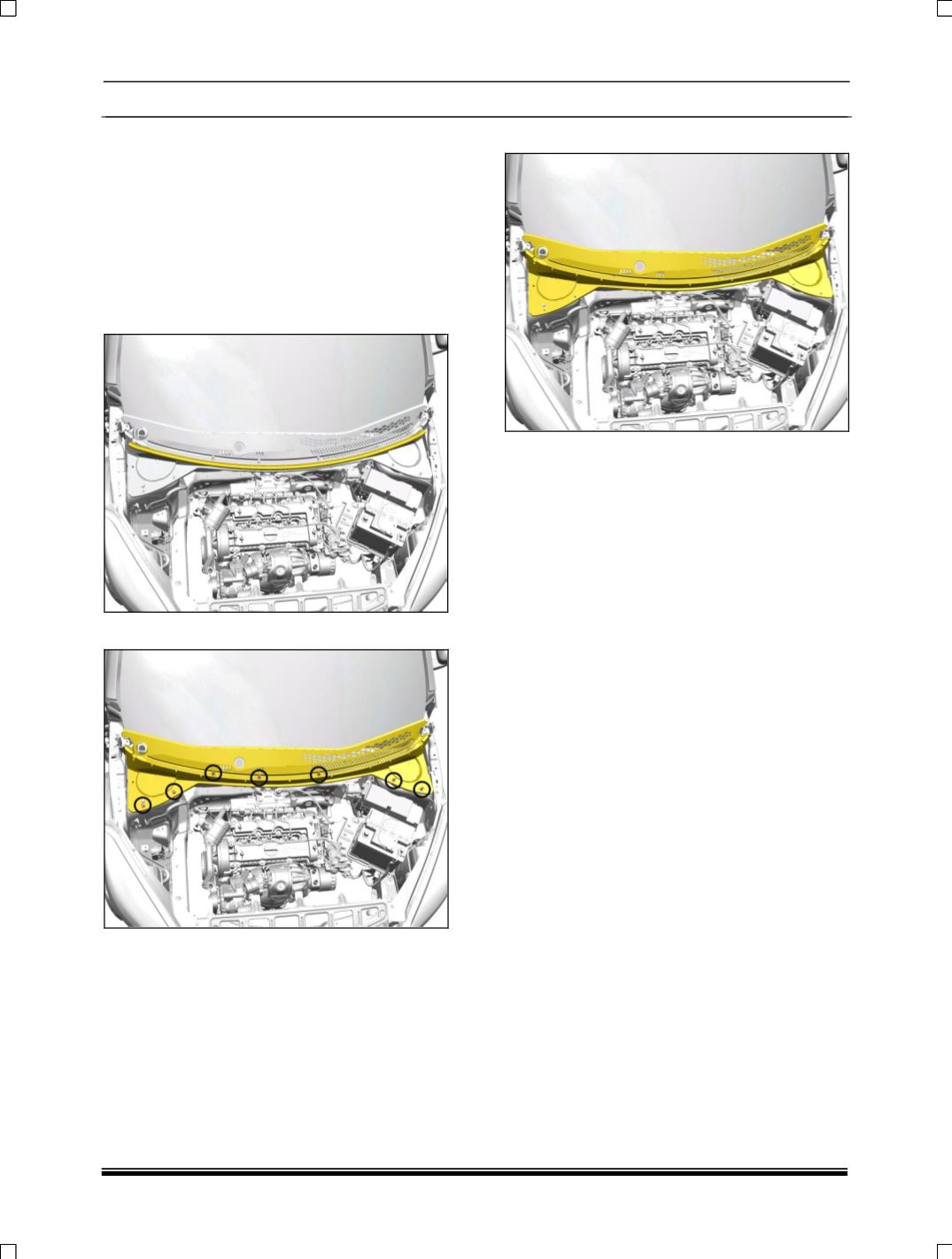

9.2.34 PLENUM COVER:

REMOVAL

1. Remove the bonnet. ( Refer R+R of Bonnet)

2. Disconnect the negative terminal of battery.

3. Remove both front wiper arm and blade

assembly. (R

efer wiper arm and blade

assembly removal process

).

4. Remove Hood Seal.

5. Pry out seven Grommet Pins.

6. Remove the Plenum Cover assembly.

FITMENT

For fitment follow reverse procedure of removal.
