9.2.42 REAR WIPER MOTOR

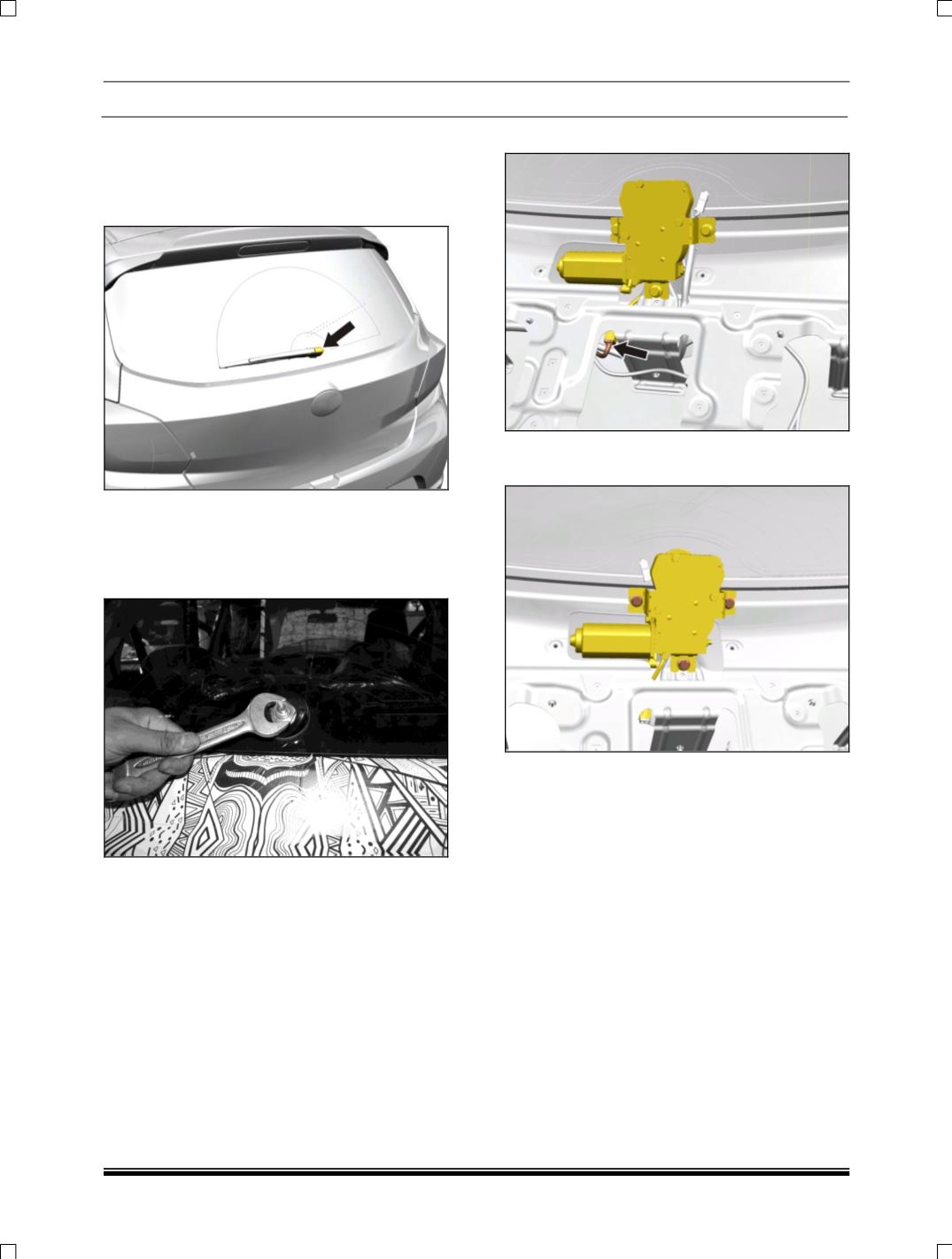

REMOVAL

1. Open the cap of rear wiper blade and arm

assembly as shown in figure.

2. Loosen and remove rear wiper blade and arm

assembly mounting fastener.

3. Remove rear wiper blade and arm assembly.

4. Remove outside wiper motor mounting nut.

5. Remove tail gate trim. (For procedure Refer

Tailgate Trim removal process.)

6. Disconnect wiper motor connector.

7. Loosen and remove three wiper motor fastener

to remove wiper motor.

FITMENT

For fitment follow reverse procedure of removal.
