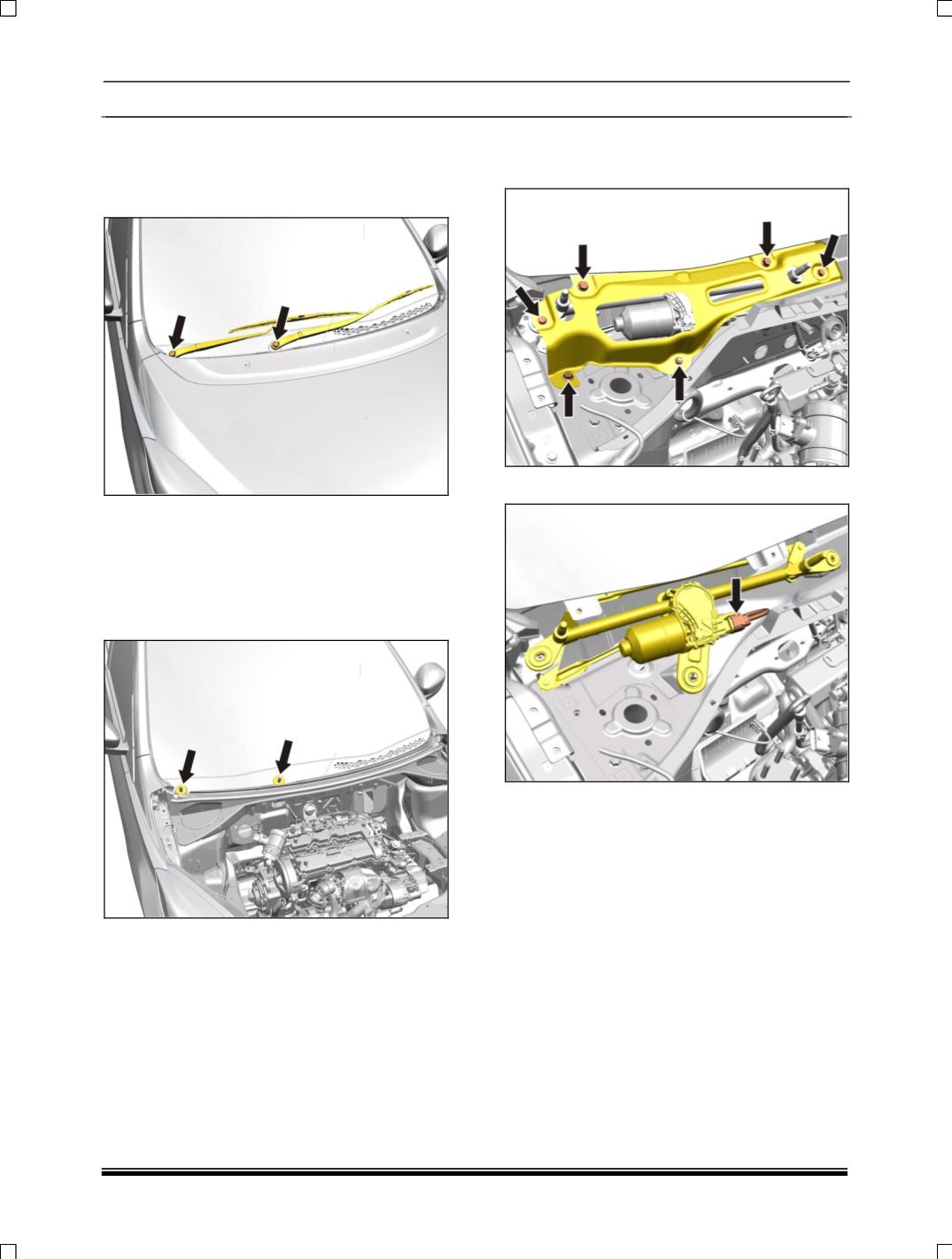

9.2.43 FRONT WIPER
REMOVAL
1. Remove Wiper Spindle Cap.
2. Loosen and remove wiper blade mounting
fastener and pull wiper arms out of wiper
spindle.
3. Lift the bonnet and fix it in the stay rod.
4. Remove plenum caps from plenum trim near
Driver and Co driver side wiper spindles.
5. Remove Plenum Cover assembly. (For
procedure refer Plenum Cover assembly
removal process.)
6. Loosen and remove screws and bolts of Wiper
mounting bracket and remove the Wiper
mounting bracket.
7. Remove the wiper motor electrical connection.
8. Remove Wiper motor assembly complete with
linkages.
FITMENT
For fitment follow reverse procedure of removal.
