8.28.14 ECU to Sensor Electrical Interface:

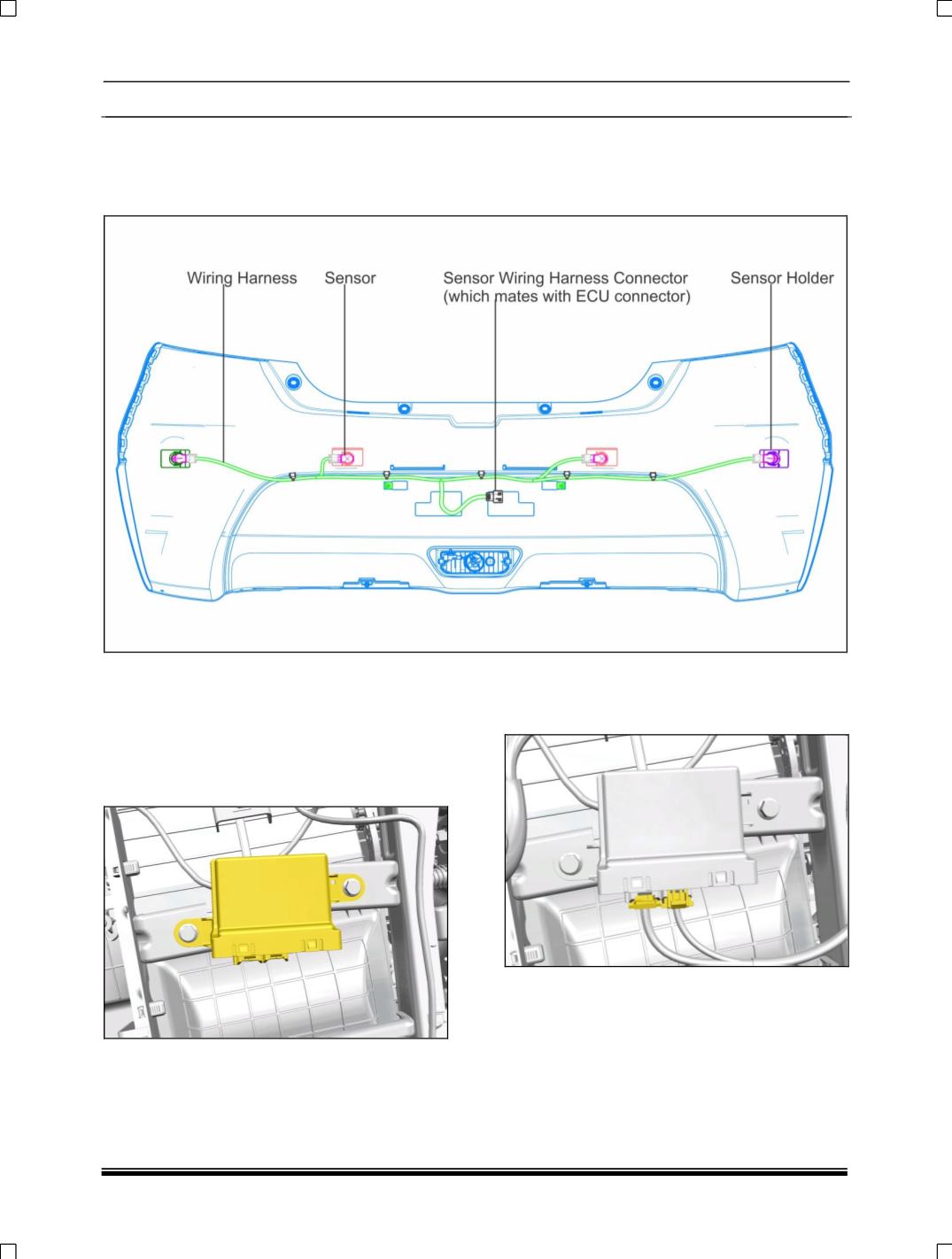

Ultrasonic sensors shall be mounted on the rear bumper and hardwired to the PDC ECU. PDC ECU shall

power and control the sensors. Both power and ground of the sensors shall be connected to the PDC ECU

itself.

In some vehicles, ‘Park Assist Button’ in facia switch bank may not available. In this case, please ignore this

chapter.

8.28.15 ECU Mounting:

In vehicle, ECU is mounted in Cock pit area,

behind the cabin fuse box.

REMOVAL

1. Remove the top console to access the PDC

controller. (Refer Body section)

2. Disconnect the electrical connections.
