8.28 REVERSE PARK ASSIST SYSTEM
8.28.1 Park Assist:
Park Assist feature will assists you to park vehicle
safely in reverse to avoid objects which can hit or
damage the rear bumper by alerting with audible
and visual information from car infotainment
system. Audible and visual information is with
respect to the proximity of the object from the rear
bumper.
Park Assist is useful while you are parking the
vehicle in congested and close parking area.

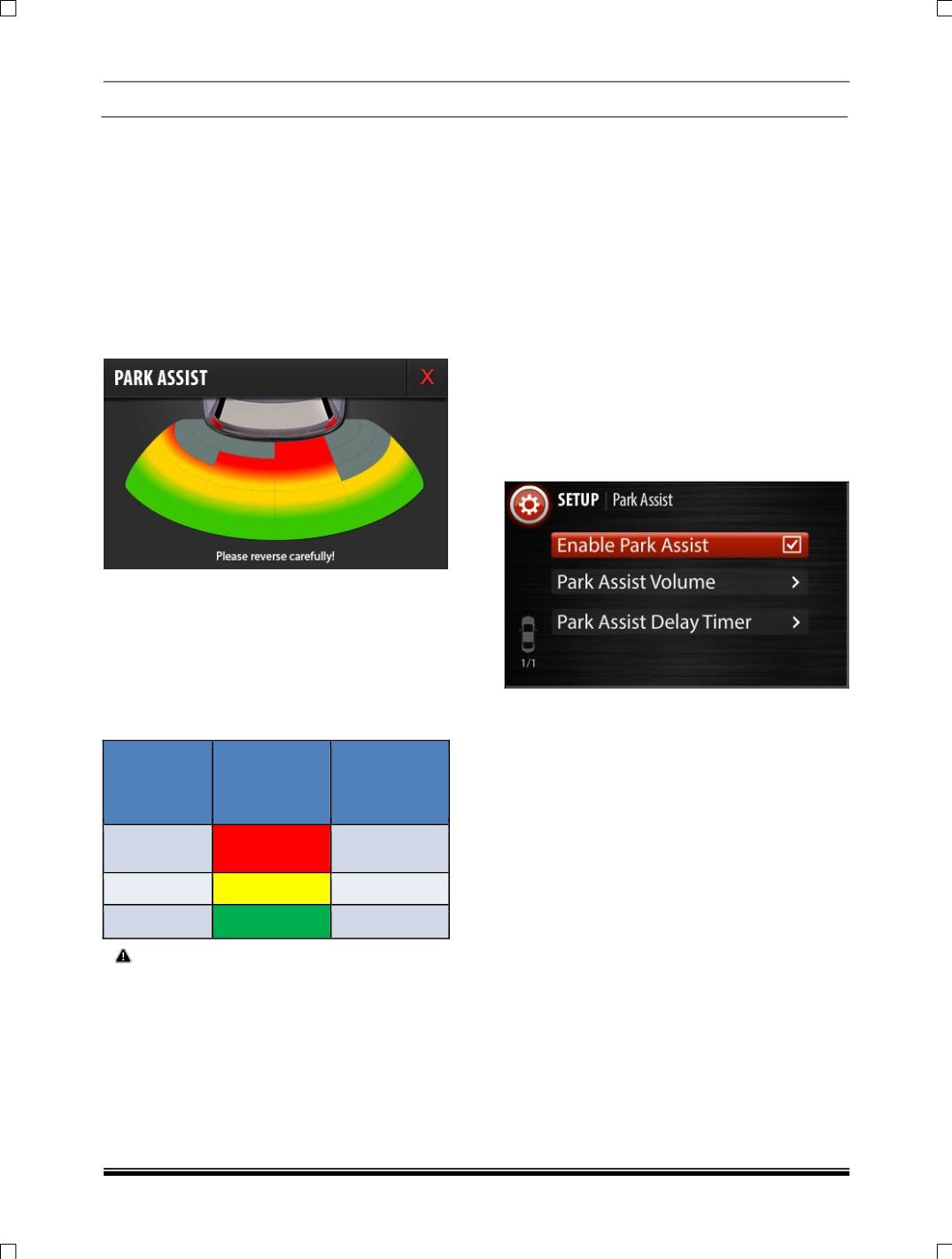

8.28.2 Park Assist functionality overview:
There are 4 ultrasonic sensors placed on the rear
bumper of the vehicle. Once Park Assist system
gets activated, sensors will start detecting the
proximity of an obstacle approximately0cm to
150cm from the rear bumper and gives the
proximity information to Infotainment music
system in the form of audio and visual information.
Distance
range from
Bumper
(in cm)
Visual
Information
Audible
Information
0-50
Red Zone
Continuous
beep
51-100
Yellow Zone
Fast beep
101-150
Green Zone
Slow beep
0-25cm obstacle detection performance is
not guaranteed due to ultrasonic sensor
technology limitation.
8.28.3 Park Assist Activation Procedure:
There are 3 ways to activate Park Assist:
Reverse gear:
Park assist feature will automatically start
functioning once you engage the reverse gear.
Park assist Button:
When you press the “Park Button” on the
Fascia switch, Park assist feature will start
functioning.
Infotainment music system touch display:
In Infotainment system user interface, press
the following button sequence to enable the
park assist feature,
Go to “Set Up -> Vehicle Setup -> Park Assist -
> Enable Park Assist “
