FUSE AND RELAY REPLACEMENT

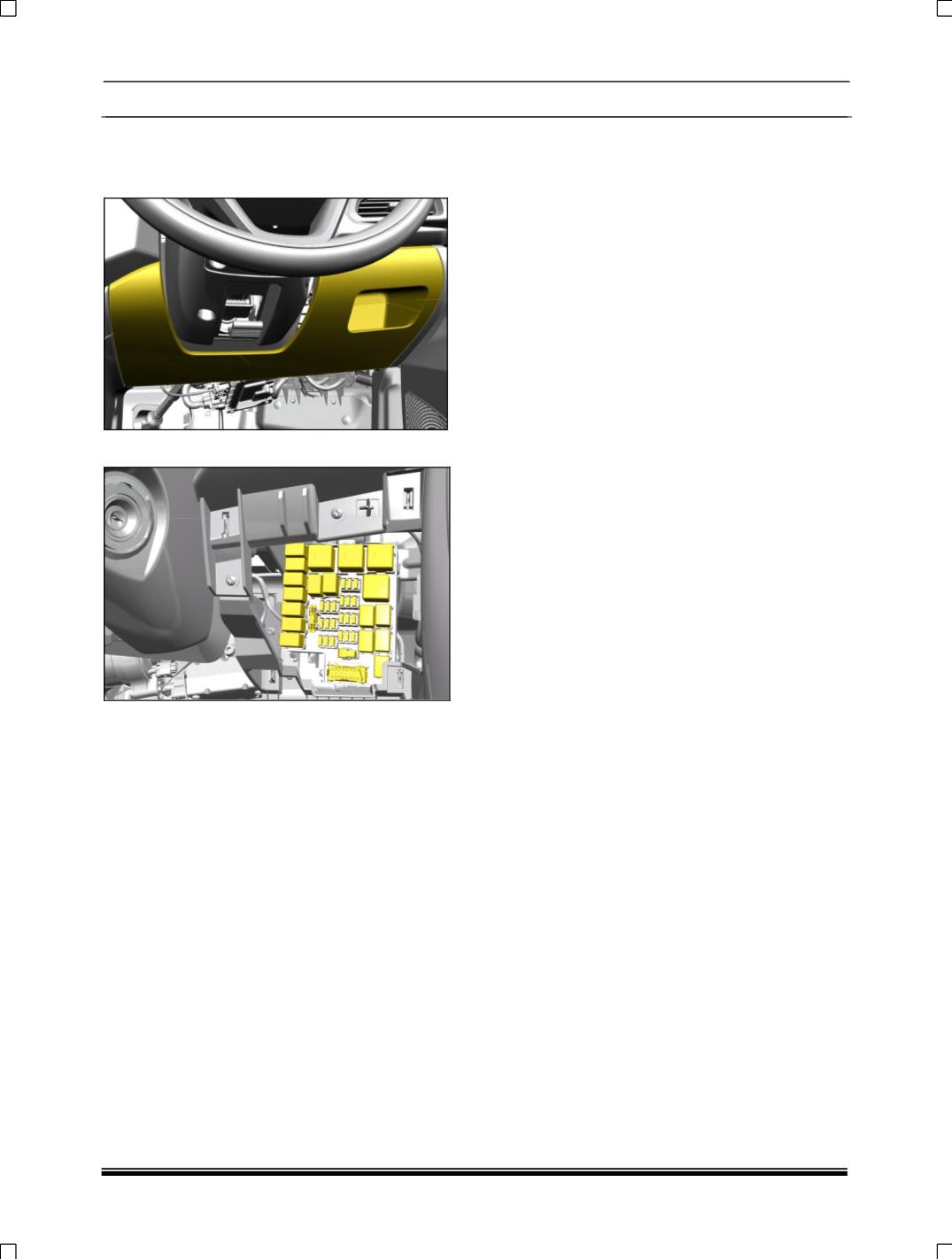

1. Remove the driver lower panel (Refer Body

section).

2. Take out the fuse and relay from its base.

3. Check the Fuse/relay.

4. If faulty replace with same ratting of fuse and

relay.

8.27.4 CIRCUIT SCHMATICS

Refer A3 Book

8.27.5 DTCs

Refer A3 Book
