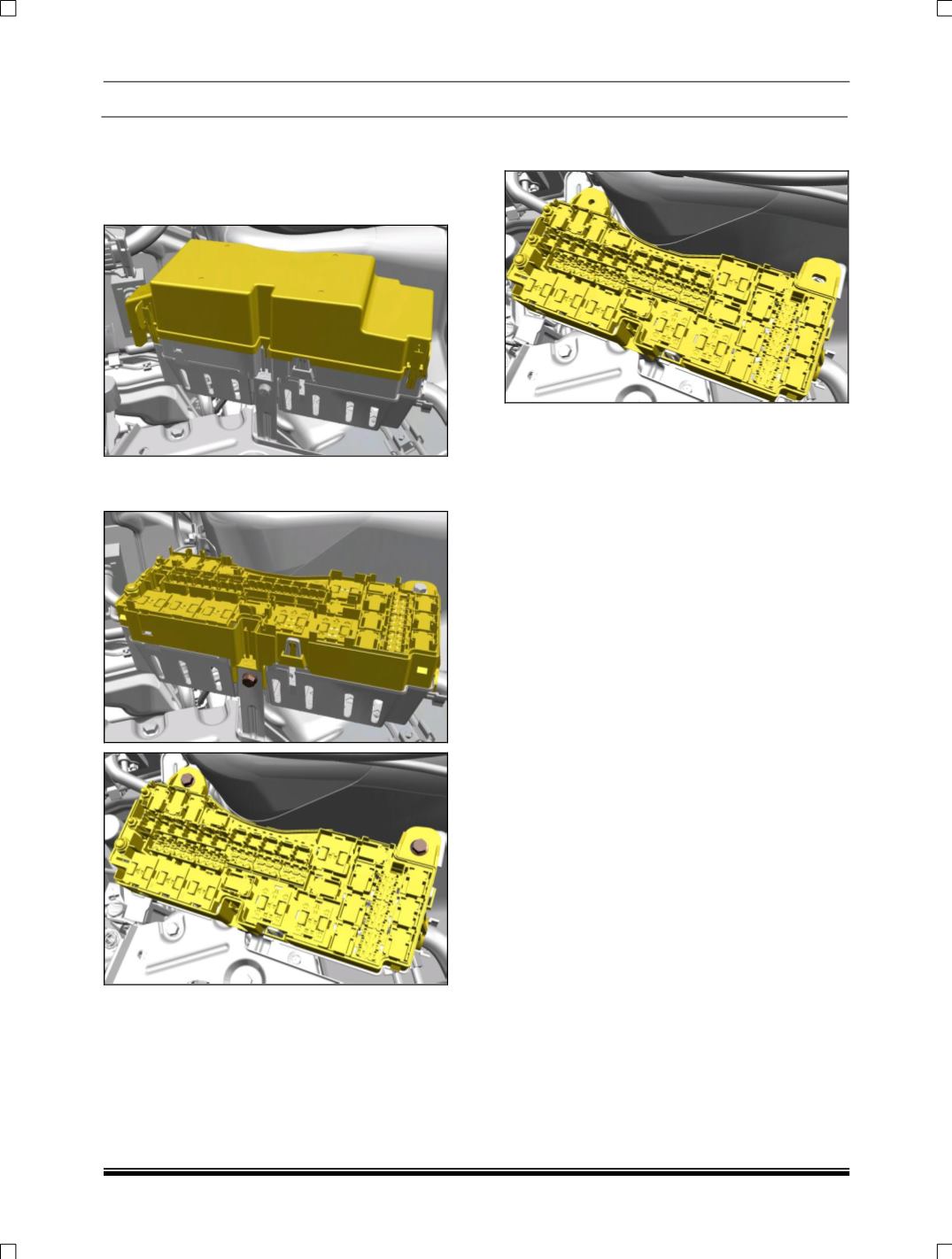

REMOVAL:

1.Remove the Battery. (Refer battery removal

process)

2.Remove the top cover of fuse box.

3.Remove the three mounting bolt of the fuse

frame assembly.

4.Gently pull out the fuse frame and disconnect all

the electrical connections.

FUSE AND RELAY REPLACEMNET:

1.Remove the cover of the fuse box.

2.Take out the fuse or relay from its base.

3.Check the Fuse/relay.

faulty replace with same ratting of fuse and

relay.
