ELECTRICAL
92
8.23 INSTRUMENT CLUSTER
FEATURES
Dynamic and monitoring information (e.g. fuel level) to which the driver should respond, is indicated in the
instrument cluster.
The Instrument Cluster has following features:
Analogue Gauge : Speedometer, Tachometer and Fuel gauge
Bar graph: Engine coolant Temperature (as a part of LCD display), Fuel gauge
LCD Display : Clock, Odometer & Trip meter (A & B)
Tell tales
Mode & Set switches

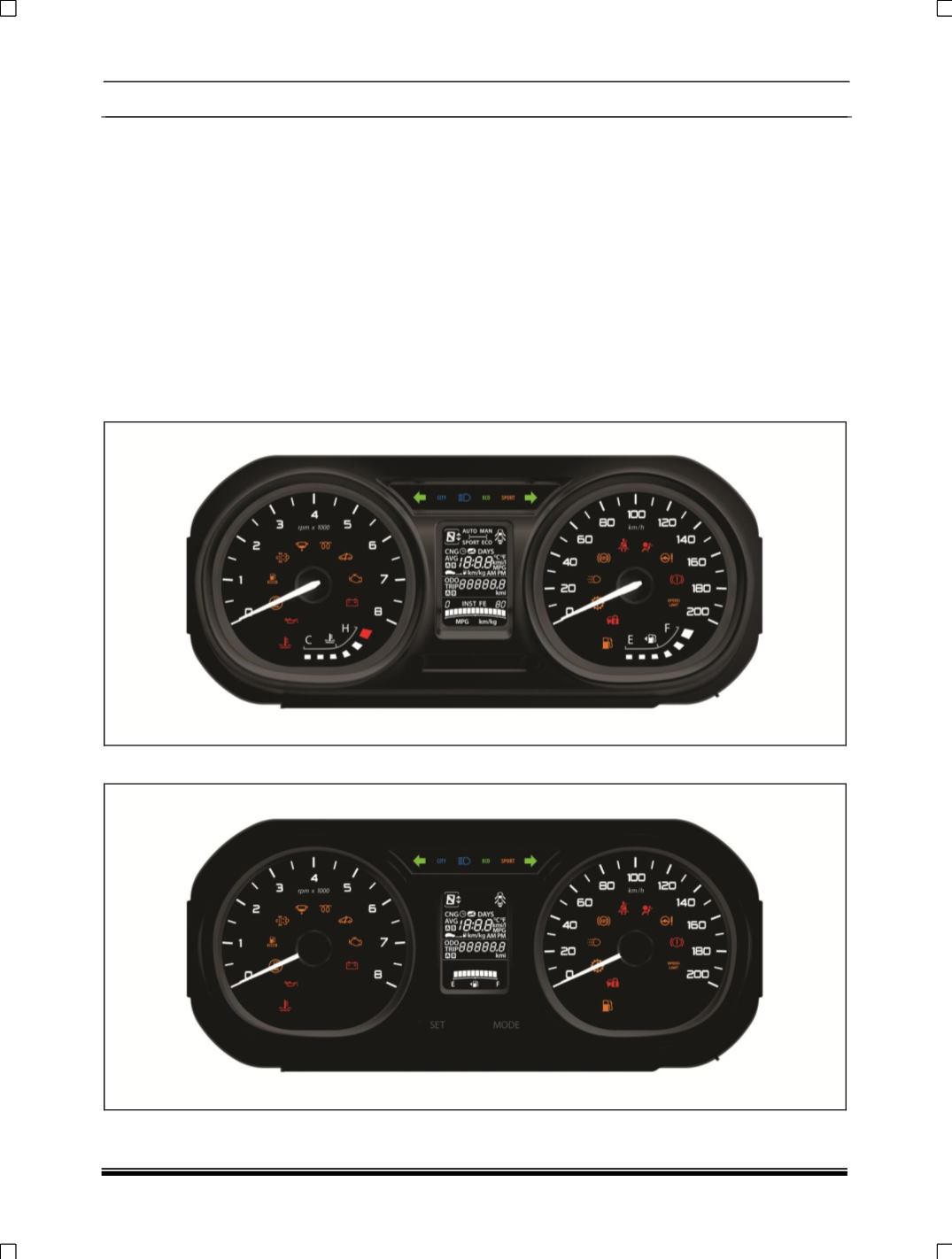

High End Instrument Cluster
Low End Instrument Cluster
