8.22 IGNITION E-KEY
An E-Key is an electronic access and
authorization system which is provided as a
standard feature on your vehicle. Vehicle is
provided with two E-Keys. Each Key is specific to
the immobilizer of vehicle.
Unlocking principle:
The transponder which is built into the ignition E-
Key carries a unique identification code. The
vehicle unlocks when the code on the E-Key
matches with the code on the Engine
Management system (EMS).
Engine Starting:
When the key is inserted and the ignition is
switched ON, all codes are communicated within
concerned components (E-Key, Immobilizer and
EMS). The engine will start only if all the codes
match.
KEY SPECIFICATION
1. Operating temperature range (with battery): -
10C to +60C.
2. Operating temperature range (without battery-
external power supply): -40 C to +85 C.
3. Storage temperature range (without battery): -
40C to +85C.
4. Remote operating voltage range: 2.53 to 3.2V.
5. LED Blinking: Normal condition - 20ms blink,
Low battery - 5blinks@10Hz after button
release
6. Force required opening Battery Cover from
RKE: Min. 30 N.
7. Remote power @ 3 meter from Antenna: -
12dBm.
8. Carrier frequency with deviation: 433.92 MHz
+- 75 KHz.

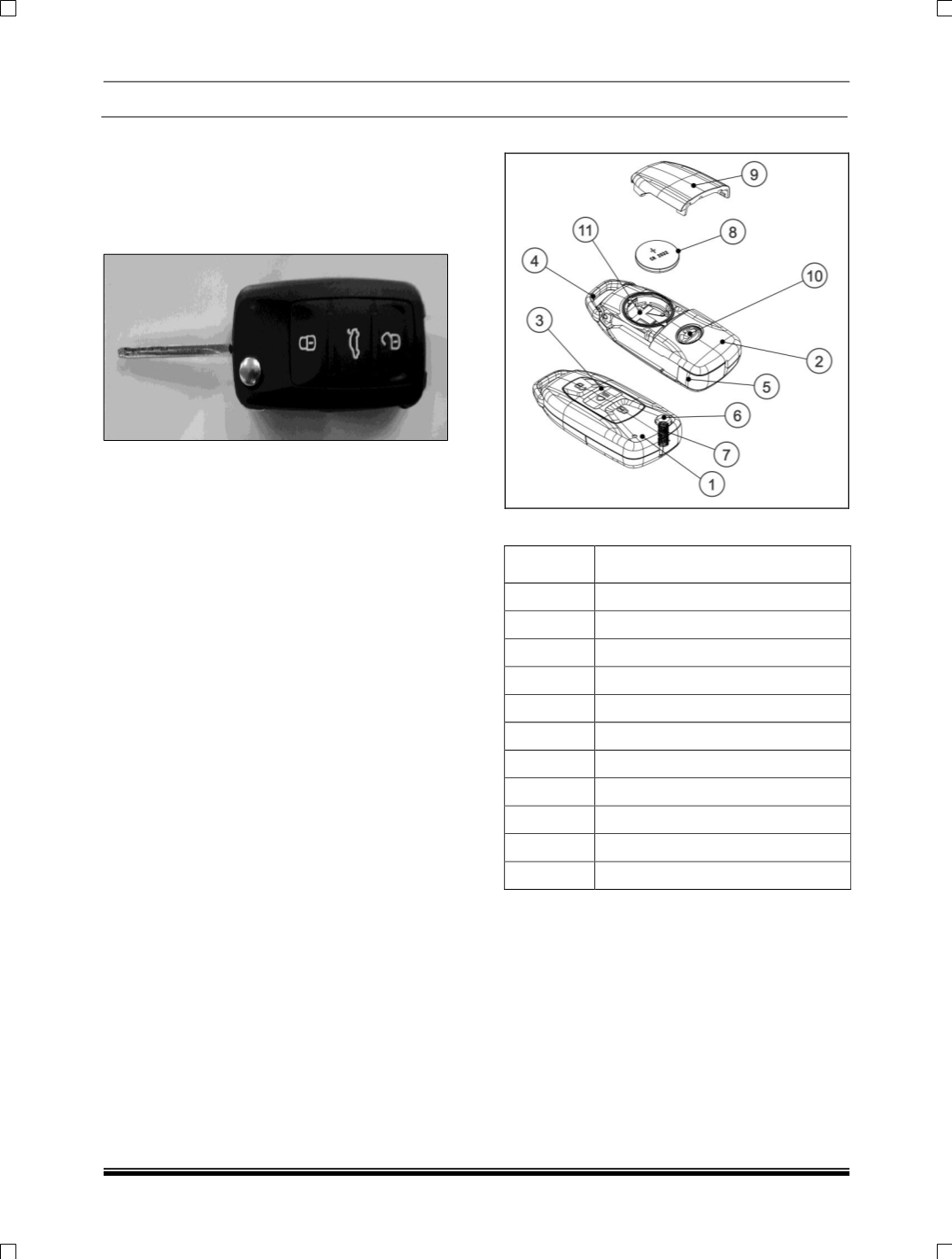

EXPLODED VIEW E-KEY
COMPONENTS TABLE
. PART NAME
1 Upper Housing
2 Lower Housing
3 Button Cover
4 Key Ring
5 Turn Bearing
6 Push Button
7 Spring
8 Battery(CR 2032)
9 Battery Cover
10 Emblem
11 PCBA
