ELECTRICAL

88

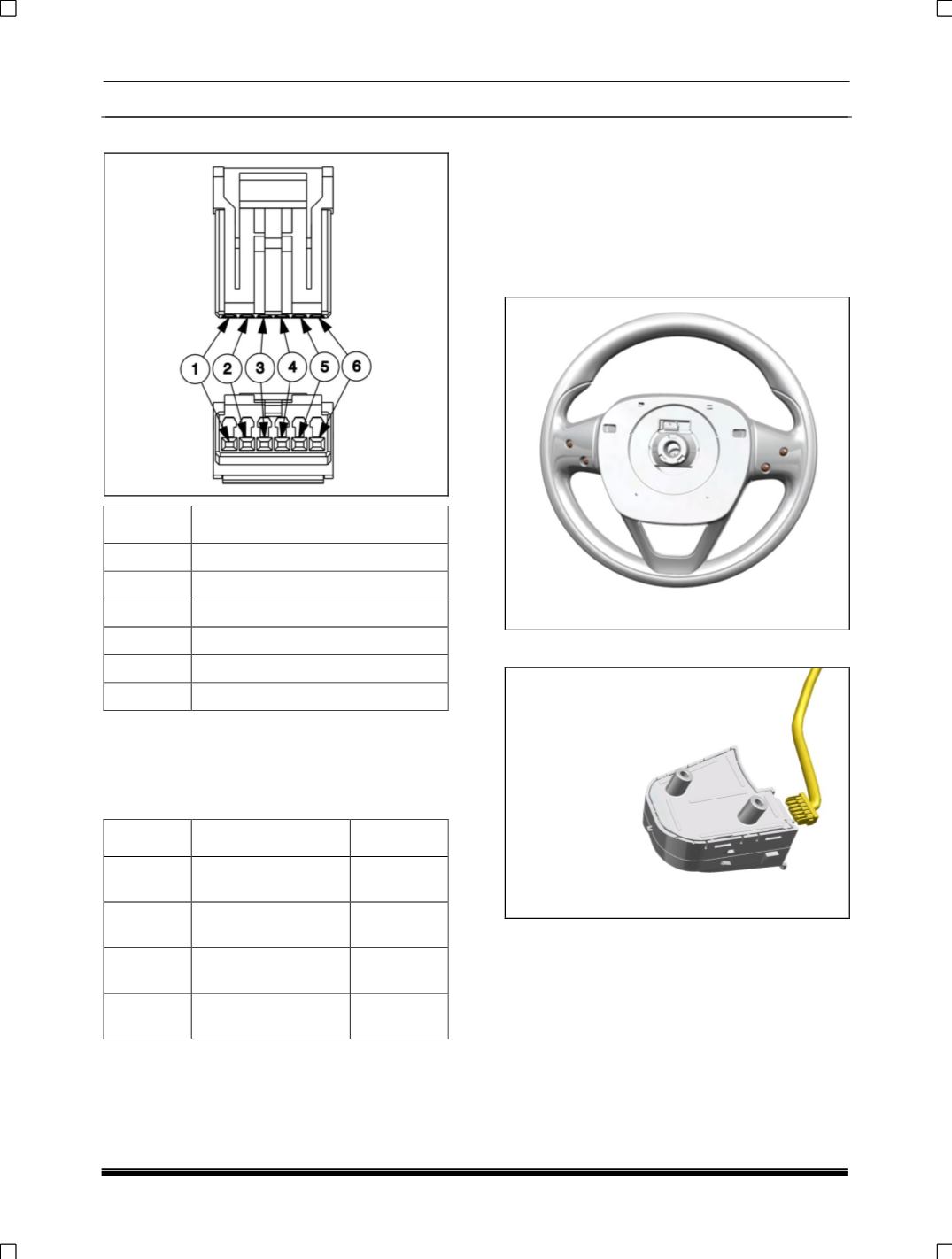

Switch main connector

PIN

DETAIL

1

ILL +

2

ILL -

3

Blank

4

Blank

5

Infotainment -

6

Infotainment +

FUNCTION:

Steering wheel switches are used to control the

music system operations.

For details ref below table

SWITCH

FUNCTION

POSITION

SW1

SRC & SEEK UP &

DOWN

LH

SW2

MODE/PHONE

REJECT/MUTE

LH

SW3

VOLUME UP &

DOWN

LH

SW4

PHONE RECEIVE &

PTT

RH

LOCATION:

It is located on the steering wheel.

REMOVAL:

1. Remove steering wheel. Refer “Removal &

Refitment of steering wheel" from Steering

Section

2. Remove the back cover of the steering wheel.

3. Remove electrical connections.

4. Take out the switches.

INSTALLATION:

1. Locate the switches on the steering wheel.

2. Fit the bottom cover of steering wheel.

3. Tight the mounting screws of both the switches.

Tightening torque: 2.0 ± 0.5 Nm

4. Fit the steering wheel.
