ExtCo Mech Audio In_R
C12
ExtCo Mech Audio InCom
C13
USB1_5V
C14
Dock_G
C15
USB1GND
C16
Aux In Shield
C17
Aux In Detect
C18
Aux In Com
C19
Aux In_R
C20
Aux In_L

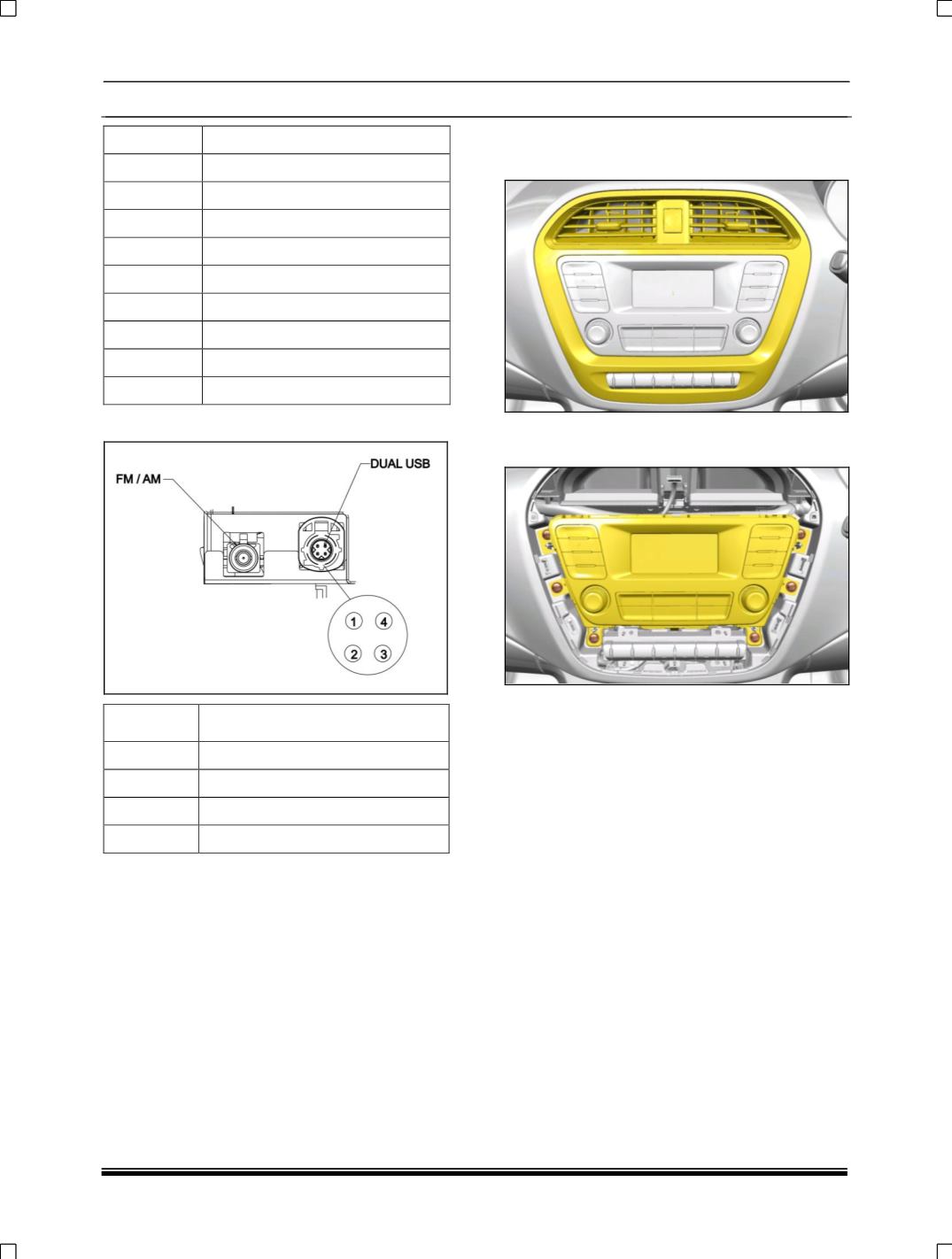

Connector B details:
PIN
DESCRIPTION
1
USB2_D-
2
USB1_D-
3
USB2_D+
4
USB1_D+
SPECIFICATIONS:
Operating voltage: 9-16V
Test voltage: 13.5V
Operating current: 1.5A 4×0.5@4 ohm load
Maximum current: 15A
Operating temperature: -30ºC - 70ºC
Storage temperature: -40ºC - 90ºC
Leakage current: 0.6mA max at 13.5V, 25ºC
REMOVAL
1. Carefully pry out fascia switch cover assembly.
2. Remove the 6 mounting screw and gently
pullout the unit.
3. Disconnect all the electrical connections.
REFITMENT
For refitment follow the procedure in reverse.
