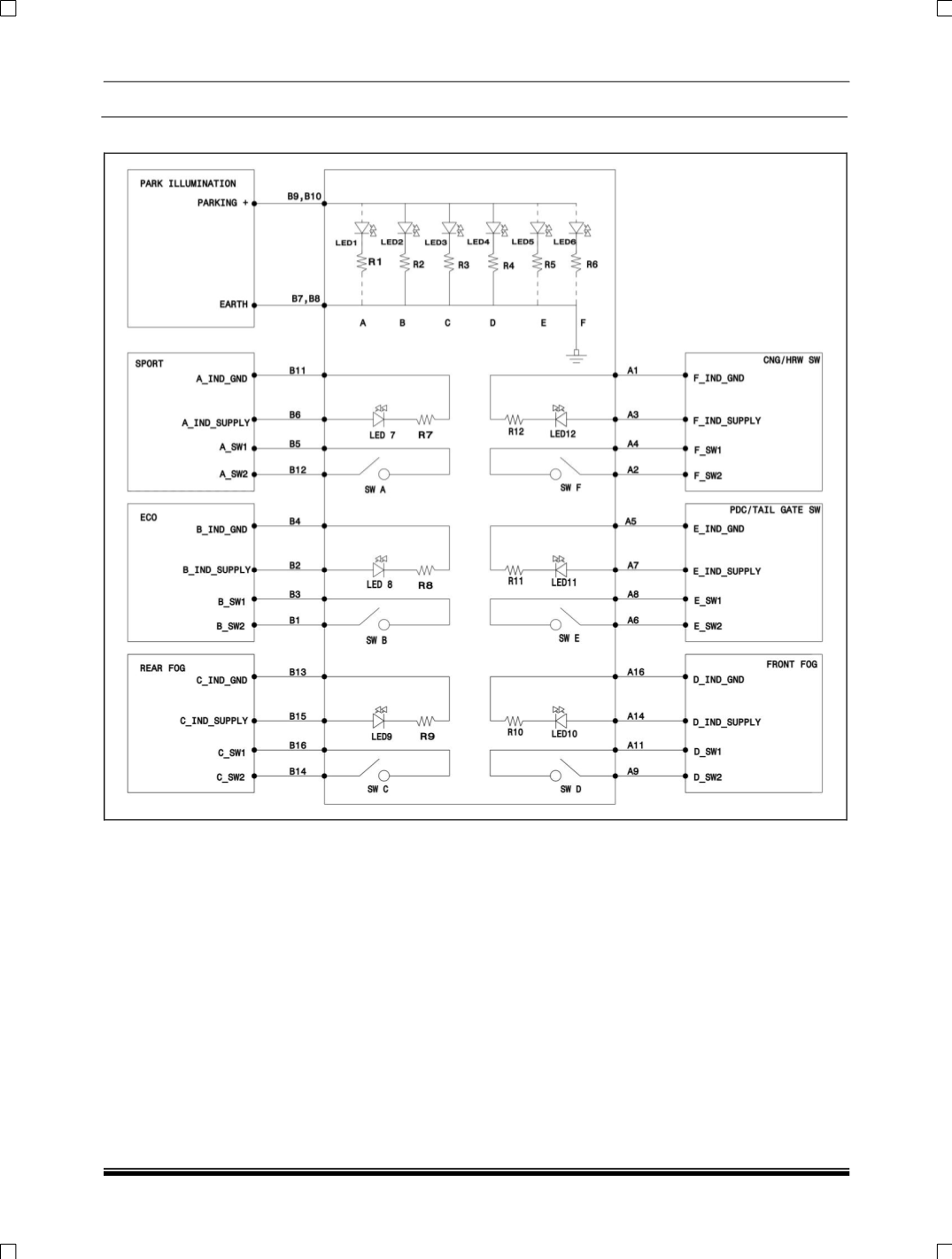

CONNECTION DIAGRAM OF FACIA SWITCH
SPECIFICATIONS:
Operating temperature: -30ºC-85ºC
Storage temperature: -40 ºC-95ºC
Vehicle electrical system voltage: 12V DC
Operating voltage: 9-15V DC
Testing voltage: 19.8±0.8V DC
Voltage drop: 20mV MAX
Insulation resistance: 100M ohm at 100VDC
Wetting current: 10mA
Contact bounce: on engagement of switch contact bounce duration should be less than 20m sec.
