ELECTRICAL
69

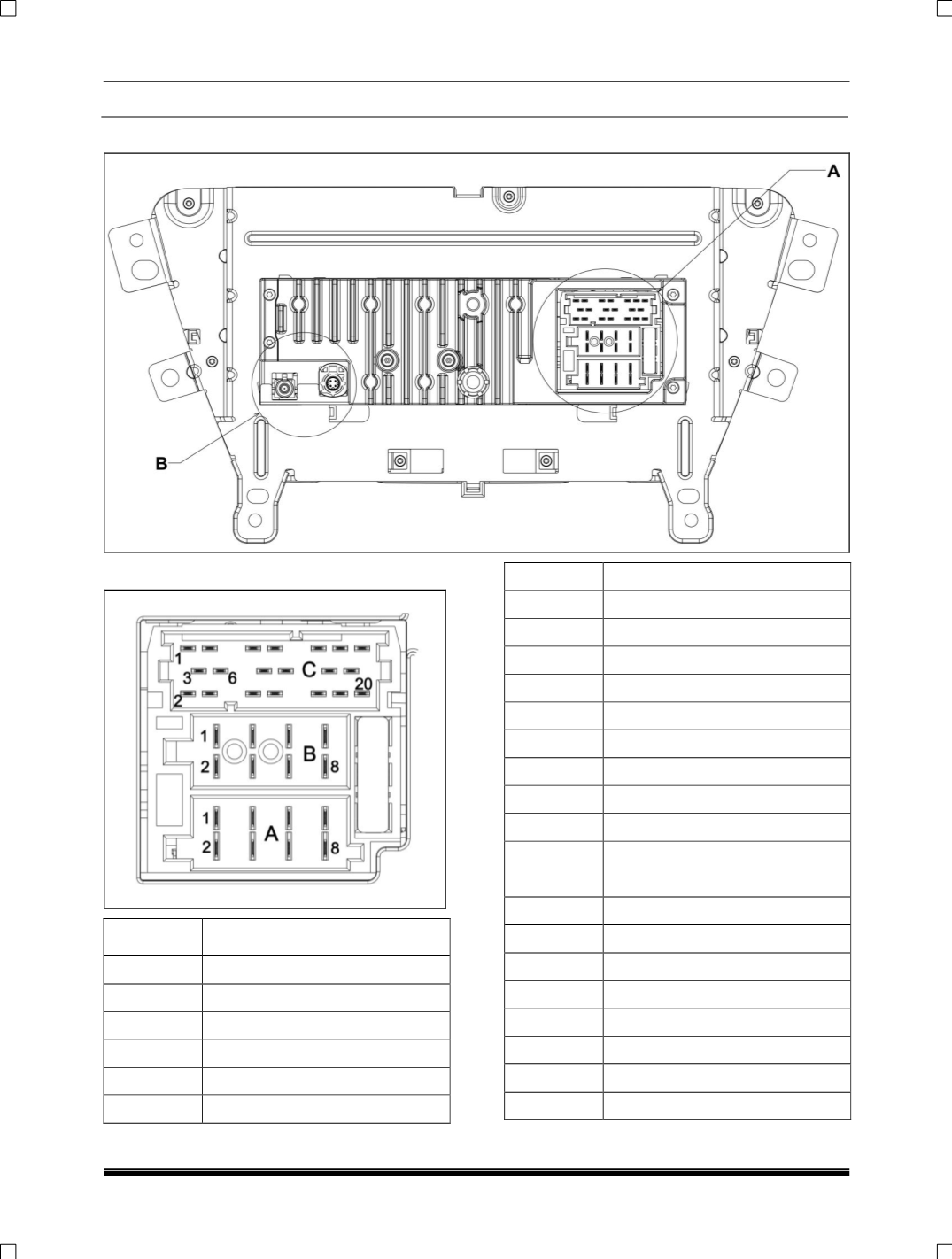

PINOUT DETAILS:
Connector A details:
PIN
DESCRIPTION
A1
Anti-theft enable
A2
NC
A3
Hard wake up2
A4
Hard wake up1
A5
Ignition
A6
Key In
A7
Battery
A8
GND
B1
Speaker rear RH +
B2
Speaker rear RH -
B3
Speaker front RH +
B4
Speaker front RH -
B5
Speaker front LH +
B6
Speaker front LH -
B7
Speaker rear LH +
B8
Speaker rear LH -
C1
Mic-
C2
CAN1_H
C3
NC
C4
Mic+
C5
CAN1_L
C6
NC
C7
SWcSignal
C8
ExtCo Mech Audio In Shield_L
C9
ExtCo Mech Audio In Shield
C10
SWcGND
