695 / 1002
ELECTRICAL
74

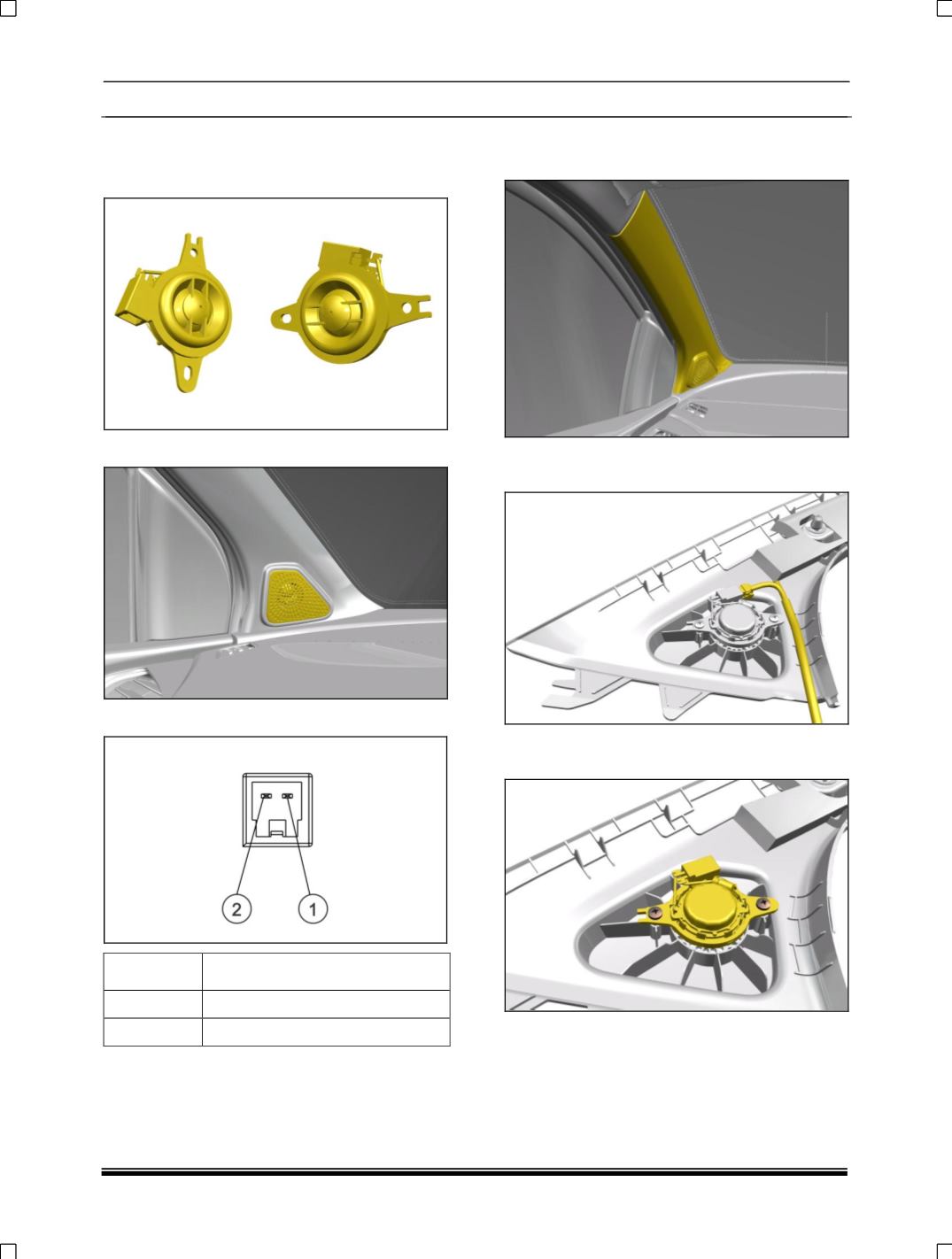

8.18.3 TWEETER
Tweeter is a loudspeaker designed to produce
high frequencies.
LOCATION:
It is fitted on A-pillar panel.
PINOUT DETAILS
PIN
DESCRIPTION
1
-ve
2
+ve
REMOVAL:
1. Remove the A-pillar trim. (
Refer Body section
)
2. Disconnect the electrical connection of
tweeter.
3. Loosen and remove the two mounting screws
of tweeter.
REFITMENT
For refitment follow the procedure in reverse.
