TIAGO

697 / 1002

ELECTRICAL
76

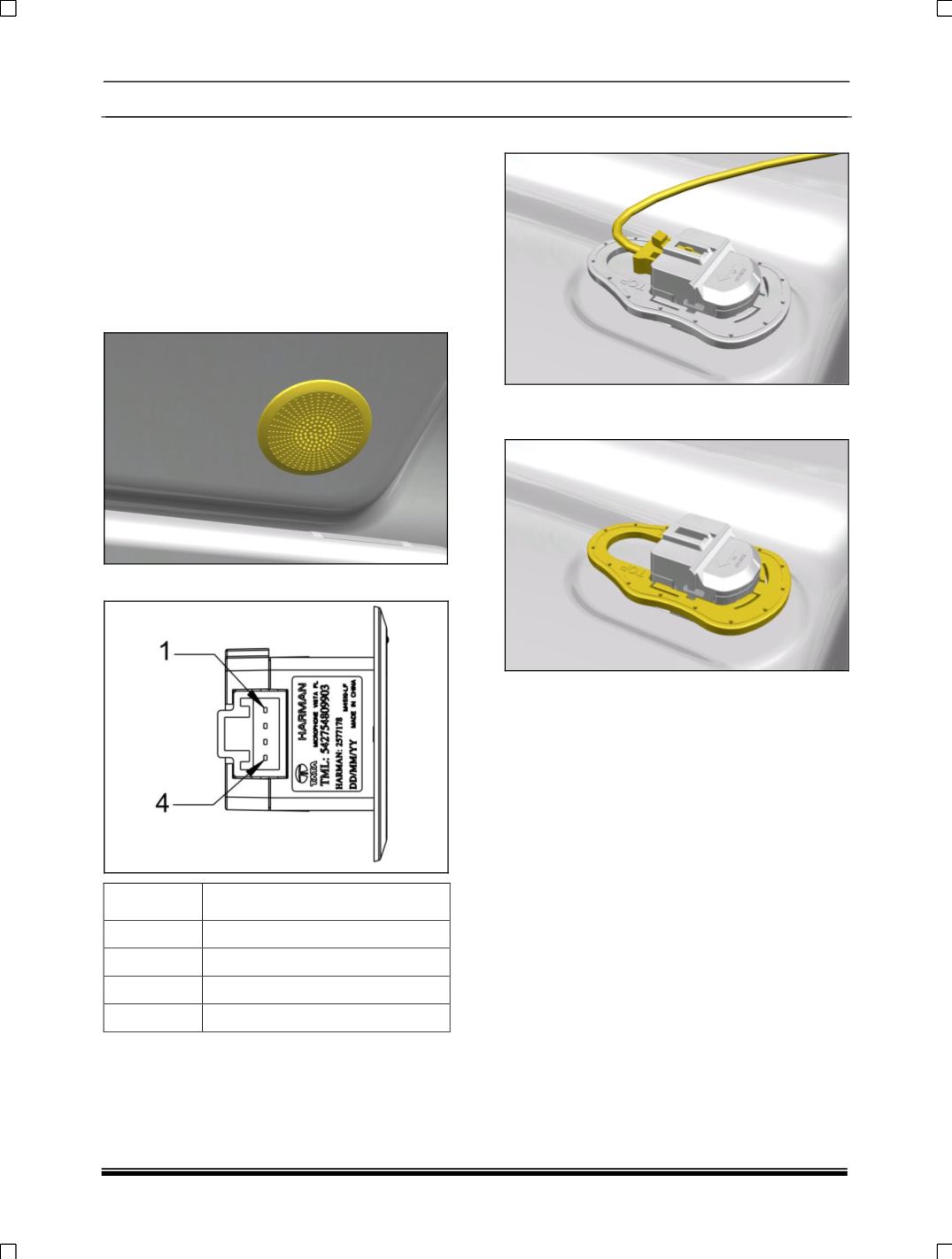

8.18.5 MICROPHONE
A microphone is an acoustic-to-electric transducer
or sensor that converts sound into an electrical
signal.
The microphone helps communicate calls through
the infotainment system. In some models provision
is given for fitment.
LOCATION
It is fitted above the driver’s seat on the headlining
PINOUT DETAILS
PIN DESCRIPTION
1 MIC -
2 MIC +
3 NC
4 NC
REMOVAL:
1. Remove the head lining assembly (Refer Body
section)
2. Disconnect the electrical connection.
3. Remove the locking ring and take out the
microphone.
