ELECTRICAL
67

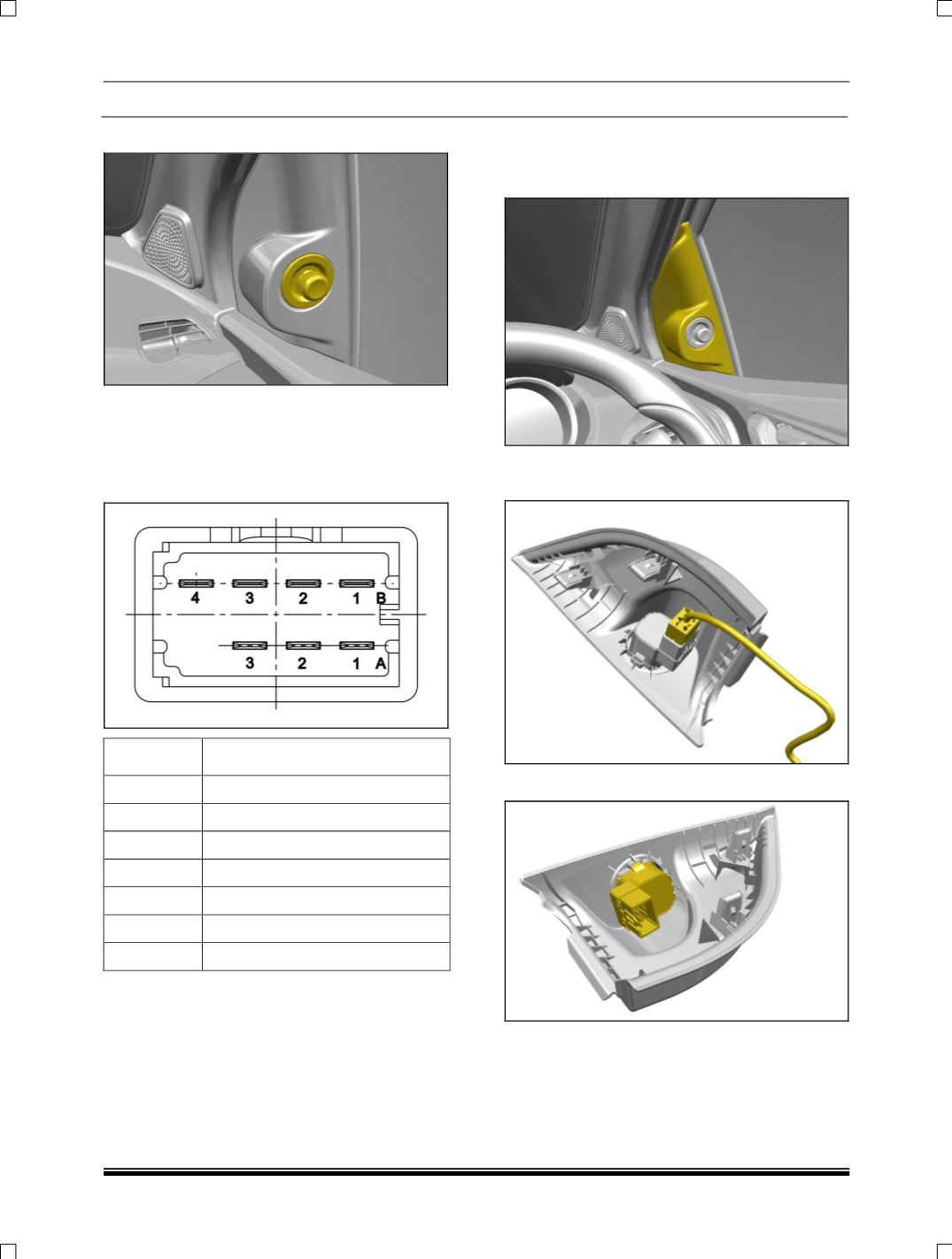

8.17 MIRROR SWITCH
For adjusting the mirror, first select the RH or LH
side mirror using selector switch. Then push the
appropriate edge of adjustment switch to move
the mirror left, right, up & down.
PINOUT DETAILS
PIN
DESCRIPTION
1A
2A
ACC
3A
1B
2B
3B
GND
4B
REMOVAL:
1.Pry out the Mirror adjustment switch cover from
cheater assembly.
2.Disconnect the electrical connection of mirror
adjustment switch.
3.Take out the mirror adjustment switch
.
REFITMENT:
1.Connect the electrical connection of mirror
adjustment switch.
2.Fit the mirror adjustment switch
.(snap fitted)
