STEERING
12

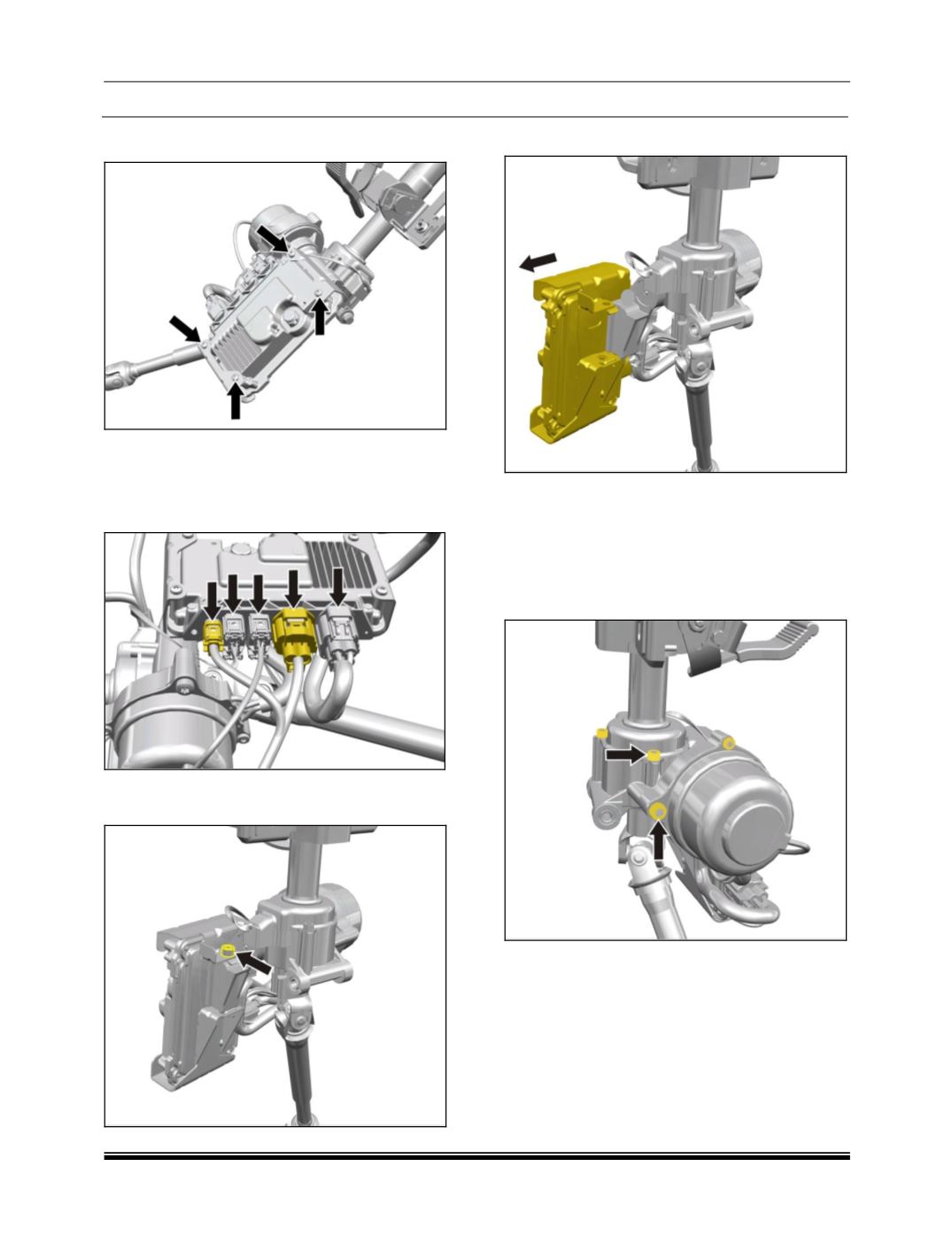

12.Remove the mounting screw of ECU.
13.Take out the ECU.
ECU Removal along with bracket
1. Disconnect the electrical connector’s from the
ECU
2. Remove the ECU mounting bracket Allen
screw provided behind the ECU
3. Slide the ECU along with bracket sideways.
REFITMENT:
For assembly follow reverse procedure of
removal.
NOTE:
Do not open the servo unit for any repair
because it is precisely calibrated.
